Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany
seiltechnik@huck.net • www.huck.net

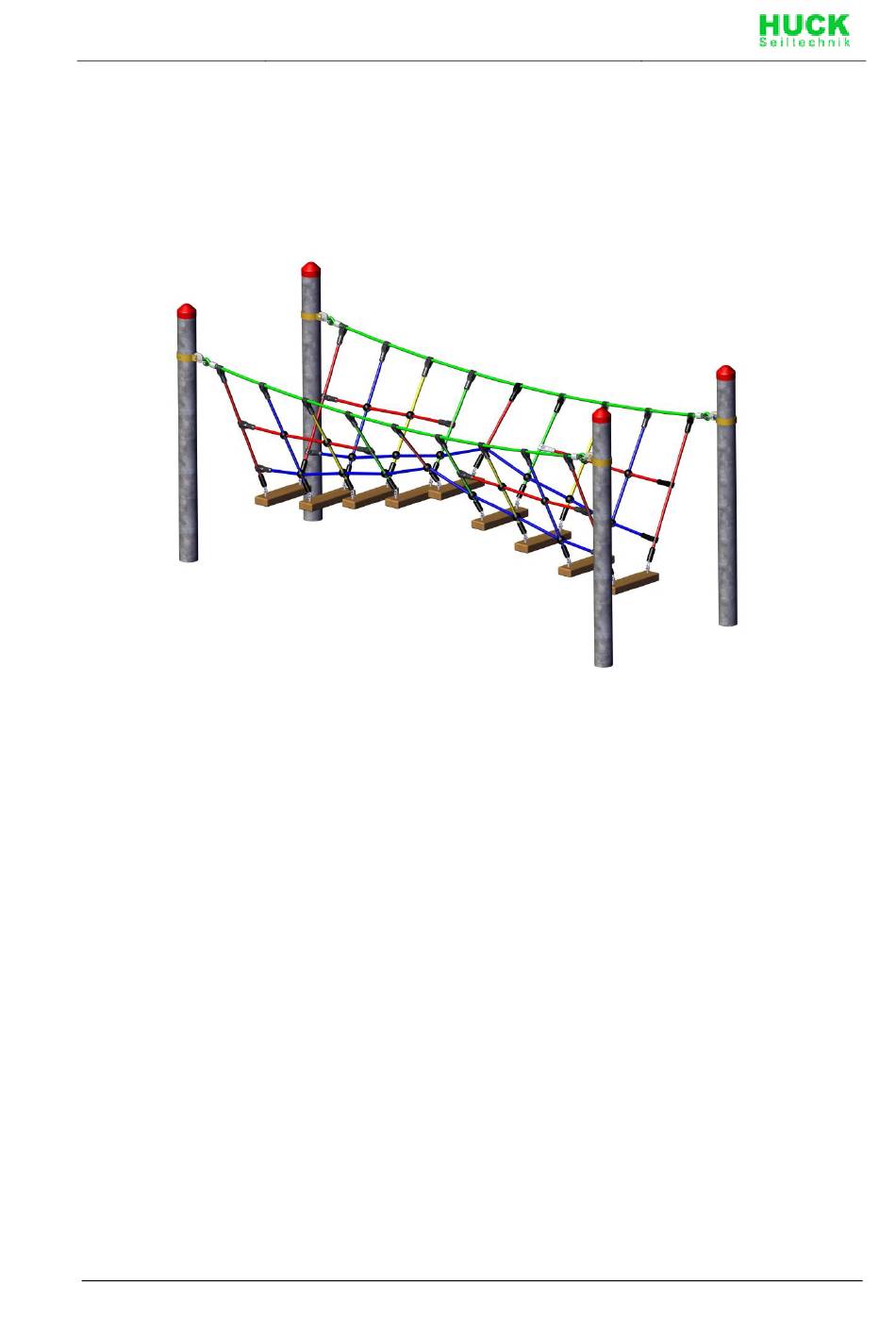

A Assembly instructions Adventure Bridge
with wooden rungs,
Art. No. 4959-20
Operator: _____________________________________________________
Location: ______________________________________________________
Attention!
The distance between the center of the poles is 3.00 x 1.00m.
In case of an eventual add-on of any other rope-parcours elements
(e.g. "Haiger", "Dillenburg", "Fun Parcours", etc.) the different
distance between the poles has to be considered!
\\CAD1\Standard\4959-20\Montageanleitungen\Abenteuerbruecke_mit_Holzsteg_4959_20_ST_B_L_1_GBR.doc
- 1 -
Advertisement
Table of Contents
Related Manuals for HUCK Seiltechnik 4959-20
Summary of Contents for HUCK Seiltechnik 4959-20
-
Page 1: A Assembly Instructions Adventure Bridge With Wooden Rungs, Art. No. 4959-20
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net A Assembly instructions Adventure Bridge with wooden rungs, Art. No. 4959-20 Operator: _____________________________________________________ Location: ______________________________________________________ Attention! The distance between the center of the poles is 3.00 x 1.00m. In case of an eventual add-on of any other rope-parcours elements (e.g. - Page 2 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Revision history Revision 1 – 2004- 04-28 The first released version Assembly instructions Revision 8 – 2020-06-17 PM Mindestraum geändert nach Tabelle All rights reserved © Copyright 2003 Huck Seiltechnik GmbH - 2 - \\CAD1\Standard\4959-20\Montageanleitungen\Abenteuerbruecke_mit_Holzsteg_4959_20_ST_B_L_1_GBR.doc...
-
Page 3: Table Of Contents
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Contents Assembly instructions Adventure Bridge with wooden rungs, Art. No. 4959-20 ....1 Introduction Assembling ....................... 4 Datasheet Adventure bridge with wooden rungs, article 4959-20 ..........6 Delivery contents (parts list with part numbers) ................. 8 Abkürzungen .......................... -
Page 4: Introduction Assembling
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net 1 Introduction Assembling General information This equipment should be installed, inspected, maintained and operated in accordance with EN1176-7 guidelines. Before installation work commences, please check that you have all of the equipment and fixation components in the parts list provided (see Tables 3-1 and 3-2). - Page 5 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Drawings / Views All optical drawings are showing only the measurements/dimensions and are no mandatory technical views of the complete item. We reserve the right to change technical details of our articles which are serving for the further development of our articles and are reasonable for the customer.
-
Page 6: Datasheet Adventure Bridge With Wooden Rungs, Article 4959-20
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Datasheet Adventure bridge with wooden rungs, article 4959-20 Component zone: 3100 x 1110 mm Safety zone: 5600 x 3360 mm height of equipment: 1440 mm height of fall: 600 mm Fall protection area: 17 m²... - Page 7 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Round off foundation edges (min.R = 100 mm)! Sizes of fundations are “4-5” (natural ground). Soil class 4: soft to medium plasticity, interleave bound, with minor por- tion of stone (portion < 30% with bigger diameter of 63 mm grain size).
-
Page 8: Delivery Contents (Parts List With Part Numbers)
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Delivery contents (parts list with part numbers) In words Table 3-1: Delivery contents, in words Pos. Quantity Element / Description Size O.K. Missing Ø 102 mm / Steel post lg. -
Page 9: Table 3-2: Delivery Contents, In Symbols
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net In symbols Table 3-2: Delivery contents, in symbols Pos. Quantity Symbol Ø 102 mm / lg. 2400 mm Ø 102 mm Ø 102 mm 5,5 x 25 mm M10 x 150 mm Lg. -
Page 10: Abkürzungen
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Abkürzungen The legally prescribed setting times must be observed! Achsmaß C25/30 concrete (for foundations) Ground, fall protection etc. (ground) 100 mm thick Fall protection Drainage layer Gehw. Pl. Pavement slab (ca. 300 x 300 mm) /... -
Page 11: Erection Instructions
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Erection instructions \\CAD1\Standard\4959-20\Montageanleitungen\Abenteuerbruecke_mit_Holzsteg_4959_20_ST_B_L_1_GBR.doc - 11 -... - Page 12 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net - 12 - \\CAD1\Standard\4959-20\Montageanleitungen\Abenteuerbruecke_mit_Holzsteg_4959_20_ST_B_L_1_GBR.doc...
- Page 13 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net \\CAD1\Standard\4959-20\Montageanleitungen\Abenteuerbruecke_mit_Holzsteg_4959_20_ST_B_L_1_GBR.doc - 13 -...
-
Page 14: Post Installation Checks
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Post installation checks If the equipment has not been installed safely, you must ensure that the public is prevented from using it. Marking filler depth • Labelling the posts to show the depth of material provided as fall protection (i.e. -
Page 15: B Maintenance Instructions Adventure Bridge With Wooden Rungs, Art.-No. 4959-20
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net B Maintenance instructions Adventure Bridge with wooden rungs, Art.-No. 4959-20 \\CAD1\Standard\4959-20\Montageanleitungen\Abenteuerbruecke_mit_Holzsteg_4959_20_ST_B_L_1_GBR.doc - 15 -... -
Page 16: Introduction Maintenance
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Introduction Maintenance General informations This equipment should be installed, inspected, maintained and operated in ac- cordance with EN 1176-7 guidelines. Please note: Providing any necessary repairs are carried out, a piece of play equipment that is inspected regularly cannot become so damaged that it is dangerous. -
Page 17: General Maintenance Information
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net General maintenance information Maintenance intervals Maintenance intervals are based on average use. Please note that more fre- quent inspections and/or maintenance are required if the play equipment is subject to intensive use. - Page 18 Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net 8.10 Faults Demeges must be repaired as soon as they are detected. If serious defects that affect the safetyness cannot be repaired straight away, the playground item must be blocked with immediate effect.
-
Page 19: Maintenance Timetable
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Maintenance timetable Special advices 9.1.1 Maintenance interval We strongly advise you to carry out inspections and maintenance work within the specified periods as use of the equipment, the weather and malicious van- dalism cause wear and tear that compromises the safety and function of the equipment. -
Page 20: Regular Maintenance
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Regular maintenance - 20 - \\CAD1\Standard\4959-20\Montageanleitungen\Abenteuerbruecke_mit_Holzsteg_4959_20_ST_B_L_1_GBR.doc... -
Page 21: Monthly Maintenance
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Monthly maintenance 11.1 Check the spaces between the equipment and the ground (clearance and height of fall). 11.2 Check the ground surface in the area with fall protection for hard objects and loose foundations. -
Page 22: Annual Maintenance
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net Annual Maintenance 14 Annual maintenance 14.1 Check if the equipment, foundations and surfaces are safe for operation. 14.2 In particular, the equipment should be checked for decay and corrosion. It may be necessary to dig out or excavate certain components. -
Page 23: Maintenance Printout
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net 15 Maintenance printout Name of item: Adventure Bridge with wooden rungs _ / Art. No. 4959-20 _____________________________________ Location: _______________________________________________________________________________________ Customer or operator: _____________________________________________________________________________ (Town, Town council, Kindergarten) Date of Inspector O.K. -
Page 25: Hand Over Document
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany seiltechnik@huck.net • www.huck.net 16 Hand over document After the installation of the equipment pass the installation and mainte- nance documents to the operator. The operator has to receive the hand over documents. The complete filled and signed hand over document should be sent to the supplier.
