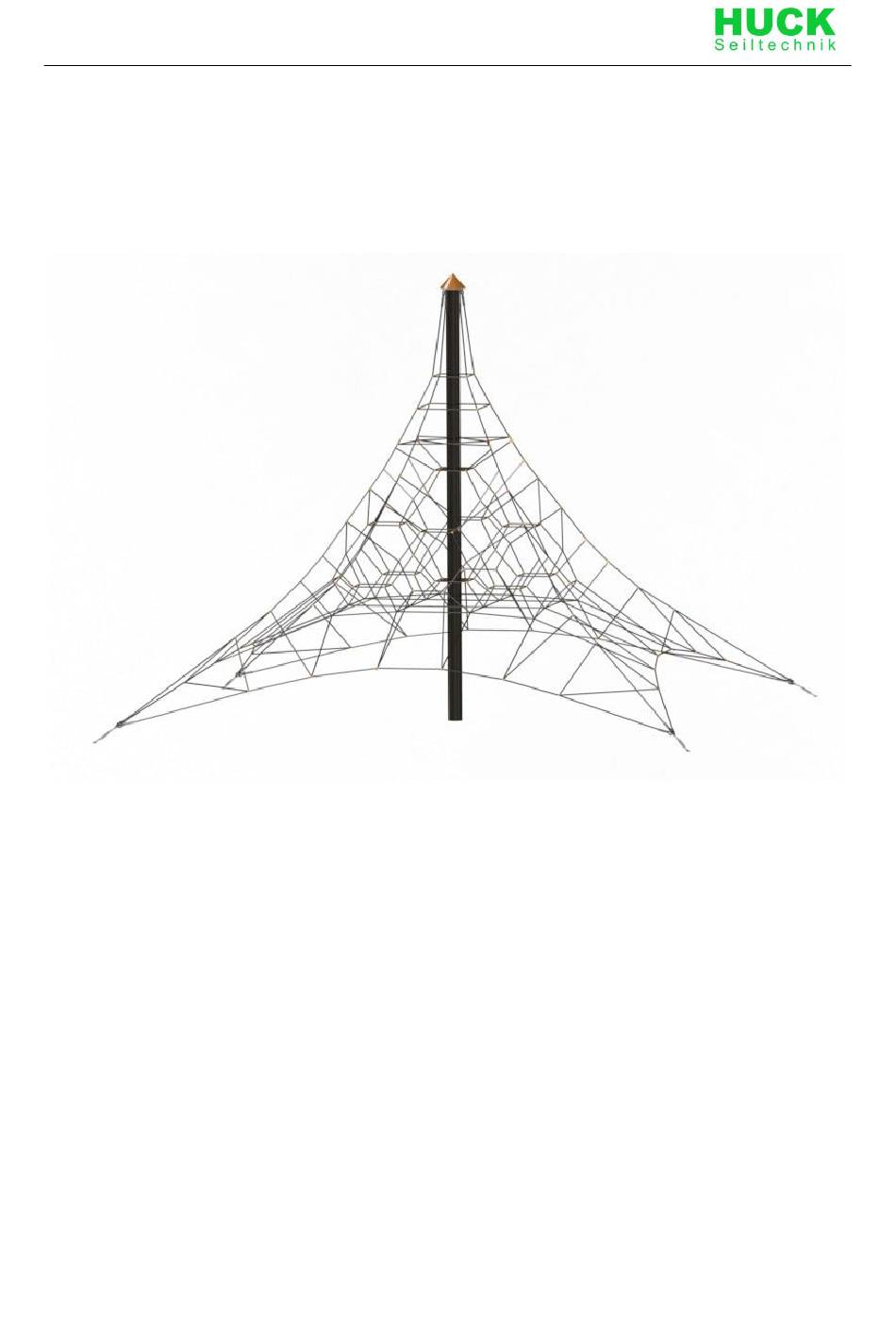

Assembly Instructions

Spider

Art. No. 5000-6-4

Operator: _____________________________________________________

Location: ______________________________________________________

\\CAD1\Standard\5000-6-4\Montageanleitung\Spider_5000_6_4_ST_B_L_1_GBR.doc

- 1 -

Table of Contents

Need help?

Do you have a question about the Spider and is the answer not in the manual?

Questions and answers

Summary of Contents for HUCK Seiltechnik Spider

Page 1 Assembly Instructions Spider Art. No. 5000-6-4 Operator: _____________________________________________________ Location: ______________________________________________________ \\CAD1\Standard\5000-6-4\Montageanleitung\Spider_5000_6_4_ST_B_L_1_GBR.doc - 1 -...
Page 2 Revision history Revision 0 – 2013-11-27 The first allowed version Assembly Instructions Revision 10 – 2020-06-25 Mindestraum nach „Excel-Tabelle“ geändert + Stückliste Ringschraube mit Hebeseil All rights reserved © Copyright 2015 Huck Seiltechnik GmbH \\CAD1\Standard\5000-6-4\Montageanleitung\Spider_5000_6_4_ST_B_L_1_GBR.doc...
Page 3: Table Of Contents
Contents Assembly Instructions Spider Art. No. 5000-6-4 ..............1 Introduction Assembling .......................4 Data sheet Spider, Art. 5000-6-4 ....................6 Delivery contents (parts list with part numbers) .................8 Required Spaces - Top view ....................... 14 Post installation checks ......................27 Maintenance Instructions ......................27 Introduction Maintenance ......................
Page 4: Introduction Assembling
Please consider that the installation has to be carried out only on even terrain (max.slope up to 3%). Any spare parts that may be required can be obtained directly from your supplier or from Fa. Huck Seiltechnik GmbH Adress: Huck Seiltechnik GmbH Dillerberg 3 D-35614 Aßlar/Berghausen...
Page 5 Drawings / Views All optical drawings are showing only the measurements/dimensions and are no mandatory technical views of the complete item. We reserve the right to change technical details of our articles which are serving for the further development of our articles and are reasonable for the customer.
Page 6: Data Sheet Spider, Art. 5000-6-4
Data sheet Spider, Art. 5000-6-4 Component zone: 8750 x 8750 mm Safety zone: 10360 x 10360 mm Installation zone: 12525 x 12525 mm (larger than the safety zone!) Total ground height: 6400 mm Fall height: 1040 mm Fall protection area: 97,30 m²...
Page 7 Round off foundation edges (min.R = 100 mm)! Sizes of fundations are “4-5” (natural ground). Soil class 4: soft to medium plasticity, interleave bound, with minor portion of stone (portion < 30% with bigger diameter of 63 mm grain size). Soil class 5 : ground with soil class 3 and 4 with big portion of stones (portion >...
Page 8: Delivery Contents (Parts List With Part Numbers)
Delivery contents (parts list with part numbers) In words Table 3-1: Delivery contents, in words Element / Pos. Quantity Size O.K. Missing Description Lg. 7220 mm / Steel post Ø 193,7 x 6,3 mm Net component Ca. 8200 x 8200 mm Rubber membrane (pre-assembled 400 x 400 mm...
Page 9: Table 3-2: Delivery Contents, In Symbols
In symbols Table 3-2: Delivery contents, in symbols Pos. Quantity Symbol Lg. 7220 mm / Ø 193,7 x 6,3 mm 8200 x 8200 mm 400 x 400 mm Ø 360 mm \\CAD1\Standard\5000-6-4\Montageanleitung\Spider_5000_6_4_ST_B_L_1_GBR.doc - 9 -...
Page 10 Pos. Quantity Symbol Ø 360 mm (pre - assembled on Pos.2) M16 x 165 mm Lg. 1250 mm \\CAD1\Standard\5000-6-4\Montageanleitung\Spider_5000_6_4_ST_B_L_1_GBR.doc...
Page 11 Ø 20 mm Lg. 750 mm 500 x 500 mm 3 ml Lg. 1600 mm / Ø 12 mm (provided by Customer) Lg. 650 mm / Ø 12 mm (provided by Customer) Lg. 650 mm / Ø 300 mm (provided by Customer) \\CAD1\Standard\5000-6-4\Montageanleitung\Spider_5000_6_4_ST_B_L_1_GBR.doc - 11 -...
Page 12 Abreviations for Spider The legally prescribed setting times must be observed! Install reinforcement constructively! Concrete C25/30 (for foundations) Detail view Single foundation with reinforcement (4x) Ground, fall protection etc. (ground) 100 mm thick Fall protection Hook the catching rope with shackle pos. 10 onto the chain pos.9!
Page 13 Loctite-Thread locking adhesive Glue all screws, nuts and sleeves with loctite. (not less than 5 drops !) (except for Nylock nuts) \\CAD1\Standard\5000-6-4\Montageanleitung\Spider_5000_6_4_ST_B_L_1_GBR.doc - 13 -...
Page 14: Required Spaces - Top View
Required Spaces - Top view \\CAD1\Standard\5000-6-4\Montageanleitung\Spider_5000_6_4_ST_B_L_1_GBR.doc...
Page 15 Foundation plan - Side view \\CAD1\Standard\5000-6-4\Montageanleitung\Spider_5000_6_4_ST_B_L_1_GBR.doc - 15 -...
Page 16 Foundation plan – top view \\CAD1\Standard\5000-6-4\Montageanleitung\Spider_5000_6_4_ST_B_L_1_GBR.doc...
Page 17 \\CAD1\Standard\5000-6-4\Montageanleitung\Spider_5000_6_4_ST_B_L_1_GBR.doc - 17 -...
Page 18 Installing Pos. 1 \\CAD1\Standard\5000-6-4\Montageanleitung\Spider_5000_6_4_ST_B_L_1_GBR.doc...
Page 19 Installing Pos.2 –Raise net \\CAD1\Standard\5000-6-4\Montageanleitung\Spider_5000_6_4_ST_B_L_1_GBR.doc - 19 -...
Page 20 \\CAD1\Standard\5000-6-4\Montageanleitung\Spider_5000_6_4_ST_B_L_1_GBR.doc...
Page 21 Net – Alignment Net – Tensioning(Apply tension with 2 persons opposite from each other) \\CAD1\Standard\5000-6-4\Montageanleitung\Spider_5000_6_4_ST_B_L_1_GBR.doc - 21 -...
Page 22 \\CAD1\Standard\5000-6-4\Montageanleitung\Spider_5000_6_4_ST_B_L_1_GBR.doc...
Page 23 Remove Installment Ring Pos.14. \\CAD1\Standard\5000-6-4\Montageanleitung\Spider_5000_6_4_ST_B_L_1_GBR.doc - 23 -...
Page 24 Install Pos.4 and Pos.7 using Pos.15 (Loctite) \\CAD1\Standard\5000-6-4\Montageanleitung\Spider_5000_6_4_ST_B_L_1_GBR.doc...
Page 25 \\CAD1\Standard\5000-6-4\Montageanleitung\Spider_5000_6_4_ST_B_L_1_GBR.doc - 25 -...
Page 26 \\CAD1\Standard\5000-6-4\Montageanleitung\Spider_5000_6_4_ST_B_L_1_GBR.doc...
Page 27: Post Installation Checks
Post installation checks If the equipment has not been installed safely, you must ensure that the public is prevented from using it. Marking filler depth • Labelling the posts to show the depth of material provided as fall protection (i.e. loose filler).
Page 29 B Maintenance Instructions Spider Art.5000-6-4 \\CAD1\Standard\5000-6-4\Montageanleitung\Spider_5000_6_4_ST_B_L_1_GBR.doc - 27 -...
Page 30: Introduction Maintenance
Introduction Maintenance General informations This equipment should be installed, inspected, maintained and operated in accordance with EN 1176-7 guidelines. Please note: Providing any necessary repairs are carried out, a piece of play equipment that is inspected regularly cannot become so damaged that it is dangerous.
Page 31: General Maintenance Information
General maintenance information Maintenance intervals Maintenance intervals are based on average use. Please note that more frequent inspections and/or maintenance are required if the play equipment is subject to intensive use. Inspection frequency The frequency of inspections must be based on actual use. Factors that affect frequency include vandalism, location (e.g.
Page 32 Faults Damages must be repaired as soon as they are detected. If serious defects that affect the safetyness cannot be repaired straight away, the playground item must be blocked with immediate effect. 7.10 Loose screws Loose screws always cause quality problems and put safety at risk. Therefore, loose screws should always be tightened and checks carried out to ensure that there are no missing screws.
Page 33: Maintenance Timetable
Maintenance timetable Special advices 8.1.1 Maintenance interval We strongly advise you to carry out inspections and maintenance work within the specified periods as use of the equipment, the weather and malicious vandalism cause wear and tear that compromises the safety and function of the equipment.
Page 34: Regular Maintenance
Regular maintenance \\CAD1\Standard\5000-6-4\Montageanleitung\Spider_5000_6_4_ST_B_L_1_GBR.doc...
Page 35: Monthly Maintenance
10 Monthly maintenance 10.1 Check the spaces between the equipment and the ground (clearance and height of fall). 10.2 Check the ground surface of fall protection for hard objects and loose foundations. 10.3 Check all connecting elements and fittings for wear and tear and tighten if necessary.
Page 36: Annual Maintenance
Annual Maintenance Annual maintenance 13.1 Ascertaining that the equipment, foundations and surfaces are safe for operation. 13.2 In particular, the equipment should be checked for decay and corrosion. It may be necessary to dig out or excavate certain components in order to do so.
Page 38: Maintenance Printout
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net 14 Maintenance printout Name of item: Spider _________________________ / Art. No. 5000-6-4 _____________________________________ Location: _______________________________________________________________________________________ Customer or operator: _____________________________________________________________________________ (Town, Town council, Kindergarten) Date of Inspector O.K. Accessible Barriered...
Page 40: Hand Over Document
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net 15 Hand over document After the installation of the equipment pass the installation and maintenance documents to the operator. The operator has to receive the hand over documents. The complete filled and signed hand over document should be sent to the supplier.
