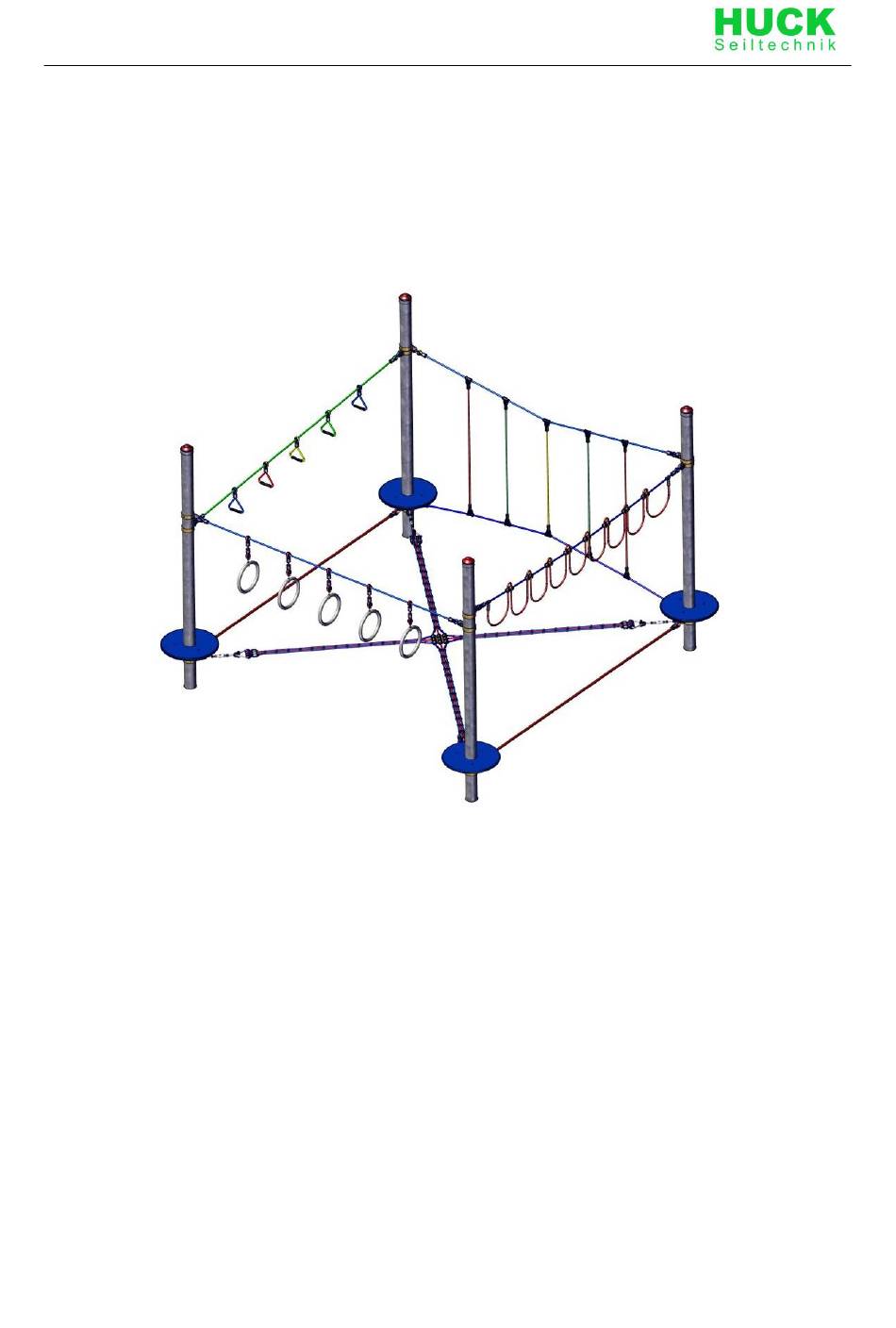

- Page 1 A Assembly Instructions Slack Master Combination 2 Art. 4591-72 Operator: _____________________________________________________ Location: ______________________________________________________ \\CAD1\Standard\4591-72\Montageanleitung\Slackmaster_Kombination_2_4591_72_ST_B_L_1_GBR.doc - 1 -...
- Page 2 Revision history Revision 0 – 2012-20-06 The first allowed version Revision 03 2020-04-28 Ansichten komplett überarbeitet PM neu Aufhängemaße FH Assembly instructions All rights reserved © Copyright 2013 Huck Seiltechnik GmbH \\CAD1\Standard\4591-72\Montageanleitung\Slackmaster_Kombination_2_4591_72_ST_B_L_1_GBR.doc...
-
Page 3: Table Of Contents
Contents Assembly Instructions Slack Master Combination 2 Art. 4591-72 ..........1 Introduction Assembling .......................4 Datasheet, Slack Master Combination 2 Art. 4591-72 ..............5 Delivery contents (parts list with part numbers) .................7 Erection instructions ........................12 Post installation checks ......................19 Maintenance Instructions Slack Master Combination 2 Art.4591-72 ........17 Introduction Maintenance ...................... -
Page 4: Introduction Assembling
Please consider that the installation has to be carried out only on even terrain (max.slope up to 3%). Any spare parts that may be required can be obtained directly from your supplier or from Fa. Huck Seiltechnik GmbH Adress: Huck Seiltechnik GmbH Dillerberg 3 D-35614 Aßlar/Berghausen... -
Page 5: Datasheet, Slack Master Combination 2 Art. 4591-72
Datasheet, Slack Master Combination 2 Art. 4591-72 Space requirement: 3490 x 3490 mm Height of equipment: 2440 mm safety zone: 6490 x 6490 mm Height of fall: 1630 mm Fall protection area: 37,86 m² Required safety surface: Minimum Maximum thickness of... - Page 6 50%! Assembly time, once foundations completed: 3 hours. Required assistants: 2 persons. Possibly required spare parts can be obtained directly from your supplier or from the company Huck Seiltechnik GmbH Adress: Huck Seiltechnik GmbH Dillerberg 3 D-35614 Aßlar/Berghausen Tel.
-
Page 7: Delivery Contents (Parts List With Part Numbers)
Delivery contents (parts list with part numbers) In words Table 3-1: Delivery contents, in words Pos. Quantity Element / Size O.K. Missing Description Lg. 3400 mm / Steel post Ø 101,6 mm Ø 101,6 mm Cover cap red Turnbuckle (pre-assembled on Pos. -
Page 8: Table 3-2: Delivery Contents, In Symbols
In symbols Table 3-2: Delivery contents, in symbols Pos. Quantity Symbol Lg. 3400 mm / Ø 101,6 mm Ø 101,6 mm M12 (pre-assembled on Pos. 04 + 09) AM 4240 mm AM 3000 mm \\CAD1\Standard\4591-72\Montageanleitung\Slackmaster_Kombination_2_4591_72_ST_B_L_1_GBR.doc... - Page 9 Pos. Quantity Symbol AM 3000 mm AM 3000 mm AM 3000 mm AM 3000 mm Ø 490 mm Ø 101,6 mm 4,5 x 25 mm \\CAD1\Standard\4591-72\Montageanleitung\Slackmaster_Kombination_2_4591_72_ST_B_L_1_GBR.doc - 9 -...
- Page 10 Pos. Quantity Symbol Ø 101,6 mm M8 x 35 mm Ca. 300 x 300 mm (on site / by customer) \\CAD1\Standard\4591-72\Montageanleitung\Slackmaster_Kombination_2_4591_72_ST_B_L_1_GBR.doc...
- Page 11 Loctite-Thread locking adhesive Glue all screws, nuts and sleeves with loctite. (not less than 5 drops !) (except for lock nuts) \\CAD1\Standard\4591-72\Montageanleitung\Slackmaster_Kombination_2_4591_72_ST_B_L_1_GBR.doc - 11 -...
-
Page 12: Erection Instructions
Erection instructions \\CAD1\Standard\4591-72\Montageanleitung\Slackmaster_Kombination_2_4591_72_ST_B_L_1_GBR.doc... - Page 13 \\CAD1\Standard\4591-72\Montageanleitung\Slackmaster_Kombination_2_4591_72_ST_B_L_1_GBR.doc - 13 -...
- Page 14 \\CAD1\Standard\4591-72\Montageanleitung\Slackmaster_Kombination_2_4591_72_ST_B_L_1_GBR.doc...
- Page 15 \\CAD1\Standard\4591-72\Montageanleitung\Slackmaster_Kombination_2_4591_72_ST_B_L_1_GBR.doc - 15 -...
- Page 16 \\CAD1\Standard\4591-72\Montageanleitung\Slackmaster_Kombination_2_4591_72_ST_B_L_1_GBR.doc...
- Page 17 \\CAD1\Standard\4591-72\Montageanleitung\Slackmaster_Kombination_2_4591_72_ST_B_L_1_GBR.doc - 17 -...
- Page 18 Abreviations Minimum legal setting time Axial dimension Concrete C25/30 (for foundations) Concrete requirement: 1,54 m³ Ground, fall protection etc. (ground) 100 mm thick Fall protection 300 mm drainage layer 100 mm Upper edge of play level Space requirement including safety zone ~38,15 m² Radius \\CAD1\Standard\4591-72\Montageanleitung\Slackmaster_Kombination_2_4591_72_ST_B_L_1_GBR.doc...
-
Page 19: Post Installation Checks
Post installation checks If the equipment has not been installed safely, you must ensure that the public is prevented from using it. Marking filler depth • Labelling the posts to show the depth of material provided as fall protection (i.e. loose filler). The equipment has not been installed safely in the following cases: •... - Page 21 Maintenance Instructions Slack Master Combination 2 Art.4591-72 \\CAD1\Standard\4591-72\Montageanleitung\Slackmaster_Kombination_2_4591_72_ST_B_L_1_GBR.doc - 17 -...
-
Page 22: Introduction Maintenance
Any spare parts which may be required can be obtained directly from your supplier or from Fa. Huck Seiltechnik GmbH Adress: Huck Seiltechnik GmbH Dillerberg 3 D-35614 Aßlar/Berghausen... -
Page 23: General Maintenance Information
General maintenance information Maintenance intervals Maintenance intervals are based on average use. Please note that more frequent inspections and/or maintenance are required if the play equipment is subject to intensive use. Inspection frequency The frequency of inspections must be based on actual use. Factors that affect frequency include vandalism, location (e.g. - Page 24 Faults Damages must be repaired as soon as they are detected. If serious defects that affect the safetyness cannot be repaired straight away, the playground item must be blocked with immediate effect. 7.10 Loose screws Loose screws always cause quality problems and put safety at risk. Therefore, loose screws should always be tightened and checks carried out to ensure that there are no missing screws.
-
Page 25: Maintenance Timetable
Maintenance timetable Special advices 8.1.1 Maintenance interval We strongly advise you to carry out inspections and maintenance work within the specified periods as use of the equipment, the weather and malicious vandalism cause wear and tear that compromises the safety and function of the equipment. -
Page 26: Regular Maintenance
Regular maintenance \\CAD1\Standard\4591-72\Montageanleitung\Slackmaster_Kombination_2_4591_72_ST_B_L_1_GBR.doc... -
Page 27: Monthly Maintenance
10 Monthly maintenance 10.1 Check the spaces between the equipment and the ground (clearance and height of fall). 10.2 Check the ground surface of fall protection for hard objects and loose foundations. 10.3 Check all connecting elements and fittings for wear and tear and tighten if necessary. -
Page 28: Half Yearly Maintenance
Half yearly maintenance 12.1 The stability of supporting posts, supports, foundations etc. has to be checked. The safety level of the entire system has to be checked after repairs have been carried out or additional system components have been installed or replaced. Annual Maintenance Annual maintenance 13.1 Ascertaining that the equipment, foundations and surfaces are safe for... -
Page 30: Maintenance Printout
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net 14 Maintenance printout Name of item: Slack Master Combination 2 ________ / Art. No. 4591-72 _____________________________________ Location: _______________________________________________________________________________________ Customer or operator: _____________________________________________________________________________ (Town, Town council, Kindergarten) Date of Inspector O.K. -
Page 32: Hand Over Document
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net 15 Hand over document After the installation of the equipment pass the installation and maintenance documents to the operator. The operator has to receive the hand over documents. The complete filled and signed hand over document should be sent to the supplier.
