HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen
seiltechnik@huck.net - www.huck.net
A

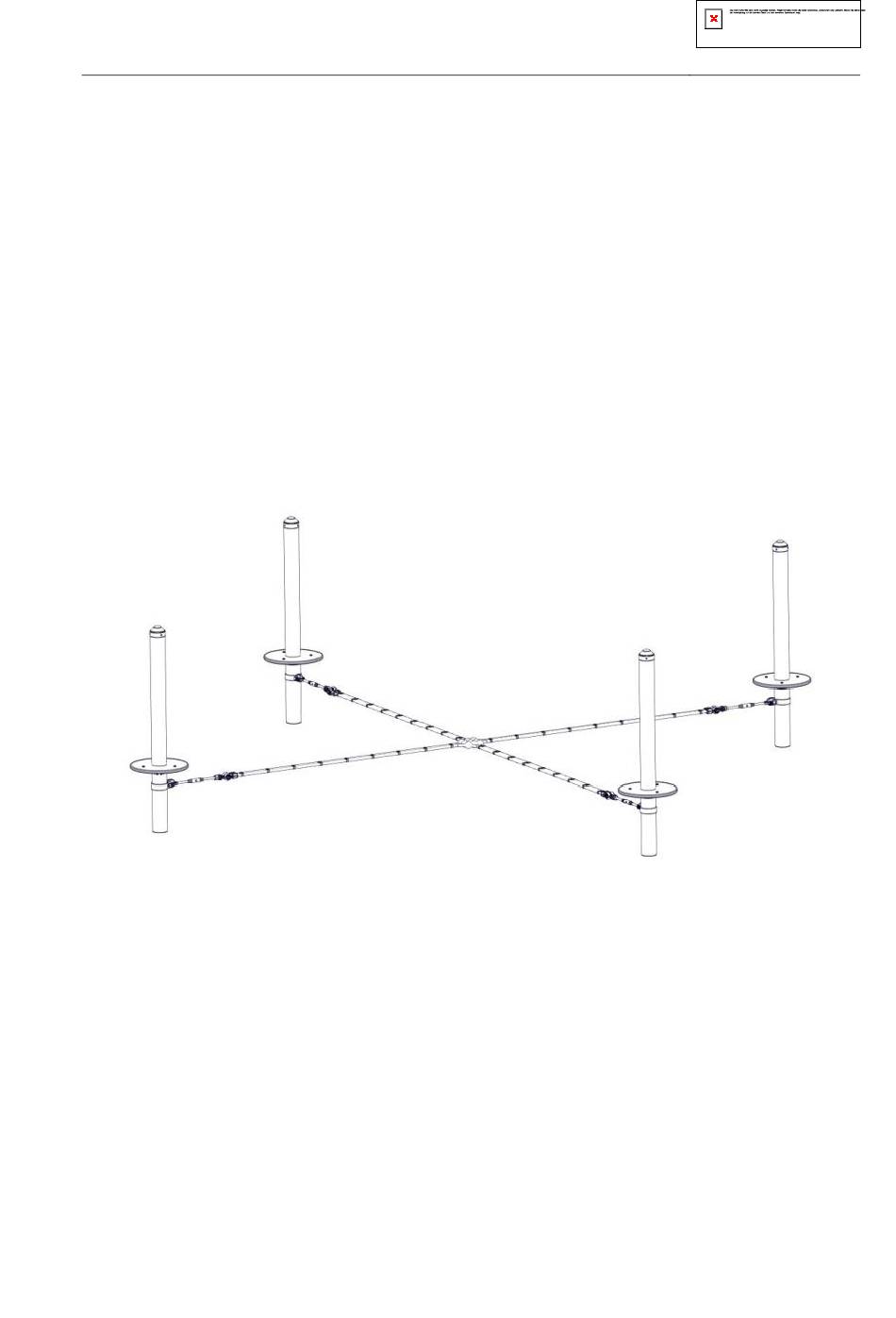

Assembly Instructions
Slackmaster combination 1
Art.-No. 4591-71
Attention! Only use the assembly instruction in the scope delivery
for the assembly and maintenance of the respective equipment!
Operator: _________________________________________________________
Location:
_________________________________________________________
\\CAD1\Standard\4591-71\Montageanleitung\Slackmaster_Kombination_1_4591_71_S_B_L_3_GBR.doc
1
Advertisement
Table of Contents
Related Manuals for HUCK Seiltechnik 4591-71
Summary of Contents for HUCK Seiltechnik 4591-71
-
Page 1: A Assembly Instructions Slackmaster Combination 1 Art.-No. 4591-71
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Assembly Instructions Slackmaster combination 1 Art.-No. 4591-71 Attention! Only use the assembly instruction in the scope delivery for the assembly and maintenance of the respective equipment! Operator: _________________________________________________________... - Page 2 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Revisionshistorie Revision 0 – 2012-26-06 Erste freigegebene Version FH Montageanleitung Revision 3 2022-12-04 Neue Form der Anleitung FH Alle Rechte vorbehalten © Copyright 2012 Huck Seiltechnik GmbH \\CAD1\Standard\4591-71\Montageanleitung\Slackmaster_Kombination_1_4591_71_S_B_L_3_GBR.doc...
-
Page 3: Table Of Contents
Please note the explanations and abbreviations and notes. For any queries please contact the manufacturer Contents Assembly Instructions Slackmaster combination 1 Art.-No. 4591-71 ....... 1 Introduction Assembling ....................4 Datasheet: Slackmaster combination Art.-Nr.4591-71 ..........6 Delivery contents (parts list with part numbers) ............8 Assembly instructions .................... -
Page 4: Introduction Assembling
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Introduction Assembling General information This equipment should be installed, inspected, maintained and operated in accordance with EN1176-7 guidelines. Before installation work commences, please check that you have all of the equipment and fixation components in the parts list provided (see Tables 3-1 and 3-2). - Page 5 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Drawings / Views All optical drawings are showing only the measurements/dimensions and are no mandatory technical views of the complete item. We reserve the right to change technical details of our articles which are serv- ing for the further development of our articles and are reasonable for the cus- tomer.
-
Page 6: Datasheet: Slackmaster Combination Art.-Nr.4591-71
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Datasheet: Slackmaster combination Art.-Nr.4591-71 1. Component zone: 3,87 m x 3,87 m safety zone:: 6,90 m x 6,90 m Height of equipment: 1,44 m Height of Fall: 0,47 m Fall protection area: 39,5 m²... - Page 7 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Round off foundation edges (min.R = 100 mm)! Sizes of fundations are de- signed for soils class“4-5” (natural ground). Soil class 4: soft to medium plasticity, interleave bound, with minor portion of stone (portion <...
-
Page 8: Delivery Contents (Parts List With Part Numbers)
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Delivery contents (parts list with part numbers) 3.1. In words Table 3-1: Delivery contents, in words Element / Mis- Pos. Quantity Size O.K. Description sing 2,40 m long, Ø 101,6... -
Page 9: Table 3-2: Delivery Contents, In Symbols
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net 3.2. In symbols Table 3-2: Delivery contents, in symbols Quanti- Pos. Symbol Steel posts 2,40 m, Ø 101,6 mm red caps for the steel / posts for Ø 101,6 mm... - Page 10 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net self-tapping Pipe clamp as floor anchor Lock screw Cap mother Sidewalk slab (on site / by customer) \\CAD1\Standard\4591-71\Montageanleitung\Slackmaster_Kombination_1_4591_71_S_B_L_3_GBR.doc...
- Page 11 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Abbreviations The legally prescribed setting times must be observed! C25/30 concrete (for foundations) Q.ty required: 1,6 m³ Ground, fall protection etc. (ground) 100 mm thick Fall protection Drainage layer Gehw.Pl.
- Page 12 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Screw locking device! glue all screws, nuts and sleeves with loctite. (not less than 5 drops !) (except for lock nut) \\CAD1\Standard\4591-71\Montageanleitung\Slackmaster_Kombination_1_4591_71_S_B_L_3_GBR.doc...
-
Page 13: Assembly Instructions
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Assembly instructions \\CAD1\Standard\4591-71\Montageanleitung\Slackmaster_Kombination_1_4591_71_S_B_L_3_GBR.doc... - Page 14 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net \\CAD1\Standard\4591-71\Montageanleitung\Slackmaster_Kombination_1_4591_71_S_B_L_3_GBR.doc...
- Page 15 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net \\CAD1\Standard\4591-71\Montageanleitung\Slackmaster_Kombination_1_4591_71_S_B_L_3_GBR.doc...
- Page 16 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net \\CAD1\Standard\4591-71\Montageanleitung\Slackmaster_Kombination_1_4591_71_S_B_L_3_GBR.doc...
-
Page 17: Post Installation Checks
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Post installation checks If the equipment has not been installed safely, you must ensure that the public is prevented from using it. Marking filler depth Labelling the posts to show the depth of material provided as fall protection (i.e. -
Page 19: B Maintenance Instructions Slackmaster Combination 1 Art.-Nr. 4591-71
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Maintenance instructions Slackmaster combination 1 Art.-Nr. 4591-71 \\CAD1\Standard\4591-71\Montageanleitung\Slackmaster_Kombination_1_4591_71_S_B_L_3_GBR.doc... - Page 20 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Revisionshistorie Revision 0 – 2012-26-06 Erste freigegebene Version FH Montageanleitung Revision 3 2022-12-04 Neue Form der Anleitung FH Alle Rechte vorbehalten © Copyright 2012 Huck Seiltechnik GmbH \\CAD1\Standard\4591-71\Montageanleitung\Slackmaster_Kombination_1_4591_71_S_B_L_3_GBR.doc...
-
Page 21: Introduction Maintenance
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Introduction Maintenance General informations This equipment should be installed, inspected, maintained and operated in accordance with EN 1176-7 guidelines. Please note: Providing any necessary repairs are carried out, a piece of play equipment that is inspected regularly cannot become so damaged that it is dangerous. -
Page 22: General Maintenance Information
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net General maintenance information Maintenance intervals Maintenance intervals are based on average use. Please note that more fre- quent inspections and/or maintenance are required if the play equipment is subject to intensive use. - Page 23 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Faults Faults must be repaired as soon as they are detected. If serious defects that compromise safety cannot be repaired straight away, the public must be prevented from using the equipment with immediate effect.
-
Page 24: Maintenance Timetable
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Maintenance timetable Special advices 8.1.1 Maintenance interval We strongly advise you to carry out inspections and maintenance work within the specified periods as use of the equipment, the weather and malicious van- dalism cause wear and tear that compromises the safety and function of the equipment. -
Page 25: Regular Maintenance
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Regular maintenance \\CAD1\Standard\4591-71\Montageanleitung\Slackmaster_Kombination_1_4591_71_S_B_L_3_GBR.doc... -
Page 26: Monthly Maintenance
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Regular maintenance Monthly maintenance 10.1 Check the spaces between the equipment and the ground (clearance and height of fall). 10.2 Check the ground surface in the area with fall protection for hard objects and loose foundations. -
Page 27: Half Yearly Maintenance
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Half yearly maintenance 12.1 Stability (check posts, bracing, foundations, etc.). Ascertaining whether there are any changes in equipment safety as a result of repairs that have been carried out or components that have been added or replaced. -
Page 29: Maintenance Printout
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Maintenance printout Name of item: Slackmaster combination 1 / Art.-Nr. 4591-71 ___ Location: _______________________________________________________________________________________ Customer or operator: _____________________________________________________________________________ (Town, Town council, Kindergarten) Date of Inspector O.K. Accessible Barriered... -
Page 31: Hand Over Document
After the installation of the equipment pass the installation and mainte- nance documents to the operator. The operator has to receive the hand over documents. The complete filled and signed hand over document should be sent to the supplier Huck Seiltechnik GmbH per Telefax +49 6443 8311-79 Art.-No.:...
