Summary of Contents for HUCK Seiltechnik Eagles Nest Tree
-

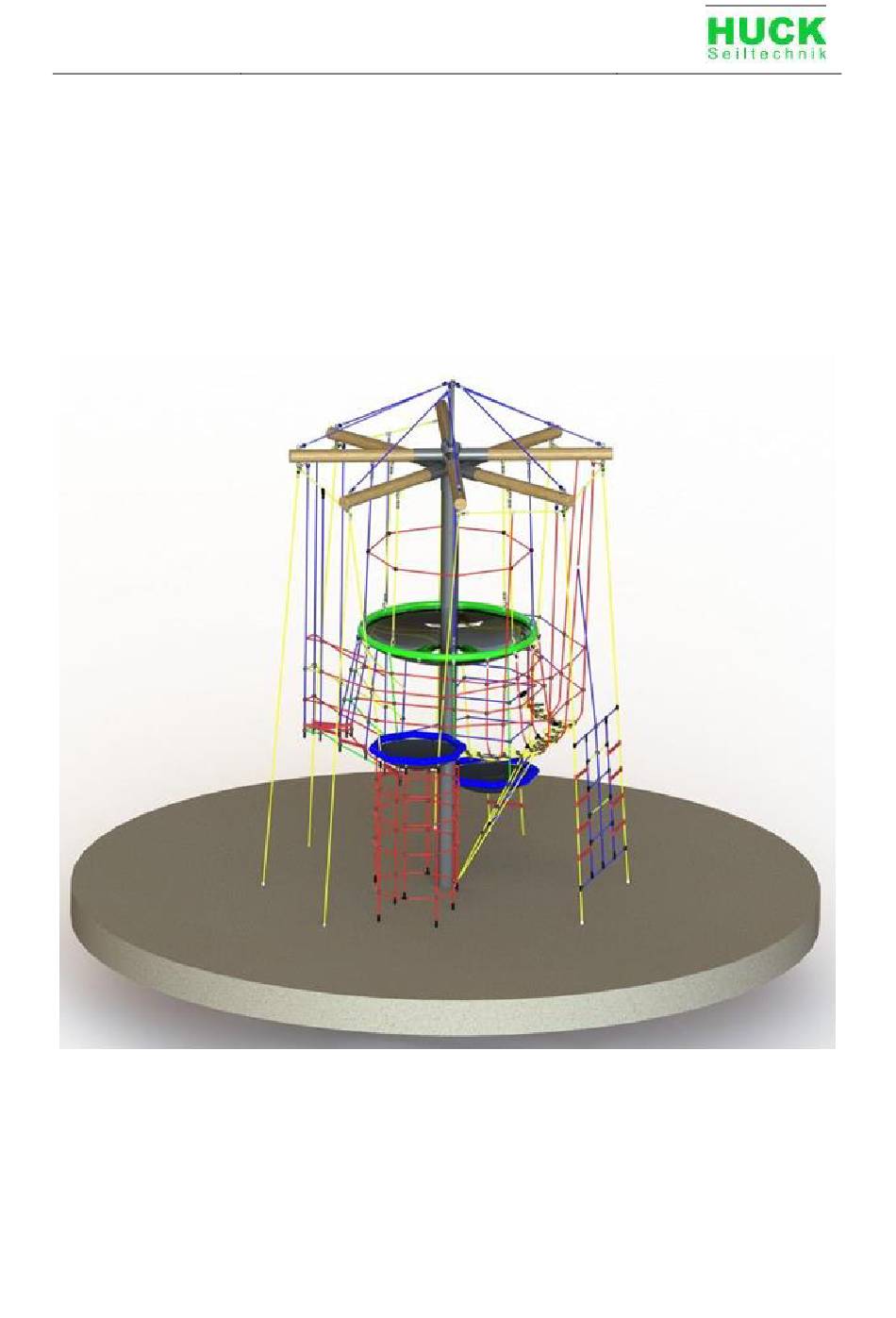

Page 1: A Assembly Instructions Eagles Nest Tree Art. No. 4652-40 (Height 5,74 M) Required Safety Surfacing 400 Mm (Rubber, Wood Chip, Pea Gravel. Etc.)
Assembly Instructions Eagles Nest Tree Art. No. 4652-40 (Height 5,74 m) Required Safety Surfacing 400 mm (Rubber, Wood Chip, Pea Gravel. etc.) Operator: _____________________________________________________ Location: ______________________________________________________ Seite 1 von 40... - Page 2 Revision history Revision 0 – 2014-02-07 The first allowed version Assembly Instructions Revision 5 – 2019-01-21 Zwei Ketten hinzu für Leiter FH All rights reserved © Copyright 2014 Huck Seiltechnik GmbH Seite 2 von 40...
-
Page 3: Table Of Contents
Art. No. 4652-40 (Height 5,74 m) Required Safety Surfacing 400 mm (Rubber, Wood Chip, Pea Gravel. etc.) ..........1 Introduction Assembling .......................4 Data sheet Eagles Nest Tree, Art. 4652-40 ..................6 Delivery contents (parts list with part numbers) .................8 Installation ............................ 13 Post installation checks ...................... -
Page 4: Introduction Assembling
1 Introduction Assembling General information This equipment should be installed, inspected, maintained and operated in accordance with EN1176-7 guidelines. Before installation work commences, please check that you have all of the equipment and fixation components in the parts list provided (see Tables 3-1 and 3-2). - Page 5 Drawings / Views All optical drawings are showing only the measurements/dimensions and are no mandatory technical views of the complete item. We reserve the right to change technical details of our articles which are serving for the further development of our articles and are reasonable for the customer.
-
Page 6: Data Sheet Eagles Nest Tree, Art. 4652-40
Data sheet Eagles Nest Tree, Art. 4652-40 Foundation radius Ø 4,30 m Required space Ø 8,20 m Fall height 2,95m Total ground height 5,74 m The Images (individual drawings) are not to scale !! Required safety surface: Surface material Description... - Page 7 Soil class 5 : ground with soil class 3 and 4 with big portion of stones (portion > 30% with bigger diameter of 63 mm grain size). In case of sandy and soft soils, the surface measure of foundations have to be enlarged for about 50%! Assembly time, once foundations completed: 7 hours.
-
Page 8: Delivery Contents (Parts List With Part Numbers)
Delivery contents (parts list with part numbers) In words Table 3-1: Delivery contents, in words Pos. Quantity Element / Size O.K. Missing Description Steel post Ø193.7 mm x 6,20 m Net component Steel mast/Wood post/Net connection part Wood posts Ø140mm x 1659mm 4 sets Support ropes (preconnected on Pos.3) -
Page 9: Table 3-2: Delivery Contents, In Symbols
In symbols Table 3-2: Delivery contents, in symbols Pos. Quantity Symbol Seite 9 von 40... - Page 10 Pos. Quantity Symbol Seite 10 von 40...
- Page 11 Pos. Quantity Symbol 2 sets sewer pipr Ø 250 mm, 0,85 m long from the customer Seite 11 von 40...
- Page 12 Loctite-Thread locking adhesive Glue all screws, nuts and sleeves with Loctite. (not less than 5 drops !) (except for Nylock nuts) Seite 12 von 40...
-
Page 13: Installation
Installation Seite 13 von 40... - Page 14 Foundation sizes Seite 14 von 40...
- Page 15 Foundation plan Seite 15 von 40...
- Page 16 Seite 16 von 40...
- Page 17 Foundation depths Play component alignment Seite 17 von 40...
- Page 18 Installation Seite 18 von 40...
- Page 19 Seite 19 von 40...
- Page 20 Seite 20 von 40...
- Page 21 Seite 21 von 40...
- Page 22 WH !!! MMNS Seite 22 von 40...
- Page 23 Seite 23 von 40...
- Page 24 Seite 24 von 40...
- Page 25 Because of the natural characteristics of wood it is normal that shrinking and swelling occur due to heat and moisture. For example a wood post with a Ø of 180mm can vary between 173mm and 183mm. In occurrence it is necessary that bolts and screws be retightened and eventually shortened! Seite 25 von 40...
- Page 26 Abreviations for Eagles Nest Tree View Setting time at least 7-8 days Concrete C25/30 (for foundations) D.be. Fill in around the central mast with concrete. (between drainage tube and central mast) Detail view Foundation round-off radius at least 10 cm...
-
Page 27: Post Installation Checks
Post installation checks If the equipment has not been installed safely, you must ensure that the public is prevented from using it. Marking filler depth • Labelling the posts to show the depth of material provided as fall protection (i.e. loose filler). The equipment has not been installed safely in the following cases: •... -
Page 29: B Maintenance Instructions Eagles Nest Tree
B Maintenance Instructions Eagles Nest Tree Art.4652-40 Seite 29 von 40... - Page 30 Revision history Revision 0 – 2014-02-07 The first allowed version Maiantanance Instructions Revision 5 – 2019-01-21 Zwei Ketten hinzu für Leiter FH All rights reserved © Copyright 2014 Huck Seiltechnik GmbH Seite 30 von 40...
-
Page 31: Introduction Maintenance
Introduction Maintenance General informations This equipment should be installed, inspected, maintained and operated in accordance with EN 1176-7 guidelines. Please note: Providing any necessary repairs are carried out, a piece of play equipment that is inspected regularly cannot become so damaged that it is dangerous. -
Page 32: General Maintenance Information
General maintenance information Maintenance intervals Maintenance intervals are based on average use. Please note that more frequent inspections and/or maintenance are required if the play equipment is subject to intensive use. Inspection frequency The frequency of inspections must be based on actual use. Factors that affect frequency include vandalism, location (e.g. - Page 33 Faults Damages must be repaired as soon as they are detected. If serious defects that affect the safetyness cannot be repaired straight away, the playground item must be blocked with immediate effect. 7.10 Loose screws Loose screws always cause quality problems and put safety at risk. Therefore, loose screws should always be tightened and checks carried out to ensure that there are no missing screws.
-
Page 34: Maintenance Timetable
Maintenance timetable Special advices 8.1.1 Maintenance interval We strongly advise you to carry out inspections and maintenance work within the specified periods as use of the equipment, the weather and malicious vandalism cause wear and tear that compromises the safety and function of the equipment. -
Page 35: Regular Maintenance
Regular maintenance 10.8 11.3 10.3-10.6 12.1 11.1-11.2 13.1-13.2 11.7 11.3 10.1-10.2 10.3-10.6 11.6 11.1-11.2 11.7 Seite 35 von 40... -
Page 36: Monthly Maintenance
10 Monthly maintenance 10.1 Check the spaces between the equipment and the ground (clearance and height of fall). 10.2 Check the ground surface of fall protection for hard objects and loose foundations. 10.3 Check all connecting elements and fittings for wear and tear and tighten if necessary. -
Page 37: Annual Maintenance
Annual Maintenance Annual maintenance 13.1 Ascertaining that the equipment, foundations and surfaces are safe for operation. 13.2 In particular, the equipment should be checked for decay and corrosion. It may be necessary to dig out or excavate certain components in order to do so. -
Page 38: Maintenance Printout
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net 14 Maintenance printout Name of item: Eagles Nest Tree ________________ / Art. No. 4652-40 _____________________________________ Location: _______________________________________________________________________________________ Customer or operator: _____________________________________________________________________________ (Town, Town council, Kindergarten) Date of Inspector O.K. -
Page 40: Hand Over Document
Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net 15 Hand over document After the installation of the equipment pass the installation and maintenance documents to the operator. The operator has to receive the hand over documents. The complete filled and signed hand over document should be sent to the supplier.
