DVG-5004S/5008S User's Manual

1-2 Hardware Description

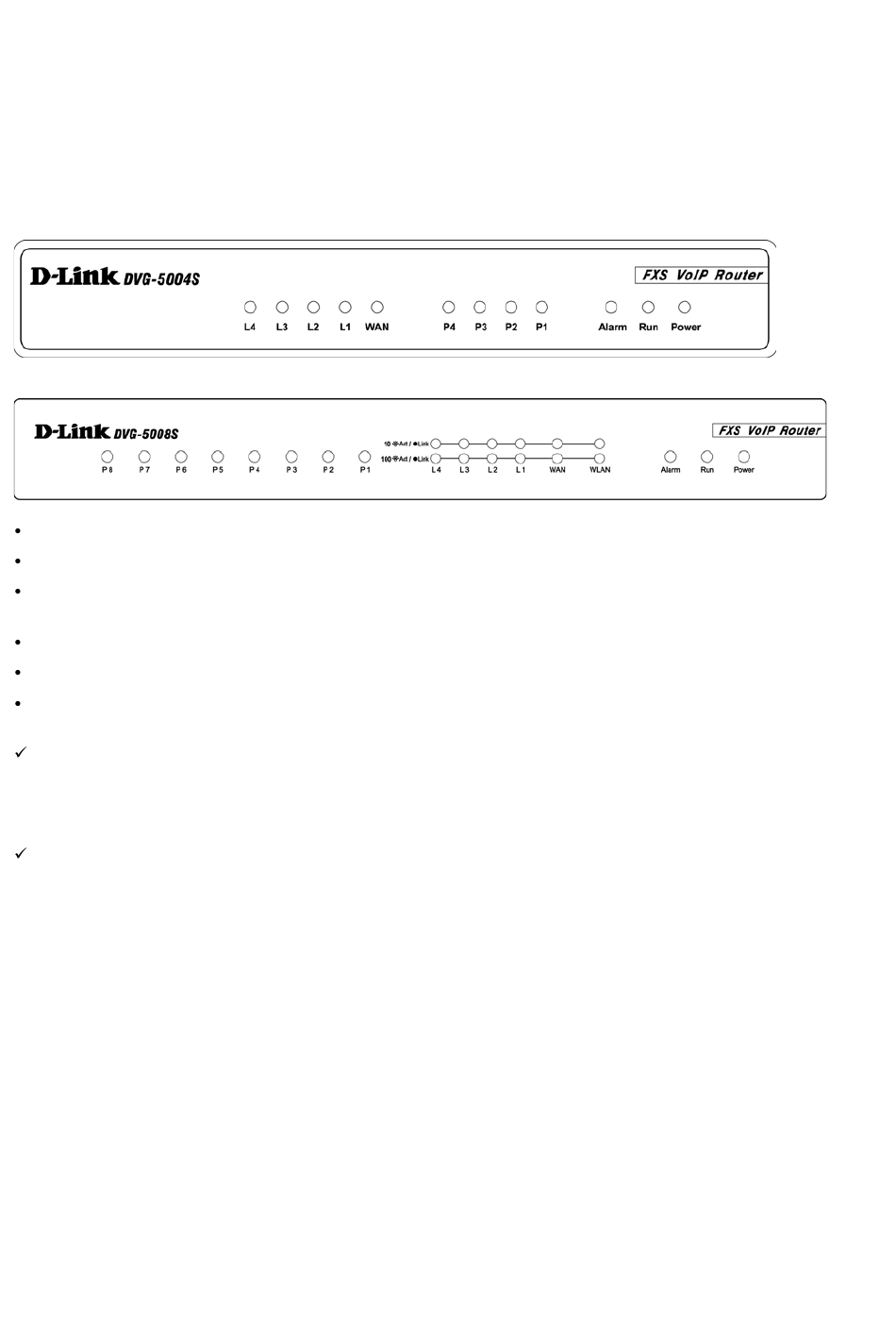

Front Panel

DVG-5004S

DVG-5008S

Power Indicator: green light indicates a normal power supply.

Run Indicator: blinking green light indicates normal operation.

Alarm Indicator: when the system starts up, the red light will blink. This indicator will also light to indicate

any abnormal gateway behavior.

P1 – P4/P1 – P8 Indicators: indicate connection and activity on Port 1 – 4/1 – 8 (phone 1 – 4/1 – 8).

WAN Indicators: indicate connection and activity on the WAN Ports.

L1 – L4 Indicators: indicate connection and activity on LAN Port 1 – 4.

When starting up the system, the Alarm, Run, and Power indicators will light up. After about 40

seconds, the Alarm indicator will go off, the Run indicator will blink green, and the Power indicator

will stay green (under normal operating conditions). If the Alarm indicator continues to blink, then

the system is attempting to connect with your ISP and has yet to obtain an IP address.

Once the WAN is connected, the WAN indicator will light up green and, if data is being transmitted

over the Internet, the indicator blinks green and orange.

D-Link Systems, Inc.

Hardware Description
