3.
In the sprayer-controller screen, determine if the
correct rate (gal/ac) is selected.
4.
If the rate is not correct, change the rate with
the preset rates, incrementally or selecting
the current rate and manually entering the
application rate

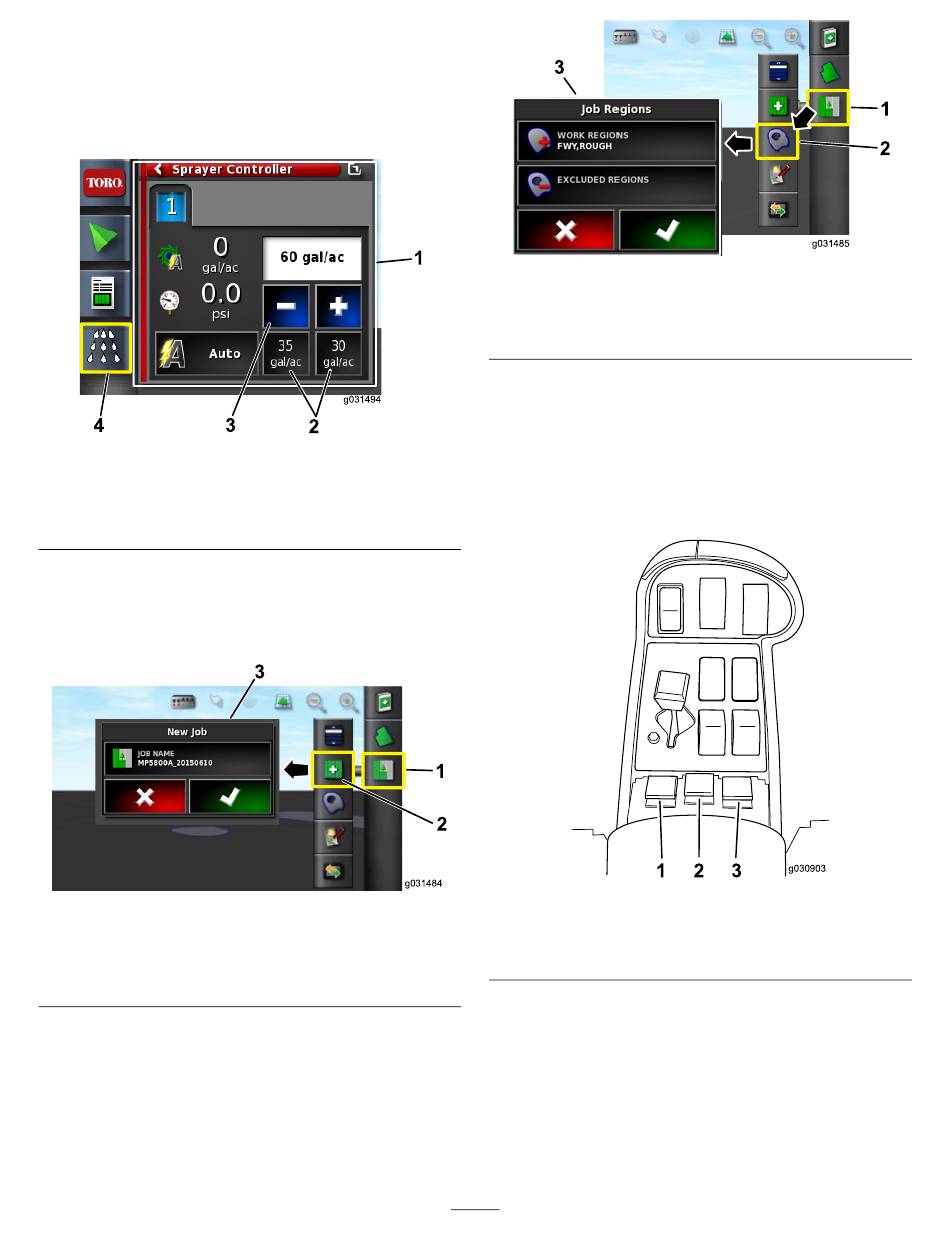

(Figure
Figure 10
1. Current rate
2. Preset-rate icons
5.
Select the job-menu icon in the upper right of
the screen
(Figure
6.
Input a new name for the job or leave the default
time stamp
(Figure
Figure 11
1. Job-menu icon
2. Enter a new name or use
the default time stamp
7.
Open the job-menu icon.
8.
Select the work region that you are going to
spray (i.e., fairways, greens, or tees) shown in
Figure
12.
All manuals and user guides at all-guides.com
10).
3. Decrease and increase
icons
4. Sprayer-controller icon
11).
11).
3. Job menu
1. Job-menu icon
2. Configure-job regions icon
9.
Select the excluded regions that are not to be
sprayed (bunkers, trees, hazards, etc.)
12).
g031494
Note:
Refer to the standard mode videos for
spraying a boundary inside another boundary.
10.
Turn the section switches, located between the
seats, to the
g031484
1. Boom switch, left boom
2. Boom switch, center boom
11.
To start spraying, turn on the master-switch icon
and drive into the spray area
Note:
The machine starts spraying when the
sprayer crosses into the correct spray area with
the ASC control mode set the
position.
Note:
The display shows areas to be sprayed
as light gray and non-spray areas as dark gray.
9
Figure 12
3. Select the job region
position
(Figure
13).
ON
Figure 13
3. Boom switch, right boom
(Figure
FIELD BOUNDARY
g031485
(Figure
g030903
8).
