Product Overview

Controls

The GeoLink ™ System consists of an ECU-based
control console, GPS system, pressure transducer,
and a turbine-type flowmeter.
Become familiar with the controls before you start the
engine and operate the sprayer.
The following are important acronyms for the user to
understand:
•
SBAS (Satellite-Based Augmentation
System)—This system supports wide-area
or regional augmentation through the use of
additional satellite broadcast messages. SBAS
correction sources are commonly composed
of multiple ground stations, which take the
measurements of 1 or more GNSS satellites, and
the satellite signals and environmental factors that
may impact the signal.
•
WAAS (Wide Area Augmentation System)—This
US SBAS was developed by the US Federal
Aviation Administration to serve as an air
navigation aid by improving the accuracy and
availability of the GPS signals.
•
RTK (Real Time Kinematic)—This is a network
association of base stations that transmit their
position data to a server via the internet (NTRIP).
The vehicles in the RTK network (rovers) also
transmit their position to the server via mobile
radio. The server uses the position data from
the base stations and vehicles to calculate the
correction data for each vehicle and transmits it to
the vehicle via mobile radio. This allows you to
determine the position to be carried out with an
accuracy of 1 to 2 cm (3/8 to 3/4 inches) real time.
•
GLONASS (Global Navigation Satellite System
(Russian GNSS))—This allows the GPS receiver
to use the Russian satellite navigation system in
addition to GPS.
Power Button
Note:
The system screen powers on when you start
the machine. The green button is not needed to start
the system.
Push the green button momentarily to turn the console
off (Figure 2). A screen will ask you if you want to shut
down the console.
Note:
Turning off the console computer correctly
does not affect the data stored in the ECU memory.
Note:
Push the green button only. The red button
resets the system.
All manuals and user guides at all-guides.com
Note:
screen until the screen and light bar begins to flash,
or in an emergency, to turn the screen off.
Help Button
The help button displays the names of the icons on
the current screen
USB Eject Button
Use the USB eject button whenever you remove a
USB device from the console
Note:
side of the console
4
Hold the green button only to turn on the

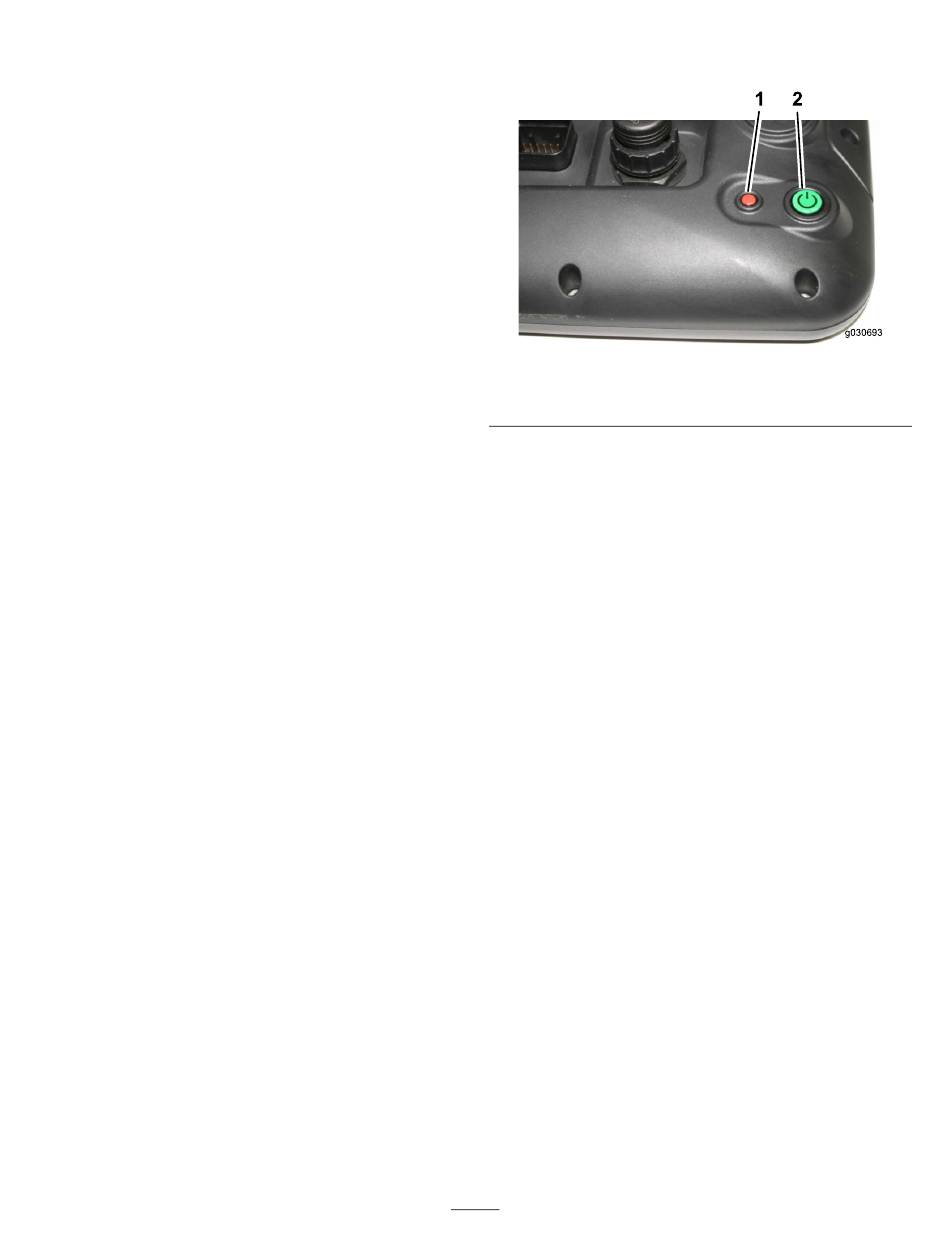

Figure 2
1. Reset button—red
(Figure
The USB port (not shown) is located on the left
2. Power button—green
3).
(Figure 3).
g030693
