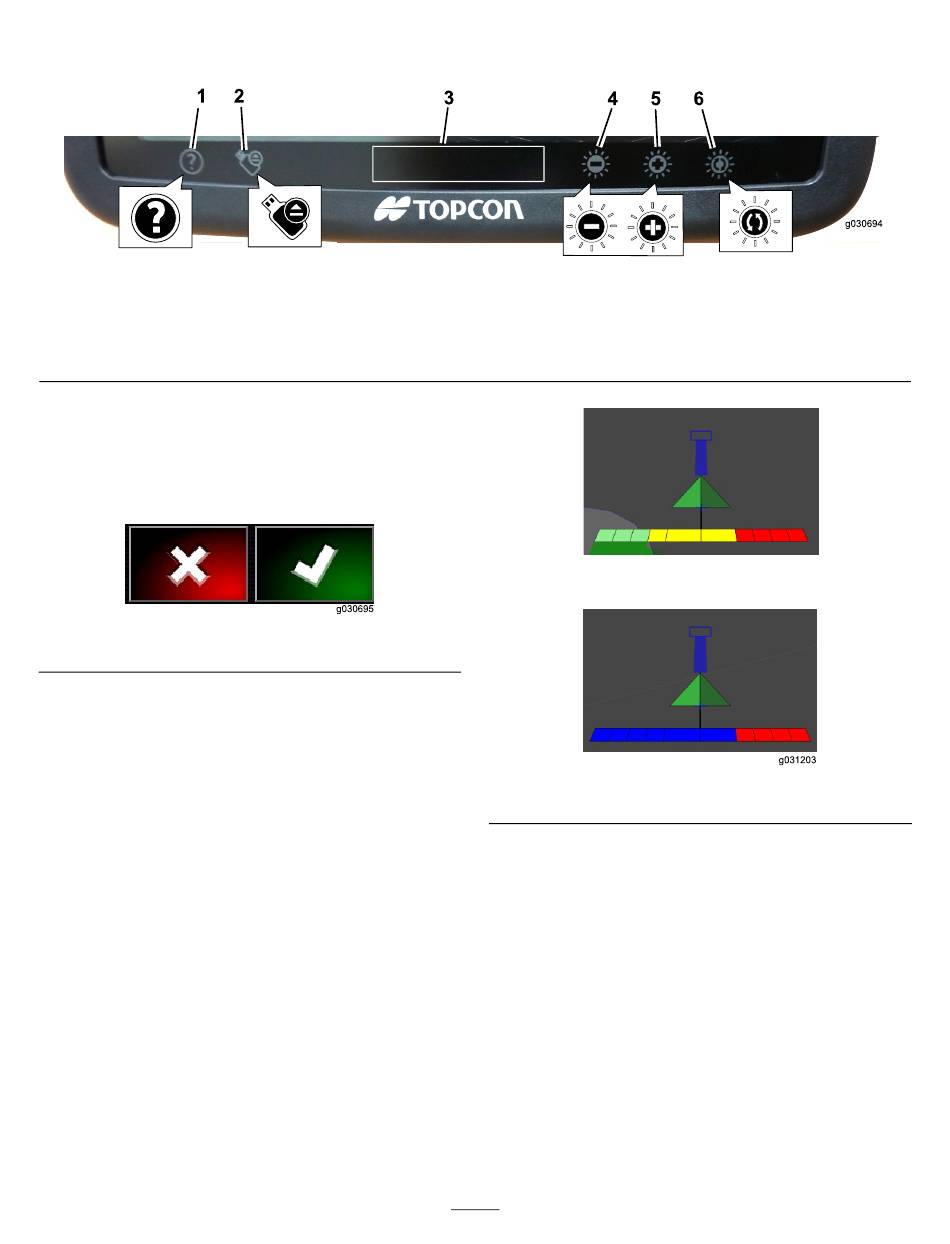

Brightness-Control Buttons
Brightness-control buttons adjust the brightness of the display
1. Help button
2. USB eject button
3. Home button
Cancel and Confirm Buttons
Use these buttons to cancel or confirm an entry or
a selection. You must select 1 of these buttons to
progress from any screen displaying them
Implement Color Indicators
These indicators show the position and direction of
the vehicle and its implement.
The implement color indicates the status of the
product application as follows
•
Red—the boom section is off.
•
Blue—the boom section is inhibited (on and not
flowing, typically due to low speed or pressure).
•
Yellow—the boom section is on and not flowing
intentionally (typically due to auto-section control
stopping the flow).
•
Green—the boom section is on and flowing.
All manuals and user guides at all-guides.com
(Figure
Figure 4
(Figure 5):
(Figure 3).
Figure 3
4. Brightness-control button
5. Brightness-control button
6. Day or night mode
4).
g030695
5
Figure 5
g030694
g031203
