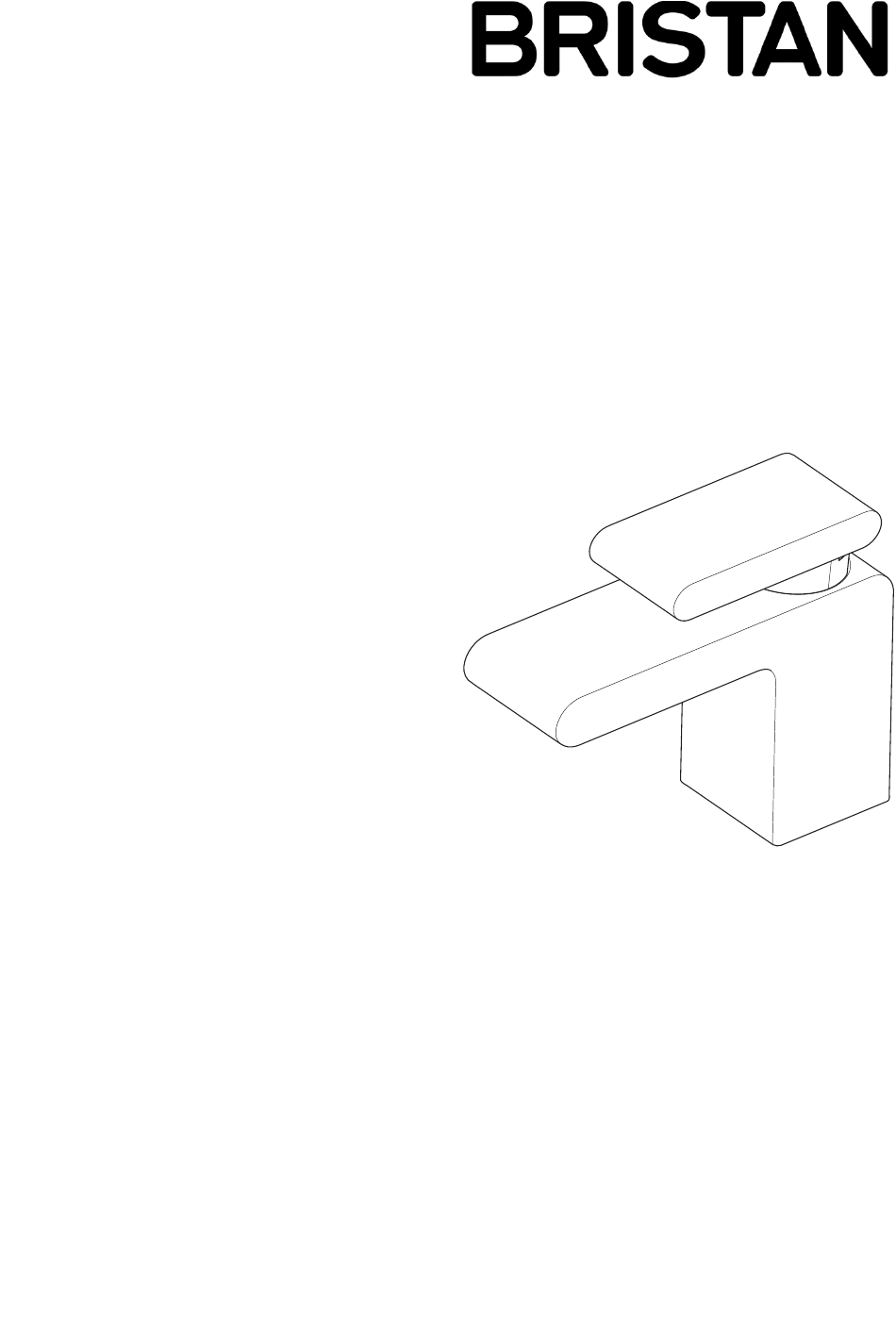

- Page 1 Installation Instructions Pivot Tap Range Models covered: PIV BAS C, PIV SABAS C, PIV 1HBF C Please keep this booklet for future reference. Installer, when you have read these instructions please ensure you leave them with the user.
-
Page 2: Table Of Contents
Contents Thank you for choosing Bristan, the UK’s leading taps and showers expert. We have designed this product with your enjoyment in mind. To ensure that it works to its full potential, it needs to be fitted correctly. These fitting instructions have been created to give you all of the information you need and, if you need any further help, please do not hesitate to contact us. -
Page 3: Important Safety Information
Important Safety Information • Please read these instructions thoroughly and retain for future use. • All products manufactured and supplied by Bristan are safe provided they are installed, used correctly and receive regular maintenance in accordance with these instructions. •... -
Page 4: General Information
General Information This product has been tested to the Water Regulations Advisory Scheme (WRAS) and satisfies the requirements of the Water Supply (Water Fittings) Regulations 1999 and current bylaws. For full Installation Requirements & Notes (IRN) please visit www.wras.co.uk/directory. Designed to comply with BS EN 200 for combination taps to be used within systems designed to BS 8558. -
Page 5: Specifications
Minimum Product Code Inlet distance from cold water tank to outlet (metres) PIV BAS C M12 15mm Plain Flexible Tails PIV SABAS C M12 15mm Compression Flexible Tails PIV 1HBF C M12 22mm Compression Flexible Tails Maximum static pressure- 10.0 bar System Requirements: Gravity fed hot &... -
Page 6: Dimensions
Dimensions Basin Mixer 1 Hole Bath Filler Dimensions are approximate and in millimetres. Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. - Page 7 Dimensions Cont. 1 Hole Basin Mixer (Side Action) Dimensions are approximate and in millimetres. Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers.
-
Page 8: Installation Requirements
Installation Requirements Flexible Connecting Pipes Care must be taken when connecting the flexible connection pipes to the household pipework to ensure they do not bend sharply and kink or twist. See below for recommended ways to fit the flexible connecting pipes. Slight 90°... -
Page 9: Installation
Installation 1. Screw the flexi tails into the bottom of the mixer body / bath filler by hand only (DO NOT OVERTIGHTEN). 2. Feed the flexi tails through the hole in the basin/bath, ensuring the washer is fitted between the body and the basin/ bath to create a water tight seal. -
Page 10: Maintenance
Tap Body limescale or debris. If necessary replace the cartridge using parts supplied by Bristan only. Replace the cartridge into the body. Replace the cartridge retaining nut, shroud and the handle. Tighten the grub screw and push fit the cap. -
Page 11: Map Of Hard Water Regions
Hard Water Regions in England and Wales* Soft to Hard to very hard moderately soft Above 200mg/l as 0 - 100mg/l as calcium carbonate calcium carbonate equivalent equivalent Slightly hard to moderately hard 100 - 200mg/l as calcium carbonate equivalent * The map above shows England and Wales only. -
Page 12: Troubleshooting
Troubleshooting Symptom Cause Remedy No flow or low Partially closed isolation valve. Open isolation valve. flow rate Instantaneous water heater Increase water flow rate or cycles on and off as flow rate or pressure through system to pressure is too low. meet required minimum working pressure of tap. -
Page 13: Notes
Notes Please use this space to add any notes you or your installer may have regarding the plumbing system / installation of this product. Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. -
Page 14: Guarantee
Guarantee At Bristan, we want to make things as • Repair under this guarantee does not easy as possible for our customers. That’s extend the original expiry date. The why we design products that are easy to guarantee on any replacement parts or fit and use, and that are quality tested to product ends at the original expiry date. - Page 15 ‘phone or with a spare part, then we’ll guarantee period, contact Bristan Care send out one of our Bristan Care Customer Service on 0844 701 6273 with engineers to take a look. Bristan Care...
- Page 16 PIV BOOK 1 Part Numbersa: Issue: D4 Useful contact details: Customer Service: 0844 7016273 Bristan Group Ltd. Customer Service Email: Birch Coppice Business Park Customercare@bristan.com Dordon Tamworth Customer Service Fax: Staffordshire 0844 7016275 B78 1SG Reception: Web: www.bristan.com 0844 7016274 Email: enquire@bristan.com...
