Installation Instructions
and User Guide
Thermostatic Recessed
Three Control Shower
Valve with Integral Twin
Stopcocks
Models covered: N2 SHC3STP C / G,
CAS SHC3STP C, PM2 SHC3STP C,
TRI SHC3STP C, PIV SHC3STP C &
ORB SHC3STP C
Please keep this booklet for future
reference.
Installer, when you have read these
instructions please ensure you leave
them with the user.
For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - info@mytub.co.uk
Advertisement
Table of Contents
Related Manuals for Bristan PM2 SHC3STP C
Summary of Contents for Bristan PM2 SHC3STP C

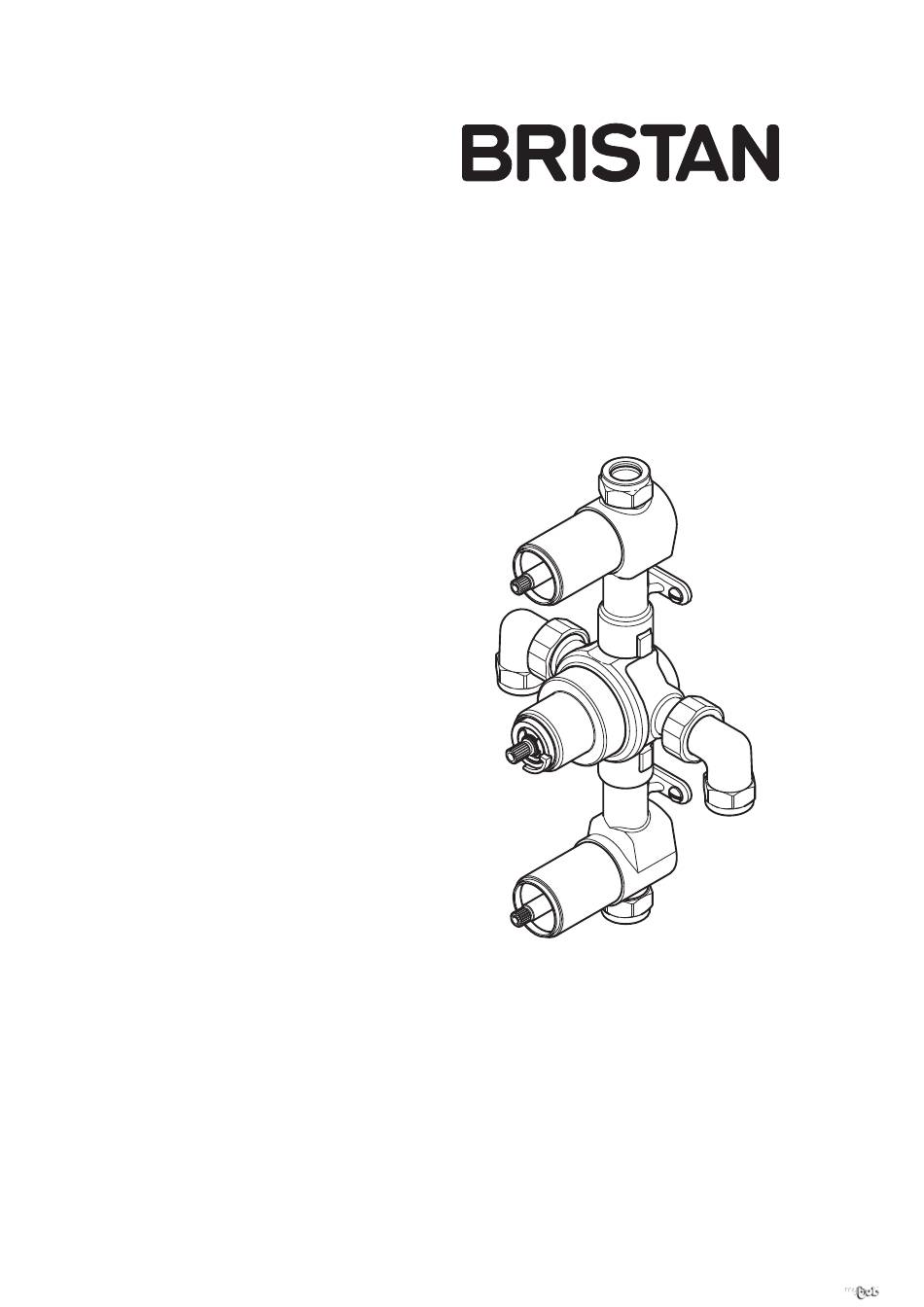

- Page 1 Thermostatic Recessed Three Control Shower Valve with Integral Twin Stopcocks Models covered: N2 SHC3STP C / G, CAS SHC3STP C, PM2 SHC3STP C, TRI SHC3STP C, PIV SHC3STP C & ORB SHC3STP C Please keep this booklet for future reference.
-
Page 2: Table Of Contents
Contents Thank you for choosing Bristan, the UK’s leading showers and taps expert. We have designed this product with your enjoyment in mind. To ensure that it works to its full potential, it needs to be fi tted correctly. These fi tting instructions have been created to give you all of the information you need and, if you need any further help, please do not hesitate to give us a call on 0844 701 6273. -
Page 3: Important Safety Information
Important Safety Information • Please read these instructions thoroughly and retain for future use. • All products manufactured and supplied by Bristan are safe provided they are installed, used correctly and receive regular maintenance in accordance with these instructions. • If you are in any doubt about your ability to install this product safely you must employ the services of an experienced qualifi... -
Page 4: General Information
General Information This product has been tested to the Water Regulations Advisory Scheme (WRAS) and satisfi es the requirements of the Water Supply (Water Fittings) Regulations 1999 and current bylaws. For full Installation Requirements & Notes (IRN) please visit www.wras.co.uk/directory. BS7600 recommends the temperature of stored water should never exceed 65ºC. -
Page 5: Product Features
Product Features 1. Single outlet stopcock This single outlet stopcock controls the on / off and fl ow of water to a single outlet e.g. Rigid riser. 2. Temperature control Adjustable temperature control. Turn the handle clockwise for a cooler temperature. -
Page 6: Specifi Cations
Specifi cations Inlet connections: 15mm compression with 150mm between centres. Minimum working pressure: 0.2 bar Note: This product has been designed to deliver a high fl ow of water on low pressure systems, however depending on the installation, type of system and shower accessories used a higher pressure maybe required to optimise the showering experence. -
Page 7: Dimensions
Dimensions (mm’s) N2 SHC3STP C / G Note: The N2 SHC3STP C/G can be installed either portrait or landscape. Min: 45 Max:75 150 Centres CAS SHC3STP C Min:58 Max:75 Centres Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - info@mytub.co.uk... - Page 8 Dimensions (mm’s) PM2 SHC3STP C Min:45 Max:75 150 Centres TRI SHC3STP C Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - info@mytub.co.uk...
- Page 9 Dimensions (mm’s) PIV SHC3STP C Min:45 Max:75 Centres ORB SHC3STP C Note: The ORB SHC3STP C can be installed either portrate (as shown) or landscape. 150 Centres Min:58 Max:75 Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - info@mytub.co.uk...
-
Page 10: Pack Contents
Pack Contents - PM2 SHC3STP C 1. Concealing plate x1 2. Valve body x1 3. Handles x3 4. Shrouds x3 5. Handle screws x3 6. Valve body fi xings x4/4 7. Inserts x2 8. Flow regulators x2 9. Filter washers x2 10. - Page 11 Pack Contents - CAS SHC3STP C 1. Concealing plate x1 2. Valve body x1 3. Handles x3 4. Shroud extension screws x3 5. Shroud extensions x3 6. Valve body fi xings x4/4 7. Inserts x2 8. Flow regulators x2 9. Filter washers x2 10.
- Page 12 Pack Contents - PM2 SHC3STP C 1. Concealing plate x1 2. Valve body x1 3. Handles x3 4. Extension screws x3 5. Spline adaptors x3 6. Valve body fi xings x4/4 7. Inserts x2 8. Flow regulators x2 9. Filter washers x2 10.
- Page 13 Pack Contents - TRI SHC3STP C 1. Concealing plate x1 2. Valve body x1 3. Handles x3 4. Extension screws x3 5. Spline adaptors x3 6. Valve body fi xings x4/4 7. Inserts x2 8. Flow regulators x2 9. Filter washers x2 10.
- Page 14 Pack Contents - PIV SHC3STP C 1. Concealing plate x1 2. Valve body x1 3. Handles x3 4. Extension screws x3 5. Spline adaptors x3 6. Valve body fi xings x4/4 7. Inserts x2 8. Flow regulators x2 9. Filter washers x2 10.
- Page 15 Pack Contents - ORB SHC3STP C 1. Concealing plates x3 2. Valve body x1 3. Handles x3 4. Extension screws x3 5. Spline adaptors x3 6. Valve body fi xings x4/4 7. Inserts x2 8. Flow regulators x2 9. Filter washers x2 10.
-
Page 16: Prior To Installation
Prior to Installation Flow Regulators This shower valve is supplied with a 5 and 7 litre per minute fl ow regulator loose in the box which must be fi tted if the shower valve is installed in conjunction with an instantaneous water heater / combination Filter boiler. -
Page 17: Installation
Installation - Front Access This installation method should be used to install the N2 & PM2 SHC3STP C. Once the shower valve has been installed Important: Water supplies to the mixer the valve fi lters and thermostatic cartride must be with hot on the left and cold on are fully accessable from the front so no the right when viewed from the front. - Page 18 Installation - Front Access 4. Fit concealing plate Note: The concealing plate can be used as a template by drawing around the plate and measuring in by 10mm to give suffi cient clearance. Run a bead of waterproof silicon sealant around the inner edge of the concealing plate.
-
Page 19: Rear Access
Installation - Rear Access This installation method should be used to install the CAS, ORB, PIV & TRI SHC3STP C. Once the shower valve has been installed the wall surface should be fi nished and tiled upto the valve. Rear access is required to allow for future servicing and maintenance of the valve fi... - Page 20 Installation - Rear Access 4. Finish wall surface Plasterboard and tile the cavity wall ensuring there is a gap between the tiles and the shower valve 5. Fit concealing plate and handles Run a bead of waterproof silicon sealant around the inner edge of the concealing plate.
-
Page 21: Wall Outlet
Installation - Wall Outlet Fitting the Wall Outlet There are two methods of fi xing the wall Backnut outlet depending on the type of wall: a: With rear access once wall fi nished Fit the rubber washer to the back of the Rubber wall outlet, place the assembly through a seal... -
Page 22: Operating The Shower
Operating the Shower 1. Single outlet stopcock This single outlet stopcock controls the on / off and fl ow of water to a single outlet e.g. Rigid riser. Turn the handle anti-clockwise to turn the flow of water on. Turn the handle clockwise to turn the flow of water off. -
Page 23: Maintenance
• Turning off the isolation valves to the shower valve. 4. Grease the seals with a silicon grease 1. Remove the temperature handle. supplied by Bristan (part number: SP-495- 0002) and carefully refit. Important: Take note of the position of the plastic stop and handle. They must 5. -
Page 24: Adjusting The Temperature
Adjusting the Temperature Adjusting the Temperature temperature of the water with a The shower valve has been factory set to thermometer. If the temperature is not 42ºC with equal (balanced) hot and cold correct, re-calibrate the shower valve: water supply pressures, with the hot water 1. -
Page 25: Troubleshooting
Troubleshooting Symptom Cause Remedy No fl ow or low Check showerhead, hose and Clean as necessary, refer to fl ow rate and fi lters for any blockage. Maintenance section (page 23). / or varying Partially closed stop or service Open stop or service valve. temperatures. - Page 26 Troubleshooting Symptom Cause Remedy Maximum water Maximum water temperature Reset maximum water temperature too set incorrectly. temperature. Refer to ‘Maximum hot or cold. Temperature setting’ in Maintenance section (page 23) and ‘Adjusting the Temperature’ (page 24) Outlet water Inlet fi lter is partially blocked. Check inlet fi...
-
Page 27: Notes
Notes Please use this space to add any notes you or your installer may have regarding the plumbing system / installation of this product. Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - info@mytub.co.uk... - Page 28 Notes Please use this space to add any notes you or your installer may have regarding the plumbing system / installation of this product. Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - info@mytub.co.uk...
- Page 29 Notes Please use this space to add any notes you or your installer may have regarding the plumbing system / installation of this product. Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisers. For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - info@mytub.co.uk...
-
Page 30: Guarantee
Guarantee At Bristan, we want to make things as • Repair under this guarantee does not easy as possible for our customers. That’s extend the original expiry date. The why we design products that are easy to guarantee on any replacement parts or fit and use, and that are quality tested to product ends at the original expiry date. - Page 31 ‘phone or with a spare part, then we’ll guarantee period, contact Bristan Care send out one of our Bristan Care Customer Service on 0844 701 6273 with engineers to take a look. Bristan Care...
- Page 32 Part Number: FI: SHC3STP Issue: D2 Useful contact details: Customer Service: 0844 7016273 Bristan Group Ltd, Customer Service Email: Birch Coppice Business Park Customercare@bristan.com Dordon Tamworth Customer Service Fax: Staffordshire 0844 7016275 B78 1SG Reception: Web: www.bristan.com 0844 7016274 Email: enquire@bristan.com Join us on...
