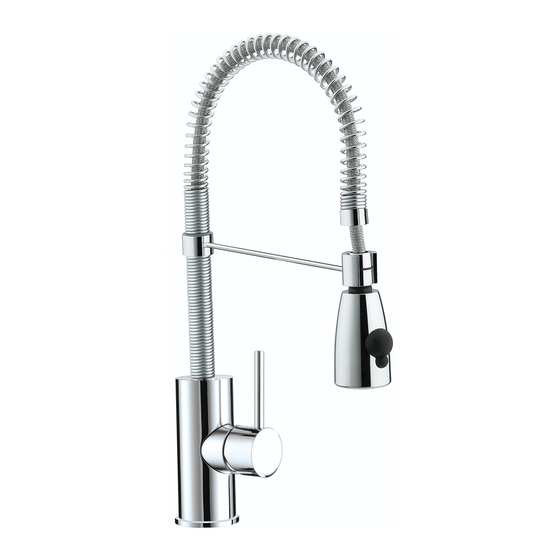

Target Monobloc Kitchen Mixer Chrome
Target Monobloc Kitchen Mixer Chrome
Target Monobloc Kitchen Mixer Chrome
Target Monobloc Kitchen Mixer Chrome
Installation Instructions & User Guide
Installation Instructions & User Guide
Installation Instructions & User Guide
Installation Instructions & User Guide
Please keep these instructions for future reference and request of replacement parts
Please keep these instructions for future reference and request of replacement parts
Please keep these instructions for future reference and request of replacement parts
Please keep these instructions for future reference and request of replacement parts
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bristan TG SNK C
Summary of Contents for Bristan TG SNK C
- Page 1 Target Monobloc Kitchen Mixer Chrome Target Monobloc Kitchen Mixer Chrome Target Monobloc Kitchen Mixer Chrome Target Monobloc Kitchen Mixer Chrome Installation Instructions & User Guide Installation Instructions & User Guide Installation Instructions & User Guide Installation Instructions & User Guide Please keep these instructions for future reference and request of replacement parts Please keep these instructions for future reference and request of replacement parts Please keep these instructions for future reference and request of replacement parts...
-
Page 2: Table Of Contents
Contents Contents Thank you for choosing Bristan, the UK’s leading taps and showers expert. We have designed this product with your enjoyment in mind. To ensure that it works to its full potential, it needs to be fitted correctly. These fitting instructions have been created to give you all of the information you need and, if you need any further help, please do not hesitate to give us a call on 0844 701 6273. -
Page 3: Important Safety Information
Important Safety Information • Please read these instructions thoroughly and retain for future use. • All products manufactured and supplied by Bristan are safe provided they are installed correctly, used correctly and receive regular maintenance in accordance with these instructions. -
Page 4: Dimensions
Dimensions Dimensions Dimensions Dimensions... -
Page 5: General Specifications
General Specifications General Specifications General Specifications General Specifications Operating pressure range (bar) Maximum static pressure – 10.0 bar NOTE: NOTE:- - - - Nominally equal (balanced) inlet supply pressures are recommended for optimum NOTE: NOTE: Performance of mixer taps. BS 6700 recommends the temperature of stored water should never exceed 65°C. A stored water temperature of 60°C is considered sufficient to meet all nominal requirements and will minimise the build up of lime scale in hard water areas. -
Page 6: Installation
Installation. Installation. Installation. Installation. Identify all components are present prior to starting installation: Part Part Part Part Pull-Out Head Pull-Out Hose* Spout Assembly including Fixation Cover* M5x5 Grub Screw* Holding Arm* Arm Connection Piece* Sealing Washers* M4x4 Grub Screw* 35mm Flat Cartridge* Cartridge Retaining Nut* Shroud* Handle Assembly including... -
Page 7: Installation
Installation cont. Installation cont. Installation cont. Installation cont. 1. Fit the tap body to the sink by putting the plinth and washer in position and securing it by fixing the Reinforcing Plate underneath the sink. Place the tap body on top of the plinth. 2. -
Page 8: Operation
Operation Operation Operation Operation Pulling/pushing the lever backwards/forwards from the mixer body will turn on/off and increase/decrease the flow of water. Moving the lever either to the left or right when in the backwards position (when the mixer is viewed from the front) will increase/decrease the water temperature. The pull out handset incorporates a push button enabling the water flow to be altered from an inner water stream to a wider outer spray pattern. -
Page 9: Guarantee
5 year parts only. Subject to proof of purchase. *Labour provided by an approved Bristan engineer. Guarantee only applies to products with a manufacturing fault. A deferred payment will be necessary in order to secure any visits by our engineers which will be charged if the problem is found not not to be a manufacturing fault. - Page 10 Note: That there are locating pins on the bottom of the cartridge that fits in holes inside the tap, to ensure it is fitted the right way round. 5. Refit brass retaining nut and reassemble lever. 6. If problem persists, contact our help line quoting the product code TG SNK C.
- Page 11 Notes: Notes: Notes: Notes:...
- Page 12 0844 701 6273 0844 701 6273 Bristan Group Limited Birch Coppice Business Park, Dordon, Tamworth, Staffordshire B78 1SG A Masco Company Website: www.bristan.com Telephone: 0844 701 6274 Facsimile: 0844 701 6275 Email: enquire@bristan.com FI (TG SNK C) – REV. D7...
