Page 1: Installation Instructions

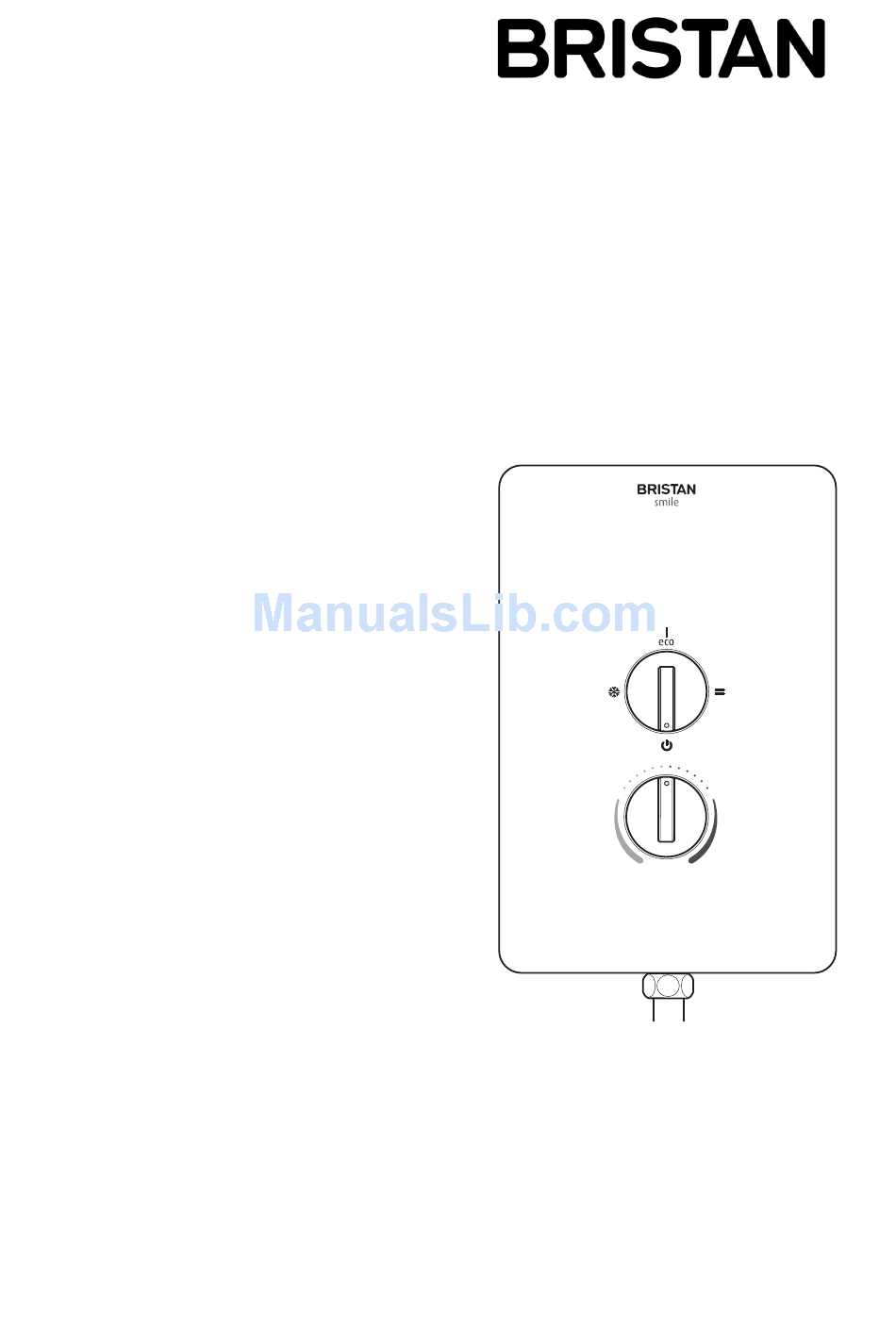

Installation Instructions and User Guide Smile Electric Shower Please keep this booklet for future reference. Installer, when you have read these instructions please ensure you leave them with the user. -
Page 2: Table Of Contents
Welcome to your new Bristan electric shower. Featuring a contemporary design with lots of fun features, Bristan’s electric shower collection has been designed to be enjoyable to fit and to use. It has also been designed and tested in the UK to all of the relevant British Standards. -
Page 3: Important Safety Information
Turn off at the mains electrical supply and refer to the Troubleshooting section (see page 18) or contact Bristan Customer Services (see page 19). • Do not crush or kink the shower hose, this could damage the hose, cause leaks and activate the pressure relief device (PRD). -
Page 4: Product Features
Product Features 1. Power Control STOP ( ) and adjustable power settings: Cold ( ), Medium (eco ) and High ( ). 2. Temperature Control Adjustable temperature control. Temperature Control Device The Temperature Control Device will activate when the temperature is set too high and the water inside the water heater gets too hot. -
Page 5: Electrical Requirements
Electrical Requirements Warning: This appliance MUST Isolating Double pole valve switch be earthed! Rating at 240V Rating at 230V Cable Size 8.5kW 7.8kW 6mm² For cable 9.5kW 8.7kW 10mm² capacity Shower unit see table 10.5kW 9.5kW 10mm² The Electrical Installation and Circuit Protection of this shower 30mA RCD. - Page 6 Electrical Requirements cont. It is a requirement that a residual current device (RCD) formerly known as an earth leakage circuit breaker (ELCB) with a tripping current of 30mA, is incorporated in the circuit. This may be part of the existing consumer unit or a separate unit. Please refer to the table below.
-
Page 7: Water Requirements
Water Requirements Double pole The installation must comply with all Water and Building switch Regulations (England) and Water By-laws (Scotland). If the shower is to be installed in a hard water area, we recommend that an in-line scale inhibitor is fitted which will prolong the life of the shower. -
Page 8: Fixing Your Shower To The Wall
Fixing Your Shower to the Wall Remove Warning: Please check for any hidden pipes and cables before cover screws drilling holes in the wall. Remove the 4 cover retaining screws and lift off the cover. Do not try to remove the control knobs from the cover. They are an integral part of the cover and must not be removed. -
Page 9: Plumbing Connections
Plumbing Connections Inlet Entry Options Select the inlet option most suited to your situation. Bottom left inlet entry Bottom right inlet entry Top left inlet entry Rear left inlet entry - Rear right inlet entry - Rear left inlet entry - requiring rear access requiring rear access using a 15mm compression elbow... - Page 10 Plumbing Connections cont. Warning: The outlet of the shower acts as a vent and must not be blocked, restricted or connected to any tap/closure device other than the handset supplied. Do not solder within 300mm of the shower unit or allow solder or flux to fall onto the casings.
- Page 11 Plumbing Connections cont. Hole Cover Fitting Back of unit Top left entry: Depending on your choice of cold-water entry direction, you may need to remove thin areas of plastic cover to facilitate pipe work entry down through the top left of the unit. Bottom entry: Depending on your choice of cold-water entry direction, fit ‘hole covers’...
-
Page 12: Electrical Connections
Electrical Connections Warning: This appliance and all connecting metal pipe work must be earthed. • Ensure that an earth continuity conductor is securely and permanently connected to all exposed metal parts of other services and appliances within the room where the shower is installed. - Page 13 Electrical Connections cont. Switch OFF the electricity supply at the consumer unit. The power cable entry point is shown on the diagram. Electrical connection to be made at the terminal block as follows: Earth cable to the terminal marked with the Earth symbol Neutral cable to the terminal marked N Live cable to the terminal marked L Important: Terminals must be fully tightened onto the cables...
-
Page 14: Fitting Your Riser Rail To The Wall
Fixing Your Riser Rail to the Wall Fitting the Riser Rail Before proceeding with fitting the rail, identify each of the items supplied using the illustration on the right. The Slider should not be removed from the rail during fitting. The underside of the slider has a button to release the slider and allows Large hole the height to be adjusted. -
Page 15: Commissioning - Testing The System
Commissioning - Testing the System Warning: Before using the shower for the first time, it should receive a final flush through to remove any remaining debris that may be in the pipe work or hose and to ensure the heater unit contains water before the electrical elements are switched on. -
Page 16: Operating The Shower
Operating the Shower Please ensure the commissioning procedure has been carried out. If you did not fit this shower yourself and you are about to use it for the first time, check with the installer to ensure he or she has run the commissioning procedure as described on page 15. -
Page 17: Maintenance
Bristan recommend E-cloth for cleaning all of our bathroom and Kitchen products. Using just water, E-cloth gives smear free, deep clean by breaking up and holding dirt, which normal cloths leave behind. -
Page 18: Troubleshooting
Troubleshooting Symptom Likely Cause/s Action/Remedy No water flow. Water isolating valve in off position. Turn on. Filter blocked. Turn off water supply, remove filter and clean. Power supply not on. Turn on. Water temperature too hot. Insufficient water flowing Clean the handset. through the shower. -
Page 19: Guarantee
The registration of your charges for parts and labour. Charges will also be levied on personal details is purely for Bristan use and the remaining cancelled appointments, unless advised to Bristan at least information helps us to make products for the future. -
Page 20: Spare Parts
Swivel Inlet Pipe Ass. Swivel Inlet Pipe x1, inc. O-ring x1 131-401 Inlet Pipe Clamp Inlet Pipe Clamp x1 131-503-SMILE Smile Front Cover Front Cover x1 131-500-S Control Dial Ass. Control Dial x1, Dial Drive x1, inc. O-ring x1, Screw x1 131-600-S-W Fixing Kit Ass. - Page 21 Spare Parts Need help? Give us a call on 0844 701 6273 and speak to one of our trained advisors.
- Page 22 Spare Parts cont. 01/03 01/03 Part No. Description Parts List Quantity 1408A0A Riser Rail End Cap Riser Rail End Cap x1 1406A0A Wall Bracket Ass. Wall Brackets x2, Wall Bracket End Caps x2, Screws x2, Wall Plugs x2 207041 Riser Rail Ass. Riser Rail x1, Riser Rail End Caps x2 1625A0A Slider/Handset Holder...
- Page 24 Issue FI ES Smile -B Part Number 131 - 722 Bristan Group Ltd. Birch Coppice Business Park Dordon Tamworth Staffordshire B78 1SG Web: www.bristan.com Email: enquire@bristan.com A Masco Company...
