UG-1829
Chip View
Double-clicking the AD9081, AD9082, AD9986, or AD9988
icon in the board view opens the chip view. The chip view enables
the user to customize the AD9081, AD9082, AD9986, or
EVAL-AD9081/EVAL-AD9082/EVAL-AD9986/EVAL-AD9988
CHIP VIEW TAB
PULL-DOWN MENU
CLOCK OPTIONS
OPTIONS TO CONFIGURE
DATAPATH

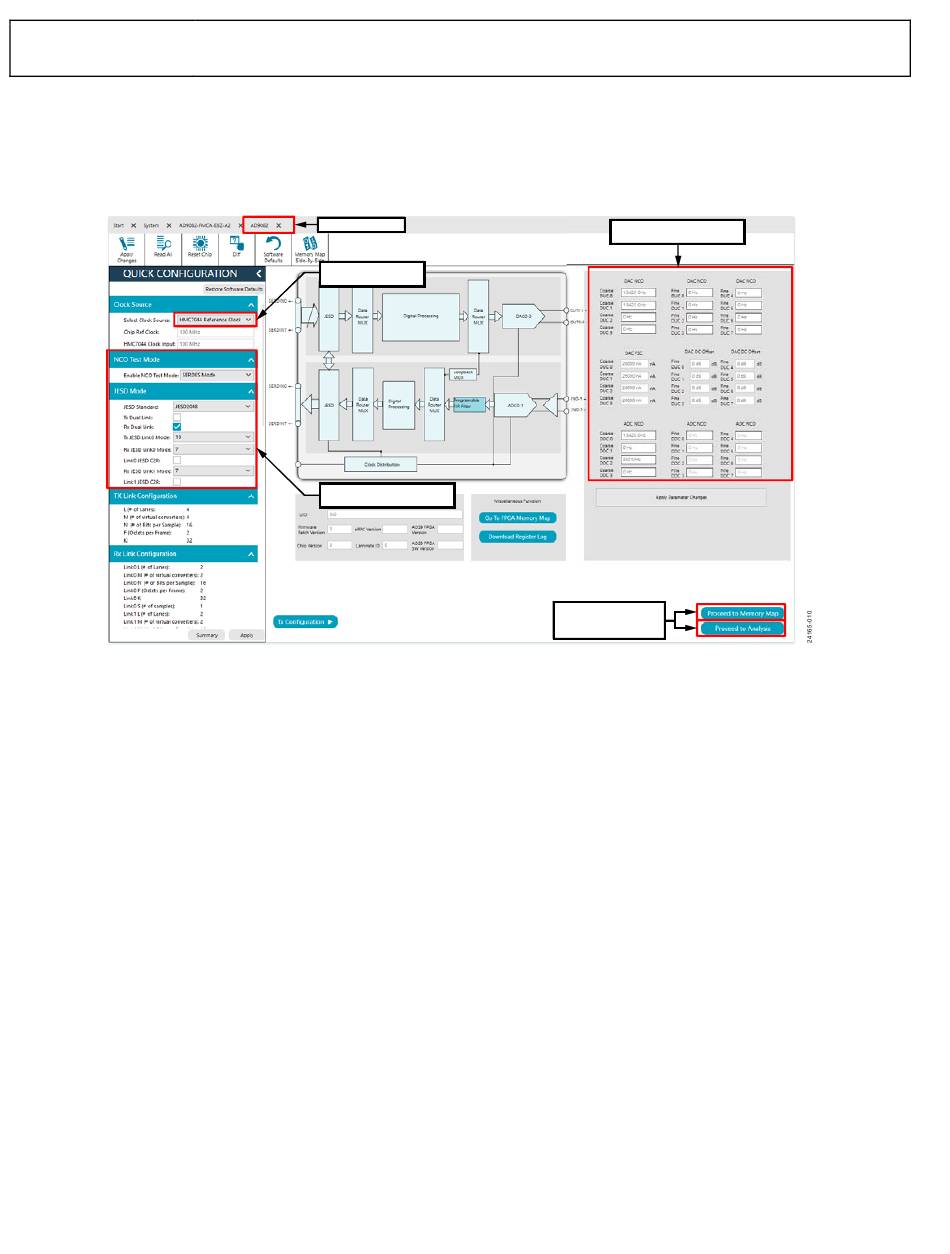

Figure 14. AD9082 Chip View Tab Detail
AD9988 beyond the functions available in the board view. Use
the QUICK CONFIGURATION pane in the chip view if using
a direct external clock. Figure 14 shows the details of the chip
view for the AD9082 as an example.
MEMORY MAP AND
ANALYSIS WINDOW
Rev. 0 | Page 8 of 26
QUICK CONFIGURATION
FOR NCO FREQUENCIES
ACCESS TO
User Guide
