EVALUATION BOARD HARDWARE SETUP

DETERMINE THE CLOCK SOURCE

Determine whether the AD9081-FMCA-EBZ, AD9082-FMCA-
EBZ, AD9986-FMCB-EBZ, or AD9988-FMCB-EBZ is set to the
external clock or on-board HMC7044
C4D, C5D, and C6D capacitors on the evaluation board chosen. By
default, the HMC7044 clock is enabled (C3D and C5D are
placed on the evaluation board, and C4D and C6D are do not
insert (DNI)). If using a direct external clock, remove the C3D
and C5D capacitors and place the C4D and C6D capacitors on the
evaluation board. The capacitors are 0.1 μF, size 0201 (imperial) or
size 0603 (metric). For additional details, see Figure 18 and
Figure 19.
DEFAULT CLOCKING SCHEME FOR AD9081-FMCA-
EBZ, AD9082-FMCA-EBZ, AD9986-FMCB-EBZ, OR
AD9988-FMCB-EBZ
The default clocking scheme for these evaluation boards uses
the on-chip phase-locked loop (PLL) within the AD9081, AD9082,
DIRECT EXTERNAL CLOCK INPUT

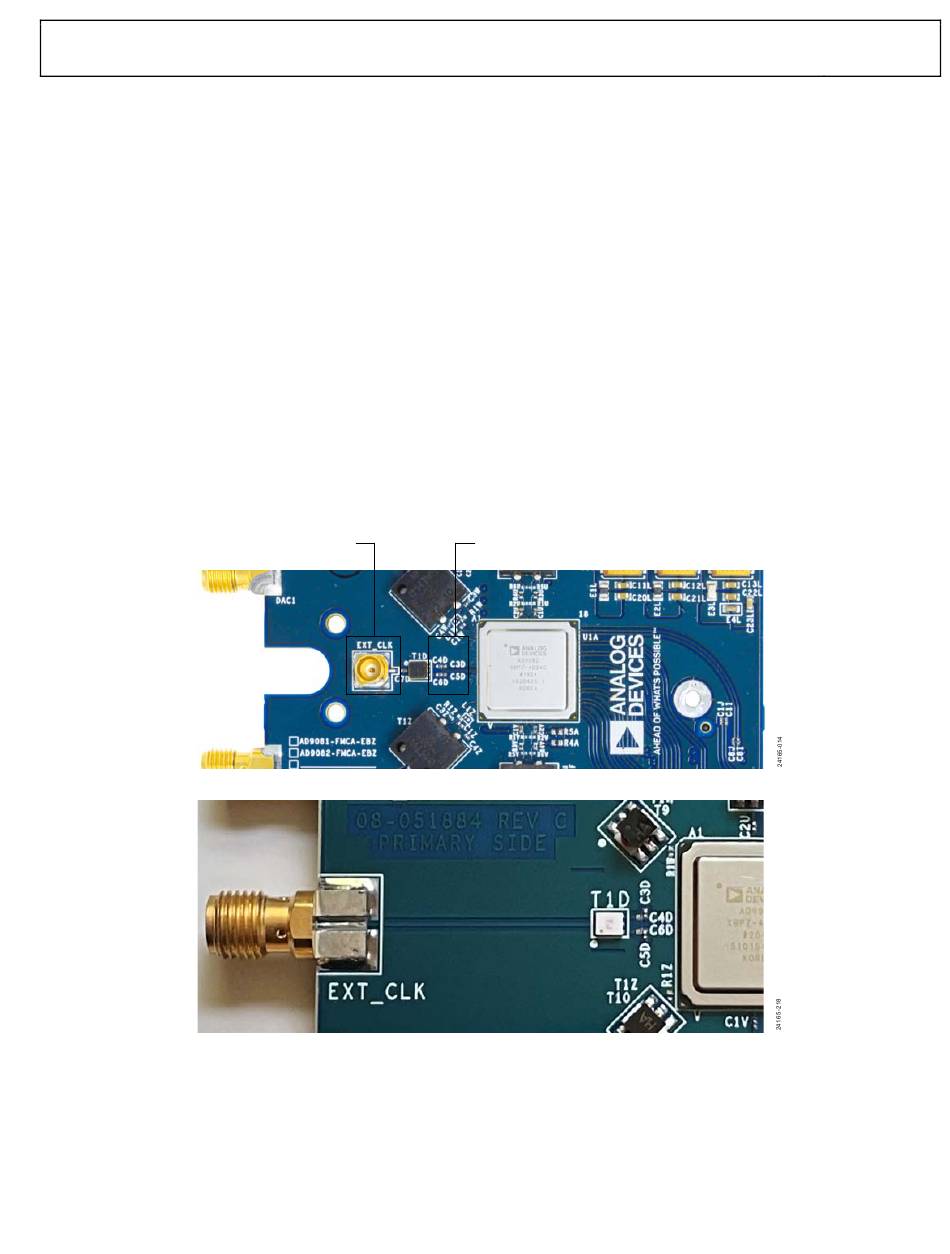

Figure 18. Capacitor Position for Direct External vs. On-Board HMC7044 Clocking (Showing the AD908x-FMCA-EBZ)
Figure 19. Capacitor Position for Direct External vs. On-Board HMC7044 Clocking (Showing the AD998x-FMCB-EBZ Evaluation Board)
clock by checking the C3D,
(SMP-F)
Rev. 0 | Page 11 of 26
User Guide
AD9986, or AD9988. The HMC7044 provides the reference
input to the chip. The evaluation board provides all the necessary
clocks for conducting a quick evaluation of the device, including
the auxiliary clocks needed by the FPGA in the
board to set up the JESD204B or JESD204C link. The clocking
scheme is shown in Figure 20. As shown in Table 1, the reference
frequencies used by the two boards (AD908x-FMCA-EBZ or
AD998x-FMCB-EBZ) are different. Therefore, each board only
supports the integer multiples of the crystal oscillator that are
on the evaluation board. The plugin only supports the integer
multiples of the crystal oscillator that are installed on the
evaluation board. If a different clock frequency is required for
evaluation, the user must modify the evaluation board to accept
an external clock by following the instructions previously listed.
This modification also necessitates an additional clock source
for the ADS9-V2EBZ. Refer to Figure 30 for additional details
on the instrument setup.
• PLACE C4D AND C6D FOR DIRECT EXTERNAL CLOCK INPUT
• C3D AND C5D PLACED BY DEFAULT
UG-1829
ADS9-V2EBZ
