6.
Select the options for the other sections (TX Link
Configuration, Rx Link Configuration, and Clock
Configuration) in the QUICK CONFIGURATION pane
as shown in Figure 31.
7.
Click Apply to open the Quick Configuration Summary
pane.

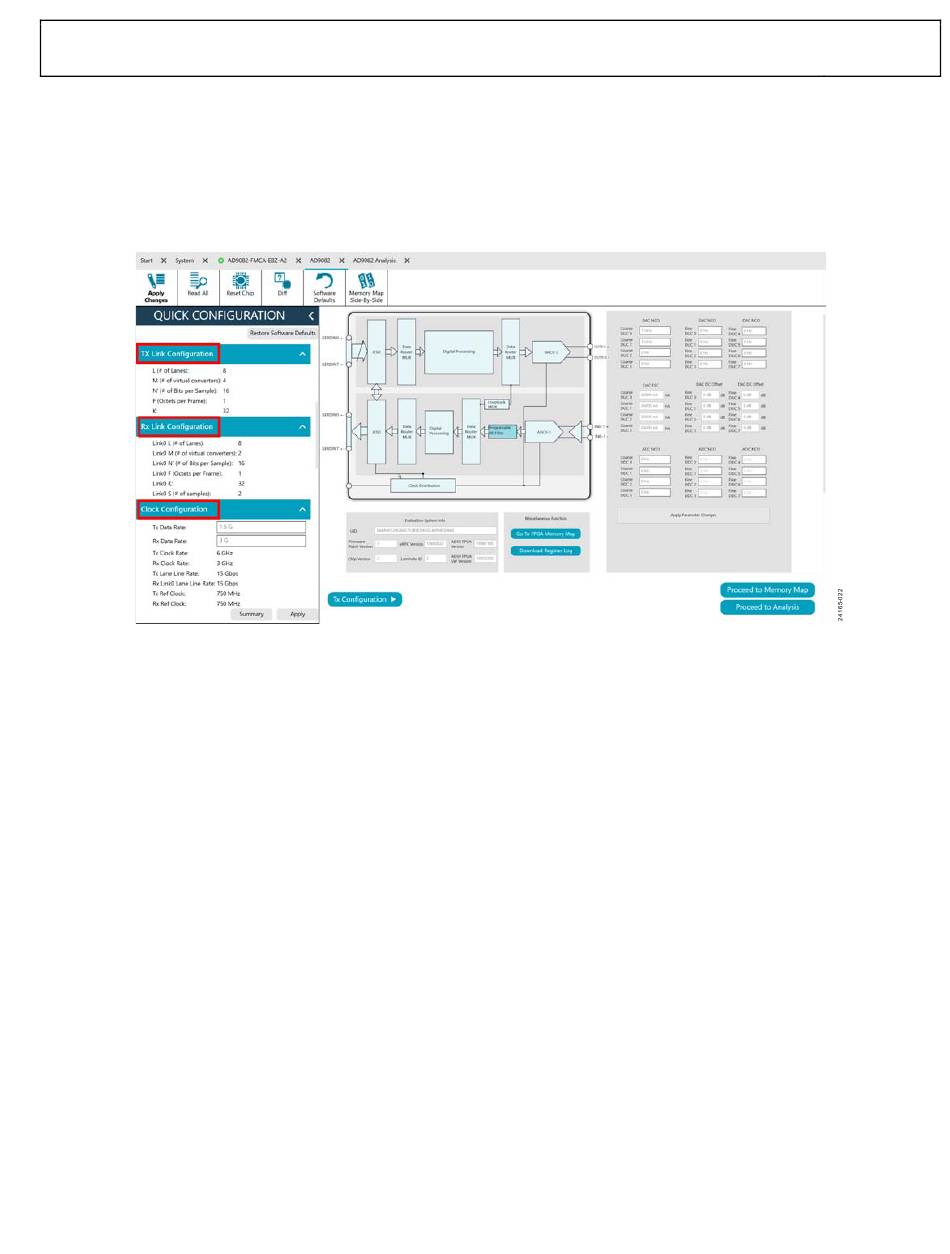

Figure 31. Configuring the
AD9081
or
AD9082
for Full Bandwidth Mode Using Chip View and the Direct External Clock
Rev. 0 | Page 23 of 26
User Guide
8.
Click the Proceed to Analysis button for further analysis.
See the ADC Analysis and DAC Output Setup section and the
Additional Use Cases and Customization section for more
additional details.
UG-1829
