DAC WAVEFORM GENERATION USING
DPGDownloaderLITE SOFTWARE
To generate a waveform using the DPGDownloaderLite software,
open DPGDownloaderLite (Start > All Programs > Analog
Devices > DPGDownloaderLite) within the ACE software and
ensure the evaluation board is displaying the product number
EVAL-AD9081/EVAL-AD9082/EVAL-AD9986/EVAL-AD9988

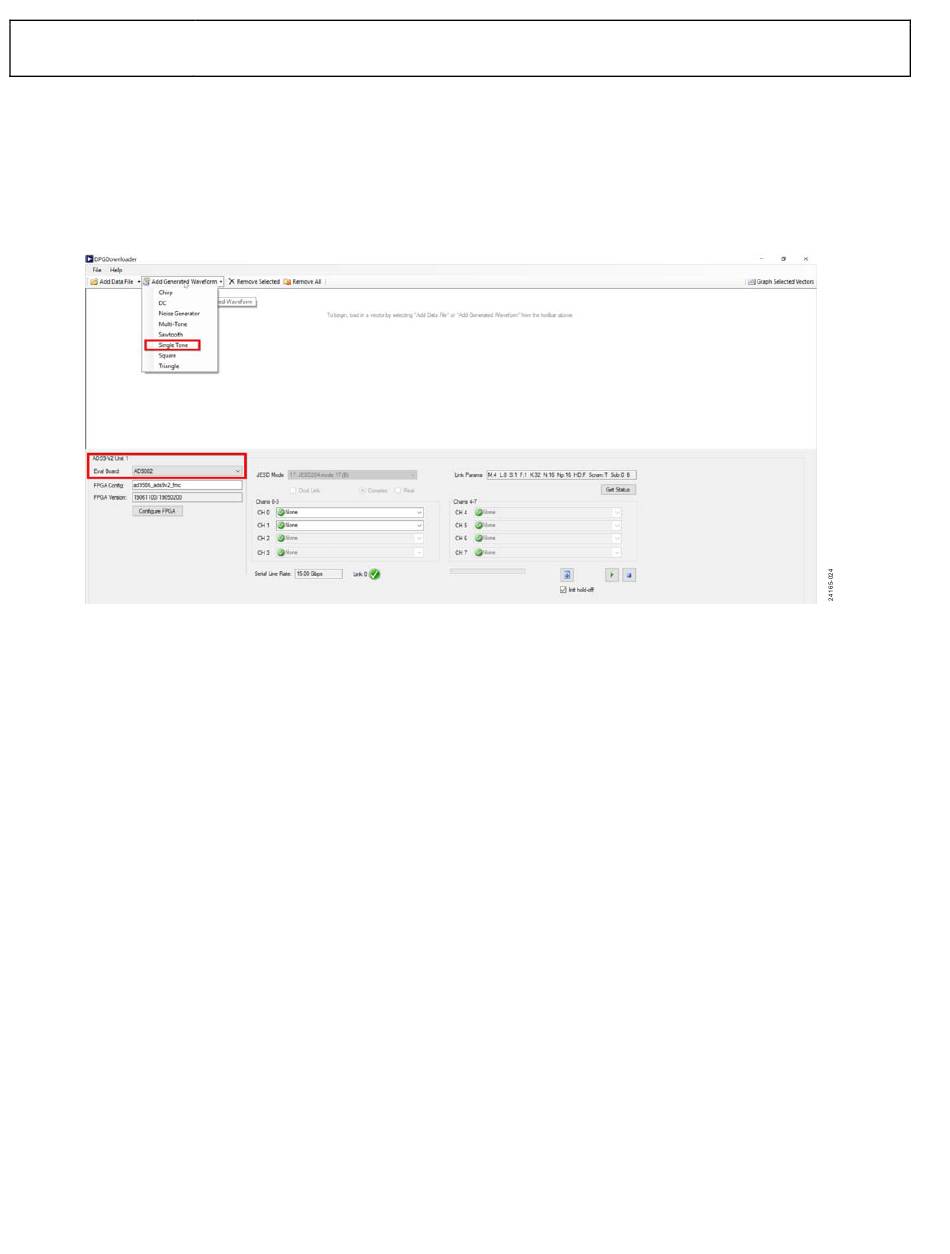

Figure 26. Single-Tone Generation
matching the hardware used. Ensure AD9081, AD9082, AD9986,
or AD9988 is selected under Eval Board (AD9082 is shown in
Figure 26).
Next, select Single Tone from Add Generated Waveform (see
Figure 26).
Rev. 0 | Page 20 of 26
