UG-1829

EVALUATION BOARD OVERVIEW

BOARD MODELS

The different board models are all listed in Table 1.
Certain early revisions of the evaluation boards shipped with a
122.88 MHz on-board crystal oscillator. The
designed to detect the evaluation board and make it function
appropriately.
Table 1. MxFE™ Evaluation Board Hardware Summary
Evaluation Board
Model Number Devices Supported
AD9081-FMCA-EBZ AD9081/AD9209/AD9177
AD9082-FMCA-EBZ AD9082/AD9207
AD9986-FMCB-EBZ AD9986
AD9988-FMCB-EBZ AD9988
1 The AD9207, AD9209, and AD9177 do not have individual evaluation boards. The ACE plugin has specific modes that can be used within the AD9081-FMCA-EBZ for
either the AD9209 or AD9177 and within the AD9082-FMCA-EBZ for the AD9207.
AD9082-FMCA-EBZ
SMA
CABLES
EVAL-AD9081/EVAL-AD9082/EVAL-AD9986/EVAL-AD9988
ACE plugin is
1
Power Delivery
Via a FPGA mezzanine card
(FMC) using the μModule
and a low dropout (LDO)
regulator
Via a FMC connector using
the μModule and a LDO
regulator
An external 12 V using the
ADP5056
regulator
An external 12 V using the
ADP5056 and a LDO
regulator
ADS9-V2EBZ

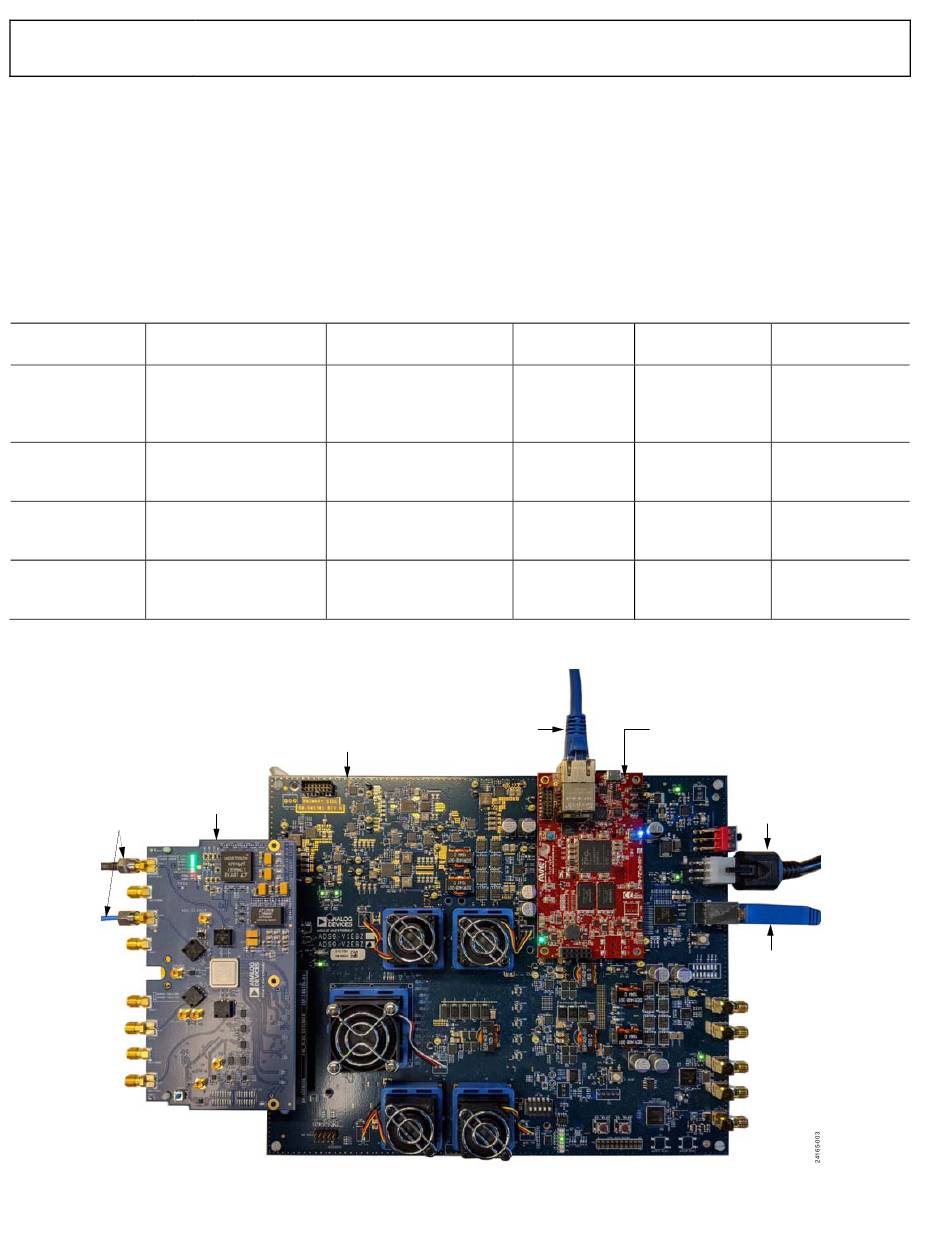

Figure 5. Bench Setup for the Evaluation of the AD9081, AD9082, AD9986, or AD9988

EVALUATION BOARD CONNECTION OVERVIEW

Figure 5 shows the basic hardware setup required to evaluate
the AD9081, AD9082, AD9986, or AD9988. Note that the
AD9082-FMCA-EBZ is shown in Figure 5 as an example. This
setup uses the on-board clock to manage the clocks for the
AD9082 as well as the FPGA for proper functioning of the
transceivers.
Analog Front-
End Balun
BALH-0009SMG
BALH-0009SMG
TCM1-83X/
and a LDO LDB184G6
TCM1-83X/
LDB184G6
ETHERNET CABLE
Rev. 0 | Page 4 of 26
User Guide
Clock Input On-Board Crystal
Network Oscillator (MHz)
SMP + BAL-0416 100
SMP + BAL-0416 100
SMA + NCR2-123+ 122.88
SMA + NCR2-123+ 122.88
MICROZED BOARD
POWER
CABLE
USB 3.0
TYPE B
