TE Connectivity HT11K Operating Instructions Manual
Hand tool nanomqs 0.13-0.35 sq.mm
Hide thumbs
Also See for HT11K:
- Operating instructions manual (7 pages) ,
- Operating instructions manual (14 pages)
Subscribe to Our Youtube Channel
Related Manuals for TE Connectivity HT11K
Summary of Contents for TE Connectivity HT11K

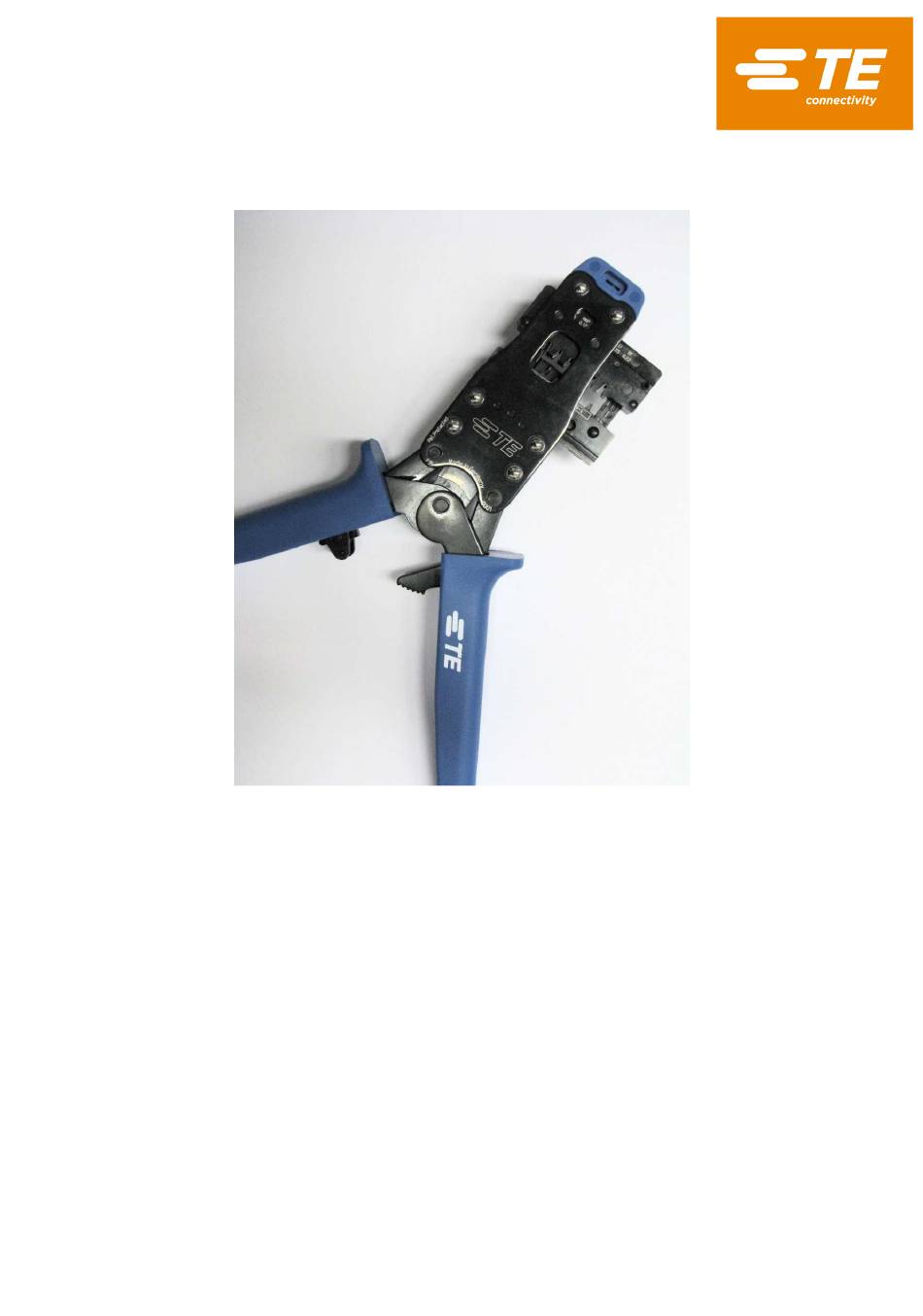

- Page 1 OPERATING INSTRUCTIONS HT11K Hand Tool NANOMQS 0.13-0.35 SQ.MM Document number: 411-18608-1_Rev.A TE Connectivity (TE) PN: 4-744017-9 Language: en (Translation of the original German version)
- Page 2 Certified in accordance with ISO 14001 and ISO/TS 16949:2002 © 2016 TE Connectivity Germany GmbH. All Rights Reserved. NanoMQS, TE Connectivity and TE connectivity (logo) are brands. Other product or company names may be trademarks of their respective owners.
-
Page 3: Table Of Contents
HT11K Hand Tool NANOMQS 0.13-0.35 SQ.MM Table of Contents Revisions ......................2 Revision history ........................2 Introduction ..................... 2 About these operating instructions ..................2 Signs and symbols used in this document ................2 2.2.1 Instructions ..........................3 2.2.2 Notes ............................3 Abbreviations ........................... -
Page 4: Revisions
Table 1: Revision history Introduction About these operating instructions These operating instructions describe the use and operation of the HT11K hand tool and the necessary maintenance measures. All persons using the hand tool must therefore be familiar with these operating instruc- tions and follow them. -
Page 5: Instructions
HT11K Hand Tool NANOMQS 0.13-0.35 SQ.MM 2.2.1 Instructions Instructions are marked as follows: For action steps For action results 2.2.2 Notes General note on operation/use. Abbreviations Abbrevia- Meaning tion TE P/N TE Connectivity part number Table 2: Abbreviations used General Safety Instructions The hand tool has been manufactured in line with current industry standards and recog- nised safety rules. -
Page 6: Safety Measures
HT11K Hand Tool NANOMQS 0.13-0.35 SQ.MM The following NanoMQS terminals can be processed with the hand tool: Diameter Terminal Terminal PN TE processing specification 0.13 – 0.17 mm NanoMQS 2236905-x Appl. Spec.114-94288 Appl. Spec.114-18022 0.22 – 0.35 mm NanoMQS 1-2236905-x Appl. -
Page 7: Description
HT11K Hand Tool NANOMQS 0.13-0.35 SQ.MM Description Functional description Crimping is performed by squeezing the handles together. Suitable crimp terminals are crimped using dies. The ratchet mechanism of the hand tool has resting points which click when closing the handles. -
Page 8: Set-Up
HT11K Hand Tool NANOMQS 0.13-0.35 SQ.MM Set-up Cross-section setting Based on the wire cross-section and the relevant processing specification, determine the right crimping die for the terminal to be processed. Proceed as follows to crimp the termi- nal: Close the hand tool until the locking mechanism allows you to open the handles. -
Page 9: Operation
HT11K Hand Tool NANOMQS 0.13-0.35 SQ.MM Operation ATTENTION! Fatigue symptoms Prolonged use of mechanical hand tools can lead to fatigue symptoms, also called "cumulative trauma disorders", such as tendon sheath inflammation. Hand tools are only intended for occasional use with low stress levels. -
Page 10: Repair And Maintenance
HT11K Hand Tool NANOMQS 0.13-0.35 SQ.MM Figure 4: Crimp terminal (left), check the crimped terminal (right) Then you can remove the crimped terminal from the crimping die. Ensure that the wire stop is opened. If the terminal is stuck, jiggle it slightly to remove it from the ter- minal holder. -
Page 11: Disposal
HT11K Hand Tool NANOMQS 0.13-0.35 SQ.MM Disposal The hand tool can be disposed of as normal waste or as recyclable waste where possi- ble. Disposal must take place in compliance with the local regulations. In case of doubt, the hand tool can be sent to TE for disposal. See Section 9 for contact details.
