Savant ICC-TP00 Quick Start Manual

In-Wall Control Dock for iPod touch® (PoE): ICC-TP00

Description

Savant's ICC-TP00 transforms the Apple
into a cost-effective wired in-wall touch panel providing
a new and exciting touch interface option. This dock is
Powered using Power-over-Ethernet (PoE) standard
IEEE 802.3af.
The ICC-TP00 is comprised of an in-wall docking
station with a low-profile magnetically attached bezel.
The iPod touch is powered via the dock, and its touch
screen is used for wired navigation and control of
Savant automation and control solutions.
The ICC-TP00 is specifically designed as a fixed
docking solution and is not intended to be removed.
The iPod touch is placed in the docking station and
mechanically held with a locking fastener. In addition, it
includes a removal notification feature, which is useful
The Savant! In-Wall Wired Charging & Control Dock (ICC-T000) Quick Reference Guide
for custom alerts in the event of the iPod touch is being
provides the information necessary to install the In-Wall Wired Charging & Control Dock for
removed without permission.
Apple iOS devices.

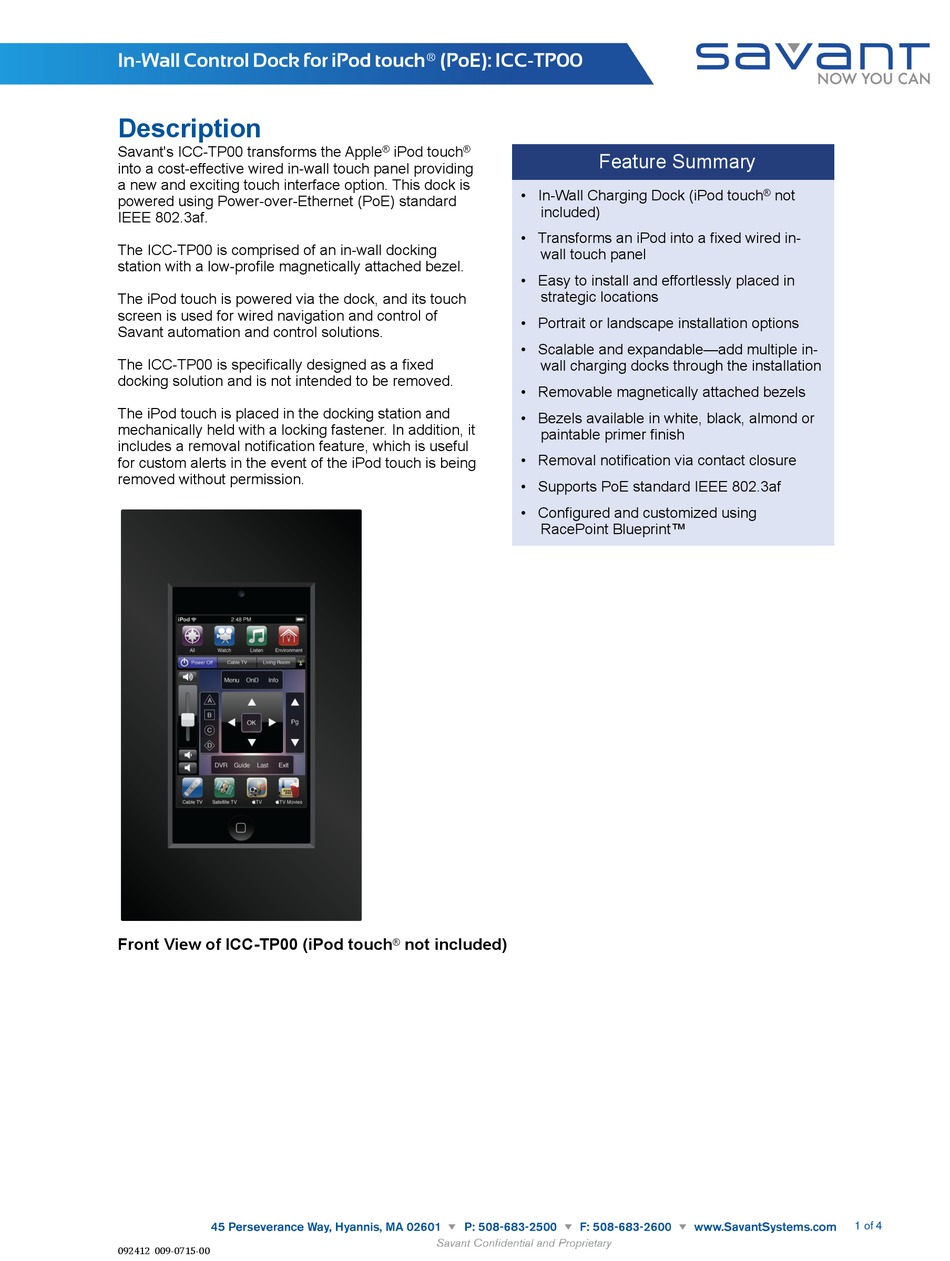

Front View of ICC-TP00 (iPod touch

Box Contents

(1) In-Wall Wired Charging & Control Dock (ICC-T000)
(1) Cut out template (009-0245-xx)
(1) Installation Kit (075-0106-xx)
(1) 24V DC 60W power supply (025-0046-xx)
•
(1) Power Cable (2 ft) (064-0048-xx) or appropriate international cord
•
(4) #6 x 1.5 Screw (039-0173-xx)
•
(4) #6-32 x 2.25 Screw (039-0209-xx)
•
(2) 2-position, Phoenix Connector (028-9160-xx)
•
(1) Quick Reference Guide (this document)
Accessories
(1) In-Wall Bezel for iPod 1-Pack (BZB/W/A/P-1iPod-xx) Black/White/Almond/Primer
(1) In-Wall Bezel for iPod 5-Pack (BZB/W/A/P-5iPod-xx) Black/White/Almond/Primer
(Single color per 5-Pack)
(1) Construction Box for In-Wall Dock (RIB-IT00)
Specifications
Environmental
Operating Temperature 32º to 104º F (0º to 40º C)
Operating Humidity 10% to 90% Non-condensing
In-Wall Dock - Dimensions and Weight
Dimensions (H x W x D) 6.3 in x 3.6 in x 2.5 in (16.3 cm x 9.1 cm x 6.4 cm)
Weight 1.0 lb/0.45 kg
In-Wall Dock Bezel - Dimensions and Weight
092412 0 09-­‐0715-­‐00
Dimensions (H x W x D)* 6.4 in x 3.7 in x 0.14 in (16.3 cm x 9.4 cm x 0.35 cm)
Weight 0.25 lb/0.11 kg
Power
® iPod touch ®
• In-Wall Charging Dock (iPod touch
included)
• Transforms an iPod into a fixed wired in-
wall touch panel
• Easy to install and effortlessly placed in
strategic locations
• Portrait or landscape installation options
• Scalable and expandable—add multiple in-
wall charging docks through the installation
In-Wall Wired Charging & Control Dock • Removable magnetically attached bezels
(ICC-T000)
• Bezels available in white, black, almond or
Quick Reference Guide
paintable primer finish
• Removal notification via contact closure
• Supports PoE standard IEEE 802.3af
• Configured and customized using
RacePoint Blueprint™
not included)
®

Feature Summary

®
Wiring To Dock
Wiring and Pinouts
In-Wall Wired Charging Dock 24V DC
+ (Positive) White
- (Negative) Black
Installation Without Rib-It00 Construction Box
Note: The iPod dock can be installed in either landscape or portrait orientation.
1. Connect the 24V DC power supply to the In-Wall Dock and route inside the wall
opening.
2. Route the Cat5 cable to inside the wall opening.
3. After making the connections to In-Wall Dock, position the unit in the opening and
secure with the four rotating mounting tabs.
4. Turn the tab screws clockwise; the tabs will grab the interior wall. Tighten until snug.
Do not over tighten.
Caution: Do not use a powered screwdriver to tighten the tabs; the tabs can be easily over
tightened.
5. Position the bezel over the In-Wall Dock and press, ensuring that the wall plate seats
properly. (See below)
6. Configure the installation using RacePoint Blueprint".
Note: The In-Wall Dock also has optional screw mounting holes for optional stud mounting.
Optional Pre/Post-Construction Box
Note: The In-Wall Dock Assembly is not a weather resistant unit. Do not locate in a damp or
humid area.
The ICC-T000 can be installed with or without an in-wall construction box. The in-wall
construction box (RIB-IT00) is optional and can be used pre-or post-construction to save the
space required for the ICC-T000, ICC-TP00 or IDC-T000 and to terminate the roughed in
wires.
not
009-0427-01
ICC-T000-xx
24V DC In
24V DC Return
1 of 4
