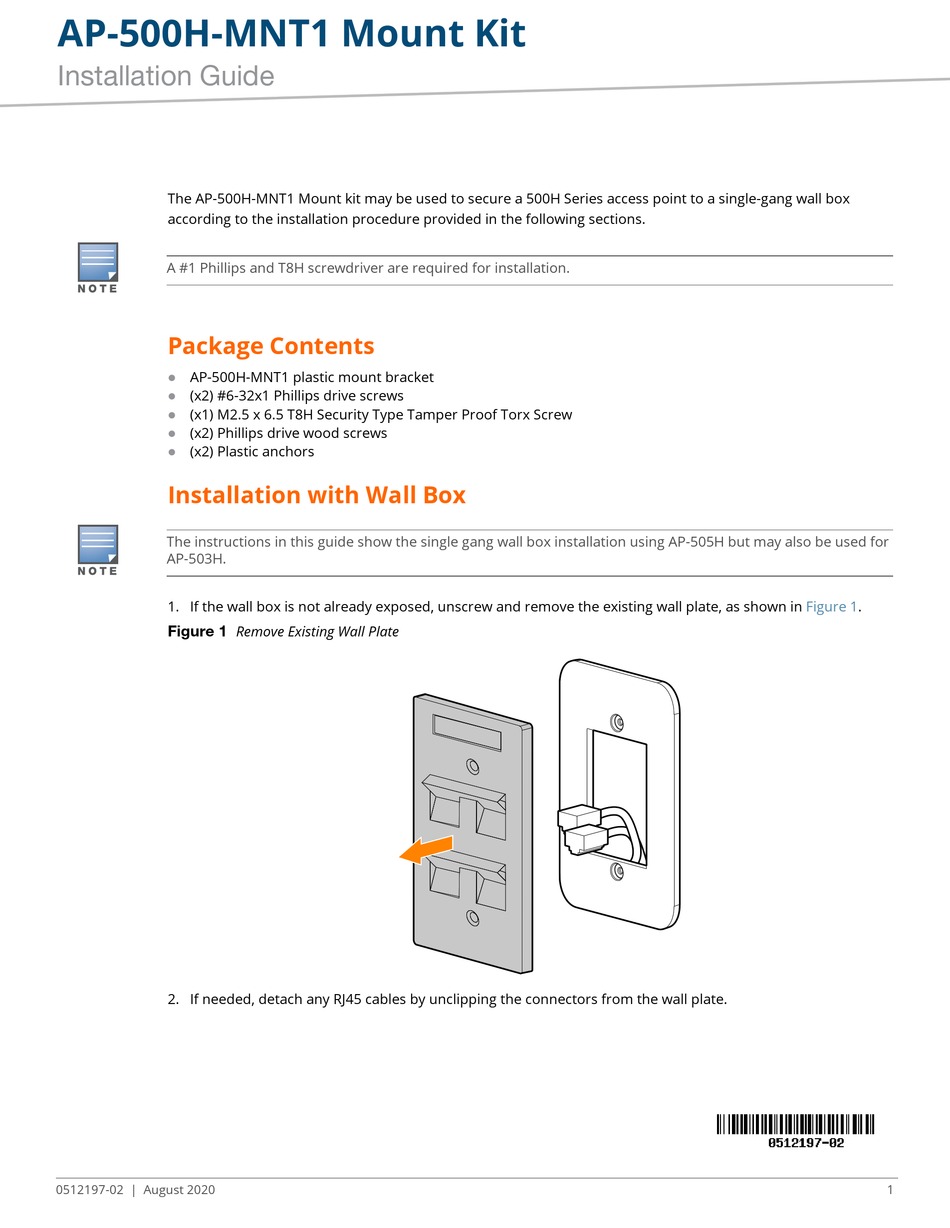

AP-500H-MNT1 Mount Kit
Installation Guide
The AP-500H-MNT1 Mount kit may be used to secure a 500H Series access point to a single-gang wall box
according to the installation procedure provided in the following sections.
A #1 Phillips and T8H screwdriver are required for installation.

Package Contents

AP-500H-MNT1 plastic mount bracket
(x2) #6-32x1 Phillips drive screws
(x1) M2.5 x 6.5 T8H Security Type Tamper Proof Torx Screw
(x2) Phillips drive wood screws
(x2) Plastic anchors

Installation with Wall Box

The instructions in this guide show the single gang wall box installation using AP-505H but may also be used for
AP-503H.
1. If the wall box is not already exposed, unscrew and remove the existing wall plate, as shown in
Figure 1
2. If needed, detach any RJ45 cables by unclipping the connectors from the wall plate.
0512197-02 | August 2020
Remove Existing Wall Plate
Figure
1.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP-500H-MNT1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Aruba AP-500H-MNT1

  • Page 1 AP-500H-MNT1 Mount Kit Installation Guide The AP-500H-MNT1 Mount kit may be used to secure a 500H Series access point to a single-gang wall box according to the installation procedure provided in the following sections. A #1 Phillips and T8H screwdriver are required for installation.
  • Page 2 Route Ethernet Cable Using Bottom Center Pad Printing 6. Align the slots on the back of the access point against the guide posts and slots on the mount, then slide the access point down, as shown in Figure AP-500H-MNT1 Mount Kit | Installation Guide...
  • Page 3 Figure 5 Screw In Security Screw 8. (Optional) If the access point requires a DC power adapter, a power cable may be inserted into the socket located on the side of the access point. | Installation Guide AP-500H-MNT1 Mount Kit...
  • Page 4 Route Ethernet Cable Using Bottom Center Pad Printing Figure 7 6. Align the slots on the back of the access point against the guide posts and slots on the mount, then slide the access point down, as shown in Figure 8 AP-500H-MNT1 Mount Kit | Installation Guide...
  • Page 5 Figure 9 Screw In Security Screw 8. (Optional) If the access point requires a DC power adapter, a power cable may be inserted into the socket located on the side of the access point. | Installation Guide AP-500H-MNT1 Mount Kit...
