This mount kit supports multiple AP models. All installation images show the 225 AP.
N O T E
Package Contents
AP-220-MNT-W2 Mounting Bracket
Plastic Shim
2x Ethernet Cable Adapter
T10 Torx Security Screw
Installation
Complete the following steps to install your access point using the AP-220-MNT-W2.
Ethernet Cable Routing Options
There are three options for routing the Ethernet cable depending the placement of your AP in relation to the
source of the Ethernet cable.
Ethernet Cable From Below AP
1. Route the Ethernet cable(s) through the channel in the rear of the mount.
2. Loop the Ethernet cable(s) over the top of the mount and direct the cable(s) through the opening leading
to the AP's Ethernet ports.
3. If required, route the power cable through the bottom right of mounting bracket.
4. Install the mounting bracket as described in

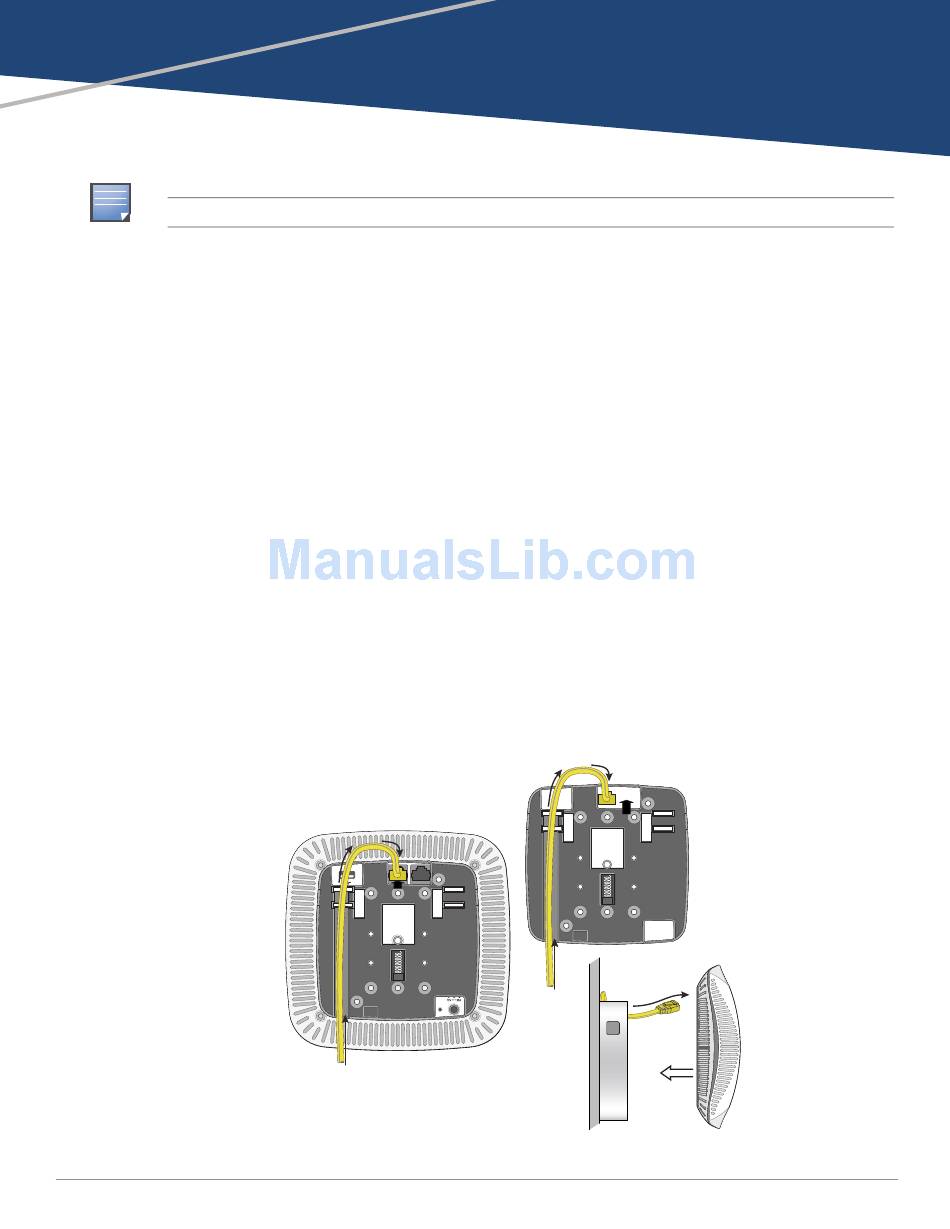

Figure 1 Ethernet cable from below the AP
0511290-05 |
October 2014
AP-220-MNT-W2 Mounting Kit
Installation Guide
page 3.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aruba AP-220-MNT-W2
Summary of Contents for Aruba AP-220-MNT-W2
- Page 1 T10 Torx Security Screw Installation Complete the following steps to install your access point using the AP-220-MNT-W2. Ethernet Cable Routing Options There are three options for routing the Ethernet cable depending the placement of your AP in relation to the source of the Ethernet cable.
- Page 2 2. If required, route the power cable through the bottom right of mounting bracket. 3. Install the mounting bracket as described in “Installing the Mounting Bracket” on page 3. Figure 3 Using the Ethernet cable adapter AP-220-MNT-W2 Mounting Kit | Installation Guide...
- Page 3 7. While still pushing the metal slider, align the mounting posts on the bracket with the mounting holes shown in Figure 8. Install the T10 Torx security screw into the screw hole on the bottom of the mounting bracket, next to slider to complete the installation. AP-220-MNT-W2 Mounting Kit | Installation Guide...
- Page 4 Figure 5 Attaching the AP to the Mounting Bracket Figure 6 Completed Installation AP-220-MNT-W2 Mounting Kit | Installation Guide...
