AP-MNT-MP10-X Mount Kit
Installation Guide
The AP-MNT-MP10-X is a low-profile mount kit for attaching AP-5xx series to existing W2/W3 wall mounts. This
mount kit is designed to work with the pre-assembled bracket on the back of the access points.
A #1 Phillips Head screwdriver is required for installation.
Installation
This installation guide shows the AP-220-MNT-W3 mount instructions.
AP-MNT-MP10-X Mount Kit works with W2 and W3 mounts.

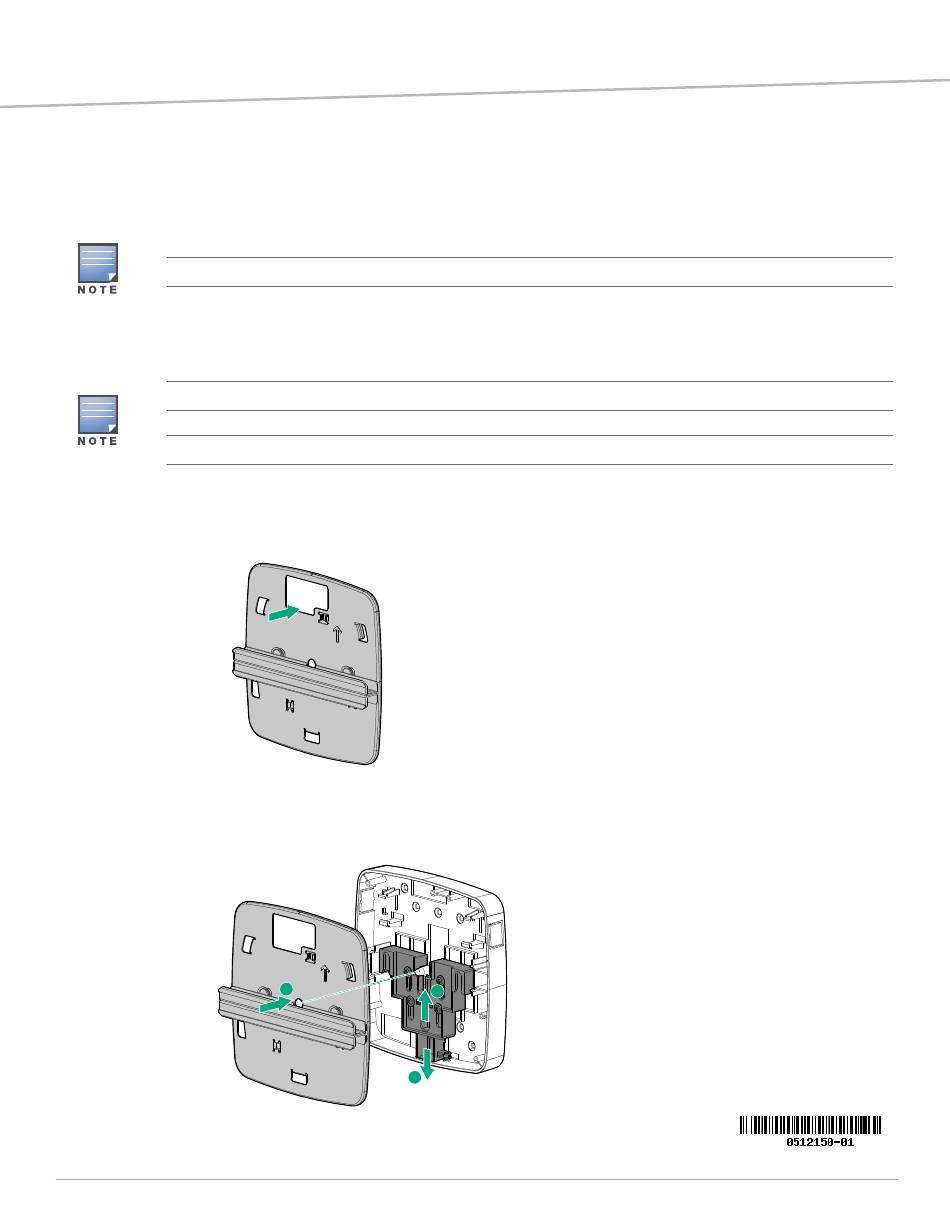

1. Route the Ethernet cable(s) through the opening on the new mount (see Figure 1).
Figure 1
2. Press on the spring loaded slider of the W2/W3 mount, making sure the center post of the existing mount fits
through the center hole of the new mount (see Figure 2).
Figure 2
0512150-01 | October 2019
Route Ethernet Cables
2
3
1
4
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aruba AP-MNT-MP10-X
Summary of Contents for Aruba AP-MNT-MP10-X
- Page 1 AP-MNT-MP10-X Mount Kit Installation Guide The AP-MNT-MP10-X is a low-profile mount kit for attaching AP-5xx series to existing W2/W3 wall mounts. This mount kit is designed to work with the pre-assembled bracket on the back of the access points. A #1 Phillips Head screwdriver is required for installation.
- Page 2 8. Slide the AP bracket fully into place and release the lock ring. Figure 5 Slide AP into Place 9. Use a #1 Phillips head screwdriver to tighten the screw securing the AP to the metal mount bracket. AP-MNT-MP10-X Mount Kit | Installation Guide...
