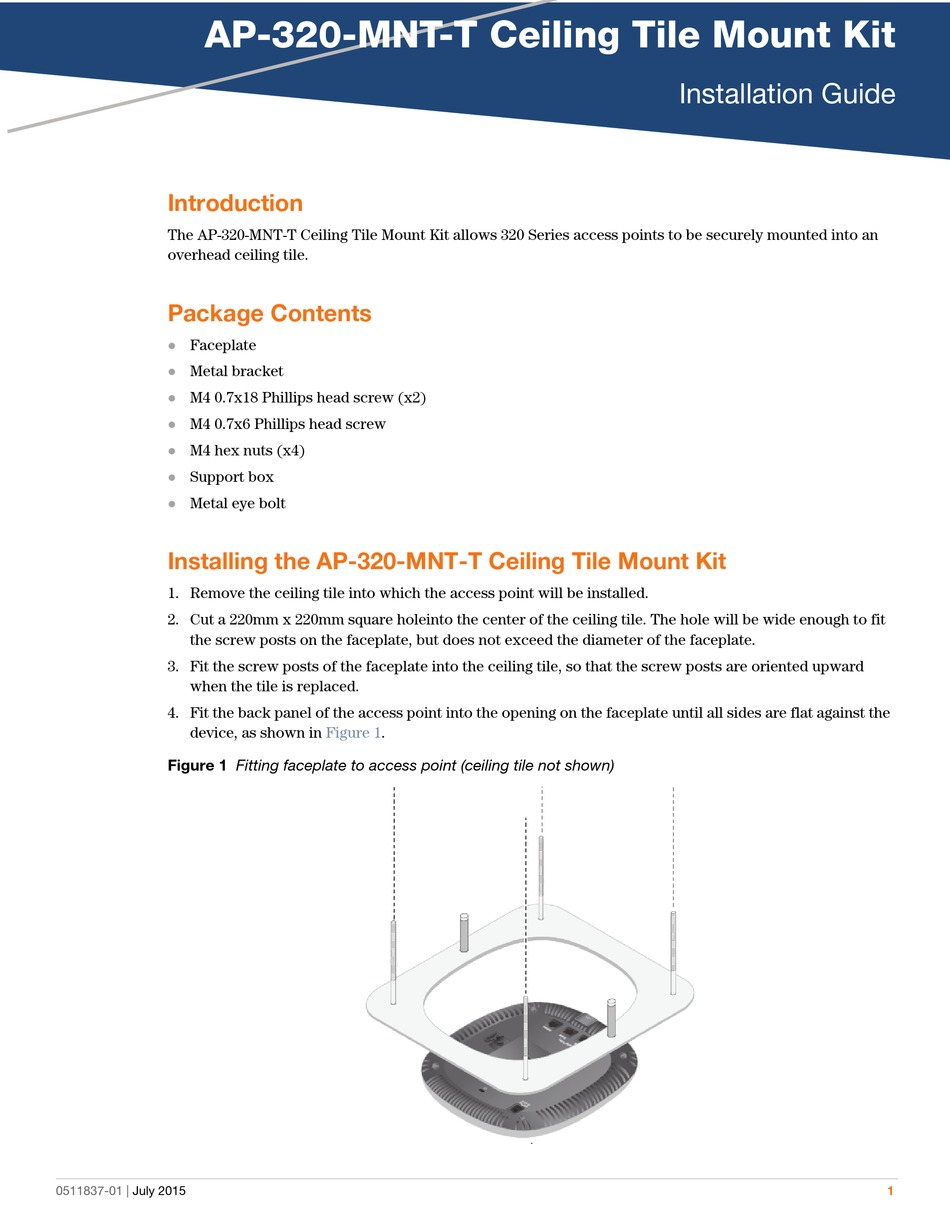

AP-320-MNT-T Ceiling Tile Mount Kit

Introduction

The AP-320-MNT-T Ceiling Tile Mount Kit allows 320 Series access points to be securely mounted into an
overhead ceiling tile.

Package Contents

Faceplate

 Metal bracket
M4 0.7x18 Phillips head screw (x2)

M4 0.7x6 Phillips head screw

M4 hex nuts (x4)

Support box

Metal eye bolt


Installing the AP-320-MNT-T Ceiling Tile Mount Kit

1. Remove the ceiling tile into which the access point will be installed.
2. Cut a 220mm x 220mm square holeinto the center of the ceiling tile. The hole will be wide enough to fit
the screw posts on the faceplate, but does not exceed the diameter of the faceplate.
3. Fit the screw posts of the faceplate into the ceiling tile, so that the screw posts are oriented upward
when the tile is replaced.
4. Fit the back panel of the access point into the opening on the faceplate until all sides are flat against the
device, as shown in
Figure 1 Fitting faceplate to access point (ceiling tile not shown)
0511837-01 | July 2015
Figure 1.
