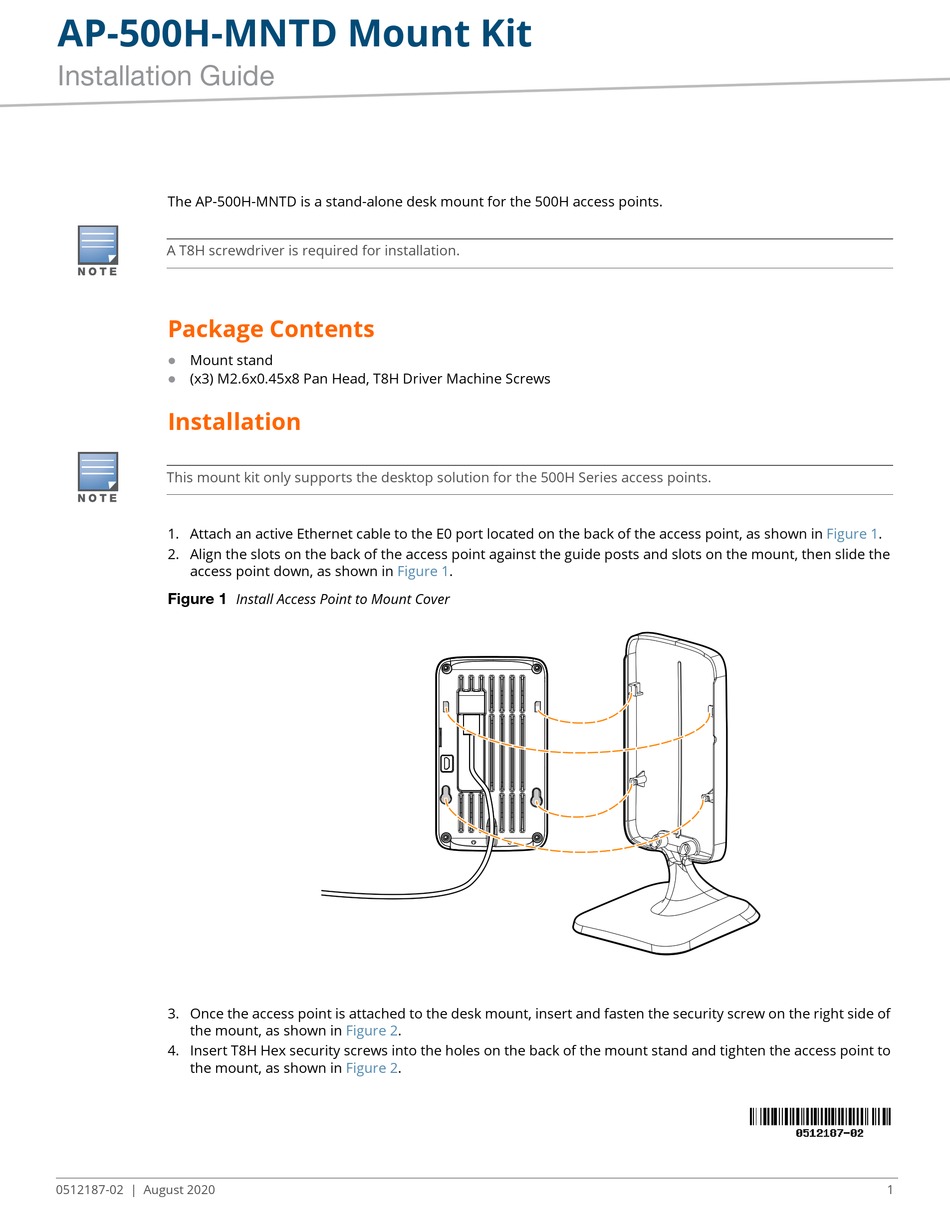

Aruba AP-500H-MNTD Installation Manual

AP-500H-MNTD Mount Kit
Installation Guide
The AP-500H-MNTD is a stand-alone desk mount for the 500H access points.
A T8H screwdriver is required for installation.

Package Contents

Mount stand

(x3) M2.6x0.45x8 Pan Head, T8H Driver Machine Screws


Installation

This mount kit only supports the desktop solution for the 500H Series access points.
1. Attach an active Ethernet cable to the E0 port located on the back of the access point, as shown in
2. Align the slots on the back of the access point against the guide posts and slots on the mount, then slide the
access point down, as shown in
Figure 1
3. Once the access point is attached to the desk mount, insert and fasten the security screw on the right side of
the mount, as shown in
4. Insert T8H Hex security screws into the holes on the back of the mount stand and tighten the access point to
the mount, as shown in
0512187-02 | August 2020
Figure
Install Access Point to Mount Cover
Figure 2.
Figure 2.
1.
Figure 1.
1
