Aruba AP-205H-MNT1 Installation Manual

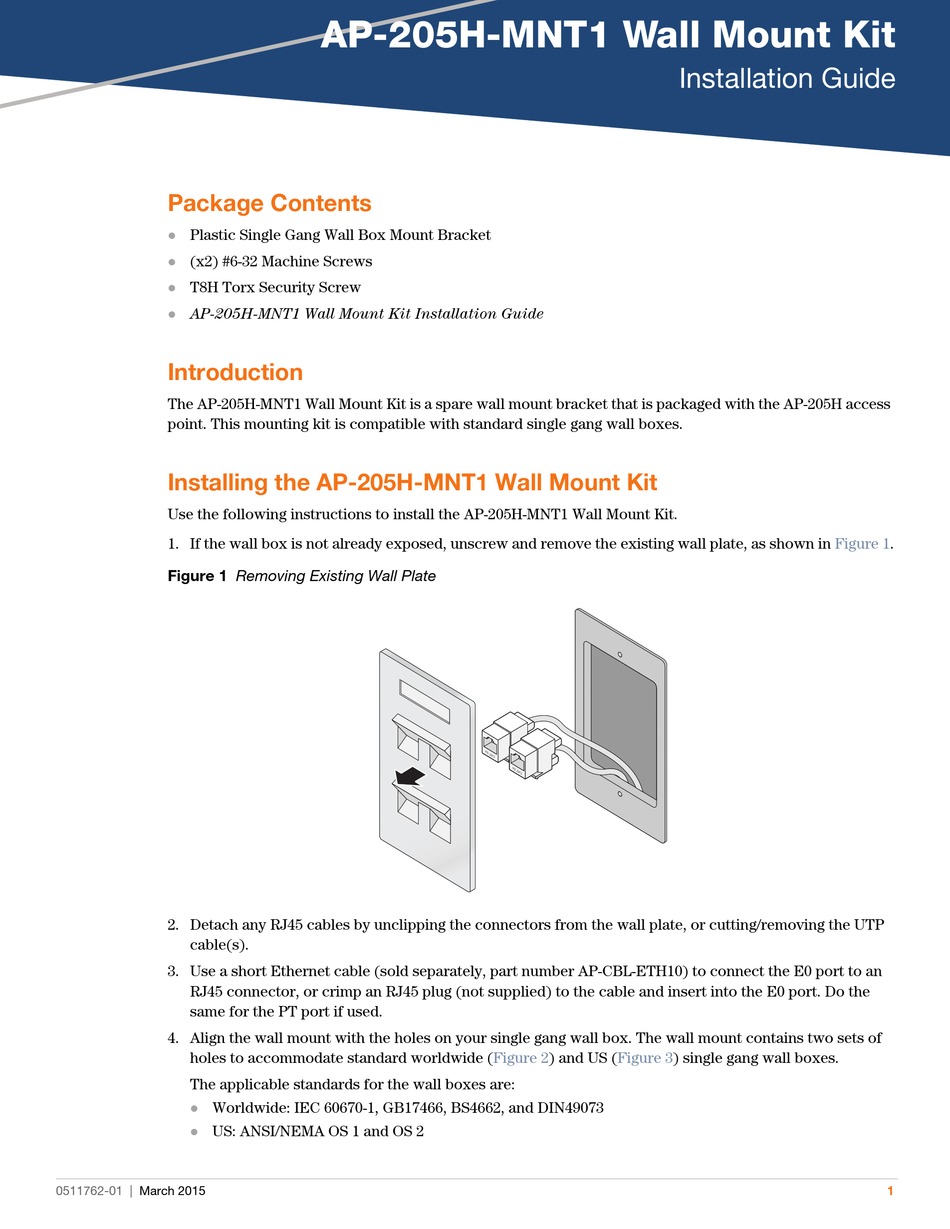

Package Contents

Plastic Single Gang Wall Box Mount Bracket

(x2) #6-32 Machine Screws

T8H Torx Security Screw

AP-205H-MNT1 Wall Mount Kit Installation Guide


Introduction

The AP-205H-MNT1 Wall Mount Kit is a spare wall mount bracket that is packaged with the AP-205H access
point. This mounting kit is compatible with standard single gang wall boxes.

Installing the AP-205H-MNT1 Wall Mount Kit

Use the following instructions to install the AP-205H-MNT1 Wall Mount Kit.
1. If the wall box is not already exposed, unscrew and remove the existing wall plate, as shown in

Figure 1 Removing Existing Wall Plate

2. Detach any RJ45 cables by unclipping the connectors from the wall plate, or cutting/removing the UTP
cable(s).
3. Use a short Ethernet cable (sold separately, part number AP-CBL-ETH10) to connect the E0 port to an
RJ45 connector, or crimp an RJ45 plug (not supplied) to the cable and insert into the E0 port. Do the
same for the PT port if used.
4. Align the wall mount with the holes on your single gang wall box. The wall mount contains two sets of
holes to accommodate standard worldwide
The applicable standards for the wall boxes are:
Worldwide: IEC 60670-1, GB17466, BS4662, and DIN49073

 US: ANSI/NEMA OS 1 and OS 2
0511762-01 | March 2015
AP-205H-MNT1 Wall Mount Kit
(Figure
Installation Guide
2) and US (Figure 3) single gang wall boxes.
Figure 1.
