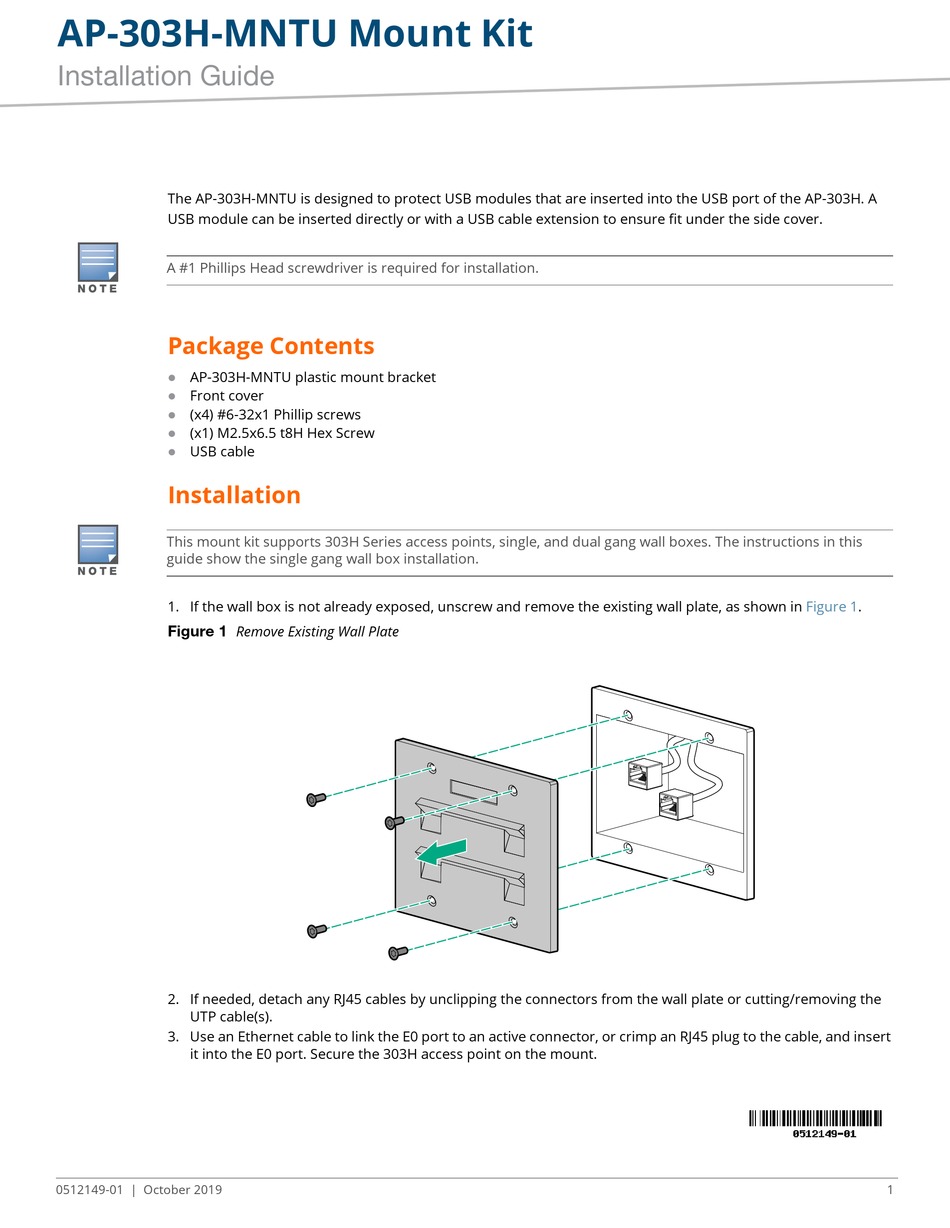

AP-303H-MNTU Mount Kit
Installation Guide
The AP-303H-MNTU is designed to protect USB modules that are inserted into the USB port of the AP-303H. A
USB module can be inserted directly or with a USB cable extension to ensure fit under the side cover.
A #1 Phillips Head screwdriver is required for installation.
Package Contents
AP-303H-MNTU plastic mount bracket
Front cover
(x4) #6-32x1 Phillip screws
(x1) M2.5x6.5 t8H Hex Screw
USB cable
Installation
This mount kit supports 303H Series access points, single, and dual gang wall boxes. The instructions in this
guide show the single gang wall box installation.
1. If the wall box is not already exposed, unscrew and remove the existing wall plate, as shown in
Figure 1
2. If needed, detach any RJ45 cables by unclipping the connectors from the wall plate or cutting/removing the
UTP cable(s).
3. Use an Ethernet cable to link the E0 port to an active connector, or crimp an RJ45 plug to the cable, and insert
it into the E0 port. Secure the 303H access point on the mount.
0512149-01 | October 2019
Remove Existing Wall Plate
Figure
1.
1
Advertisement
Table of Contents
Related Manuals for Aruba AP-303H-MNTU
Summary of Contents for Aruba AP-303H-MNTU
- Page 1 Installation Guide The AP-303H-MNTU is designed to protect USB modules that are inserted into the USB port of the AP-303H. A USB module can be inserted directly or with a USB cable extension to ensure fit under the side cover.
- Page 2 6. Connect any required cables to the rear of the access point. 7. Align the mounting slots on the back of your AP-303H access point with the corresponding posts on the wall mount as shown in Figure Figure 3 Secure AP-303H to Wall Mount AP-303H-MNTU Mount Kit | Installation Guide...
- Page 3 4. If a USB module cannot be plugged in directly, plug in the USB extension cable, reroute the extension cable upward, and plug the open end into the USB module (see Figure Figure 4 Plug In USB Module Figure 5 Plug in USB Extension Cable. | Installation Guide AP-303H-MNTU Mount Kit...
- Page 4 10. If the access point requires a DC power adapter, insert a power cable into the socket located on the side of the access point. 11. Place cover on the assemble and screw in the security screw (see Figure 7 Figure Figure 7 Attach Cover AP-303H-MNTU Mount Kit | Installation Guide...
- Page 5 Figure 8 Screw In Security Screw | Installation Guide AP-303H-MNTU Mount Kit...
