AP-130-MNT-W1
Installation Guide
The AP-130-MNT-W1 Wall Mount kit allows you to mount your 130 Series access point to a wall.
1. Begin by attaching the wall mount adapter to the wall as shown in
a. Install any necessary wall anchors. Wall anchors are not included in this kit.
b. Align the screw holes in the mounting bracket with the previously installed anchors or demarcated
screw points.
c. Insert the screws to secure the mounting bracket. Screws are not included in this kit.

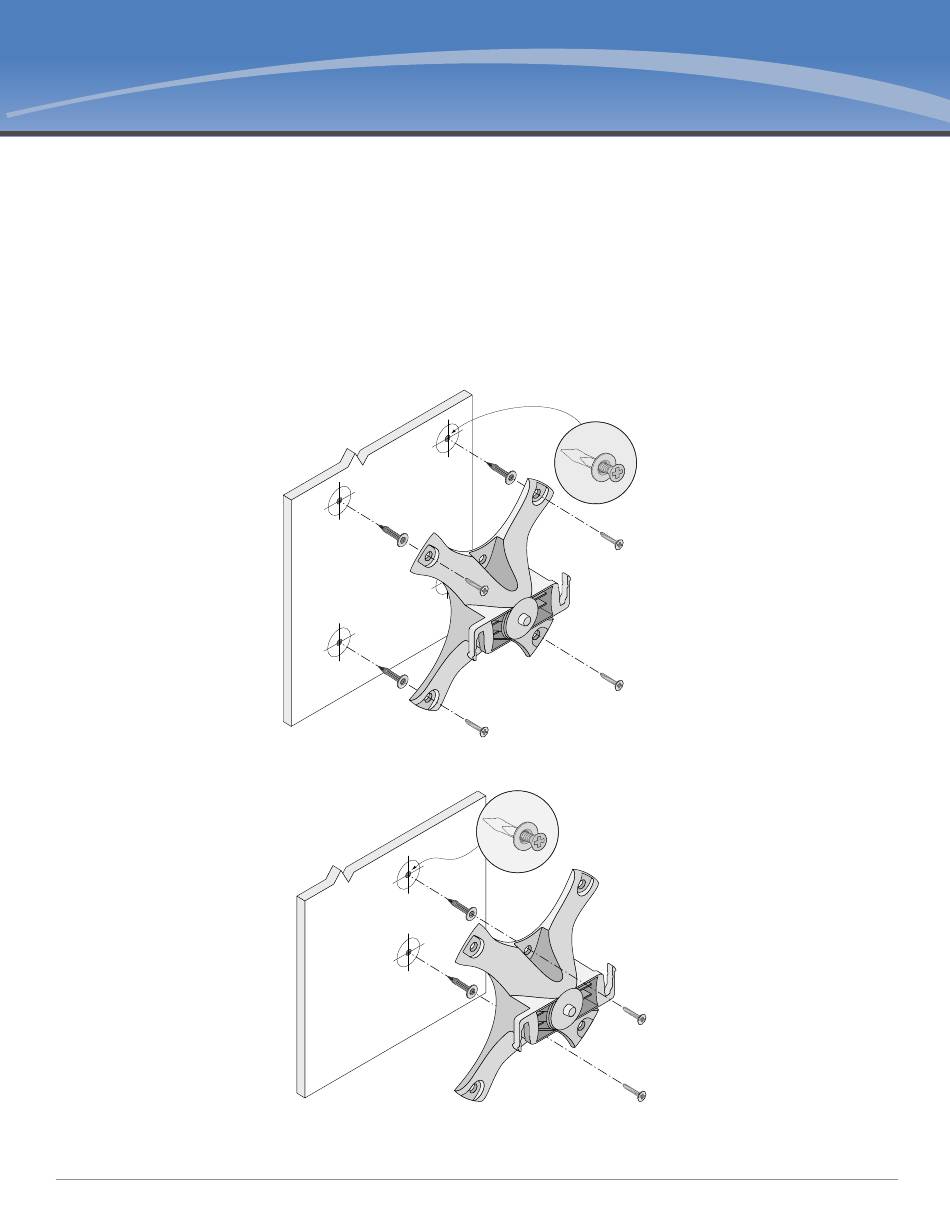

Figure 1 Attaching the Adapter to a Wall
Figure 2 Attaching the Adapter to a Wall (Alternate)
0510430-03 | September 2013
Figure 1
or
Figure
2.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aruba AP-130-MNT-W1
Summary of Contents for Aruba AP-130-MNT-W1
- Page 1 AP-130-MNT-W1 Installation Guide The AP-130-MNT-W1 Wall Mount kit allows you to mount your 130 Series access point to a wall. 1. Begin by attaching the wall mount adapter to the wall as shown in Figure 1 Figure a. Install any necessary wall anchors. Wall anchors are not included in this kit.
- Page 2 Align the AP with a mounting adapter, placing the AP so that it’s mounting tabs are at an angle of approximately 30 degrees to the adapter. 4. Pushing toward the wall, rotate the AP clockwise until it clicks into place (see Figure Figure 3 Attaching the AP to the Mounting Bracket Figure 4 Completed Installation AP-130-MNT-W1 | Installation Guide...
