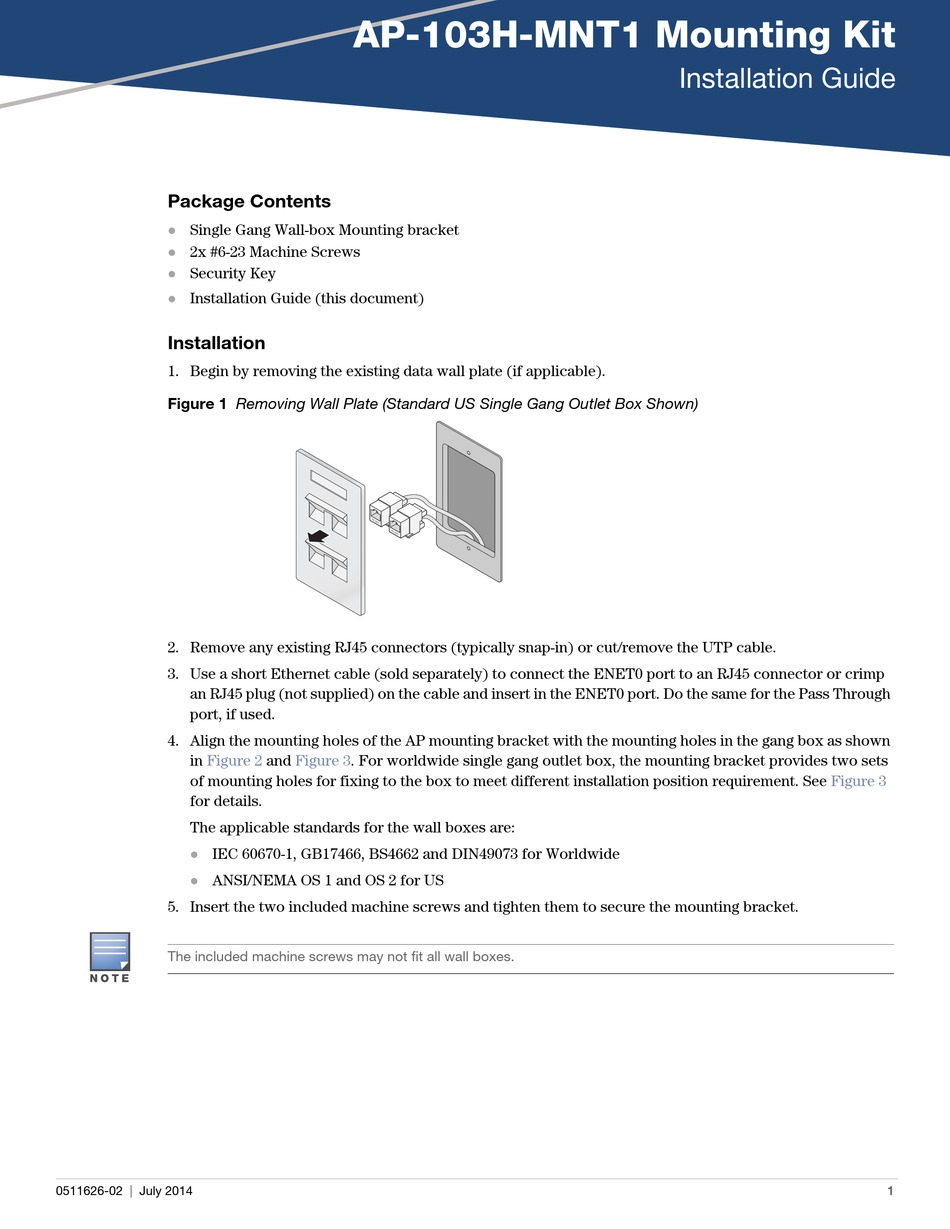

Package Contents
Single Gang Wall-box Mounting bracket
2x #6-23 Machine Screws
Security Key
Installation Guide (this document)
Installation
1. Begin by removing the existing data wall plate (if applicable).
Figure 1 Removing Wall Plate (Standard US Single Gang Outlet Box Shown)
2. Remove any existing RJ45 connectors (typically snap-in) or cut/remove the UTP cable.
3. Use a short Ethernet cable (sold separately) to connect the ENET0 port to an RJ45 connector or crimp
an RJ45 plug (not supplied) on the cable and insert in the ENET0 port. Do the same for the Pass Through
port, if used.
4. Align the mounting holes of the AP mounting bracket with the mounting holes in the gang box as shown
in
Figure 2
of mounting holes for fixing to the box to meet different installation position requirement. See
for details.
The applicable standards for the wall boxes are:
IEC 60670-1, GB17466, BS4662 and DIN49073 for Worldwide
ANSI/NEMA OS 1 and OS 2 for US
5. Insert the two included machine screws and tighten them to secure the mounting bracket.
The included machine screws may not fit all wall boxes.
0511626-02
|
July 2014
AP-103H-MNT1 Mounting Kit
and
Figure
3. For worldwide single gang outlet box, the mounting bracket provides two sets
Installation Guide
Figure 3
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aruba AP-103H-MNT1
Summary of Contents for Aruba AP-103H-MNT1
- Page 1 AP-103H-MNT1 Mounting Kit Installation Guide Package Contents Single Gang Wall-box Mounting bracket 2x #6-23 Machine Screws Security Key Installation Guide (this document) Installation 1. Begin by removing the existing data wall plate (if applicable). Figure 1 Removing Wall Plate (Standard US Single Gang Outlet Box Shown) 2.
- Page 2 8. Push the AP against the holes and downward until the posts engage the slots at the top of the mounting holes. See Figure 4 Figure 5 for more details. Figure 4 Fitting AP to Bracket AP-103H-MNT1 Mounting Kit | Installation Guide...
- Page 3 2. Use the security key to depress the tab on the AP and push the AP up, releasing the AP from the mounting holes on the bracket. Figure 6 Removing AP 3. If not using PoE, connect the AC-DC power adapter (sold separately) to the DC power socket located on the bottom of the AP. AP-103H-MNT1 Mounting Kit | Installation Guide...
- Page 4 This page is intentionally left blank. AP-103H-MNT1 Mounting Kit | Installation Guide...
