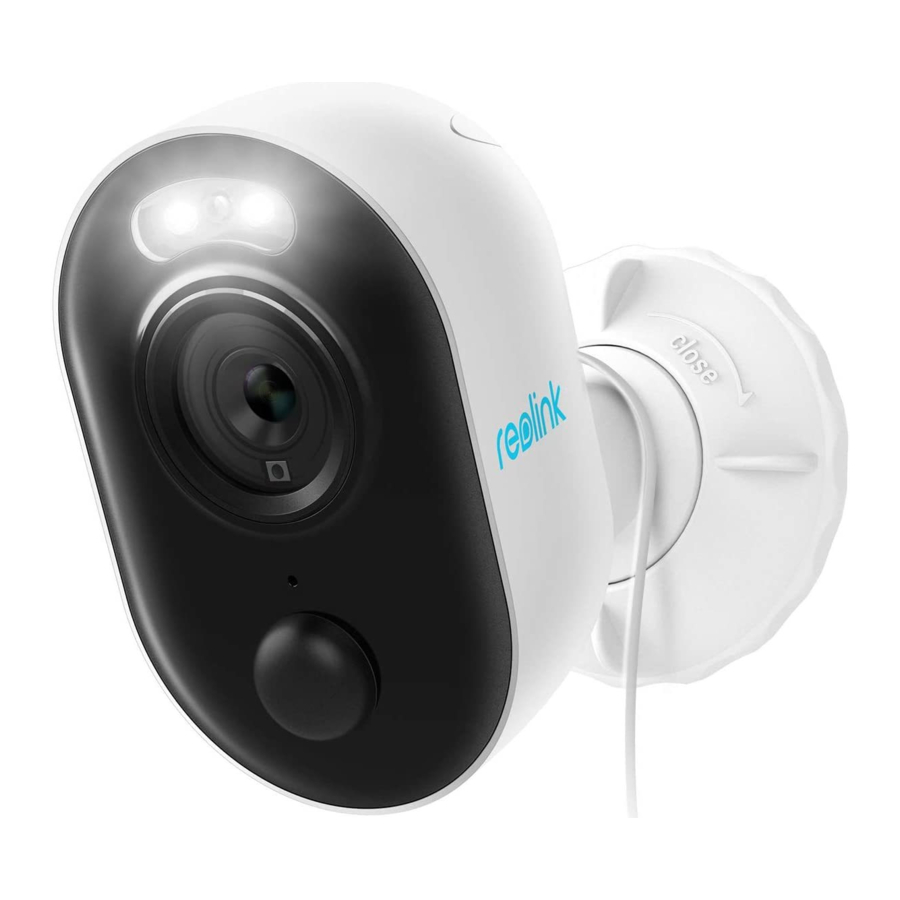

Reolink Lumus - Outdoor WiFi Security Camera Manual

What's in the Box

Camera Introduction

Status LED
Blinking: WiFi Connection failed
On: Camera is starting up/WiFi Connection succeeded
Reset Button
*Press for more than five seconds to restore the device to default settings.
*Always keep the rubber plug closed firmly.

Set up the Camera

Download and launch the Reolink App or Client software, and follow the onscreen instructions to finish initial setup.

• On Smartphone
  Scan to download the Reolink App.

• On PC
  Download path of the Reolink Client: Go to https://reolink.com > Support > App & Client.

Installation Guide

• Install the camera 2-3 meters (7-10 ft) above the ground. This height maximizes the detection range of the PIR motion sensor.
• For better motion detection performance, please install the camera angularly.

NOTE: If a moving object approaches the PIR sensor vertically, the camera may fail to detect motion.

Mount the Camera

Rotate to separate parts from the bracket.

Drill holes in accordance with the mounting hole template and screw the base of the bracket onto the wall. Next, attach the other part of the bracket onto the base.

Fasten the camera to the bracket by turning the screw identified in the following chart anticlockwise.

Adjust the camera angle to get the best field of view.

Secure the camera by turning the part on the bracket identified in the chart clockwise.

NOTE: To adjust the camera angle, please loosen the bracket by turning the upper part anticlockwise.

Important Notes on Reducing False Alarms

• Do not face the camera towards any objects with bright lights, including sunshine, bright lamp lights, etc.
• Do not place camera near any outlets, including the air conditioner vents, humidifier outlets, the heat transfer vents of projectors, etc.
• Do not install the camera at places with strong winds.
• Do not face the camera towards a mirror.
• Keep the camera at least 1 meter away from any wireless devices, including WiFi routers and phones to avoid wireless interference.

Troubleshooting

IP Cameras is not Powering on

If your camera is not powering on, please try the following solutions:

• Plug the camera into another power outlet.
• Use another 5V power adapter to power up the camera.

If these won't work, please contact Reolink Support https://support.reolink.com

Failed to Scan QR Code on the Phone

If the camera failed to scan the QR code on your phone, please try the following solutions:

• Remove the protective film from the camera lens.
• Wipe the camera lens with a dry paper/towel/tissue.
• Vary the distance (about 30cm) between your camera and the mobile phone which enables the camera to focus better.
• Try to scan the QR code under sufficient lighting.

If these won't work, please contact Reolink Support https://support.reolink.com

WiFi Connection Failed During Initial Setup

If the camera fails to connect to WiFi, please try the following solutions:

• Please make sure the WiFi band is 2.4GHz, the camera does not support 5GHz.
• Please ensure you have entered the correct WiFi password.
• Put your camera close to your router to ensure a strong WiFi signal.
• Change the encryption method of the WiFi network to WPA2-PSK/WPA-PSK (safer encryption) on your router interface.
• Change your WiFi SSID or password and make sure that SSID is within 31 characters and password is within 64 characters.
• Set your password with only characters on the keyboard.

If these won't work, please contact Reolink Support https://support.reolink.com

Specifications

Video & Audio

Video Resolution: 1080p HD at 15 frames/sec
Field of View: Horizontal: 100°, Vertical: 54°
Night Vision: Up to 10m (33 ft)
Audio: Two-way audio

Smart Alarm

Mode: Motion Detection + PIR Detection
PIR Detection Angle: 100° horizontal
Audio Alert: Customized voice-recordable alerts
Other Alerts: Instant email alerts and push notifications

General

Power: 5V/2A WiFi
Frequency: 2.4 GHz
Operating Temperature: -10°C to 55°C (14°F to 131°F)
Weather resistance: IP65 certified weatherproof
Size: 99 x 91 x 60 mm
Weight: 185g (6.5 oz)
