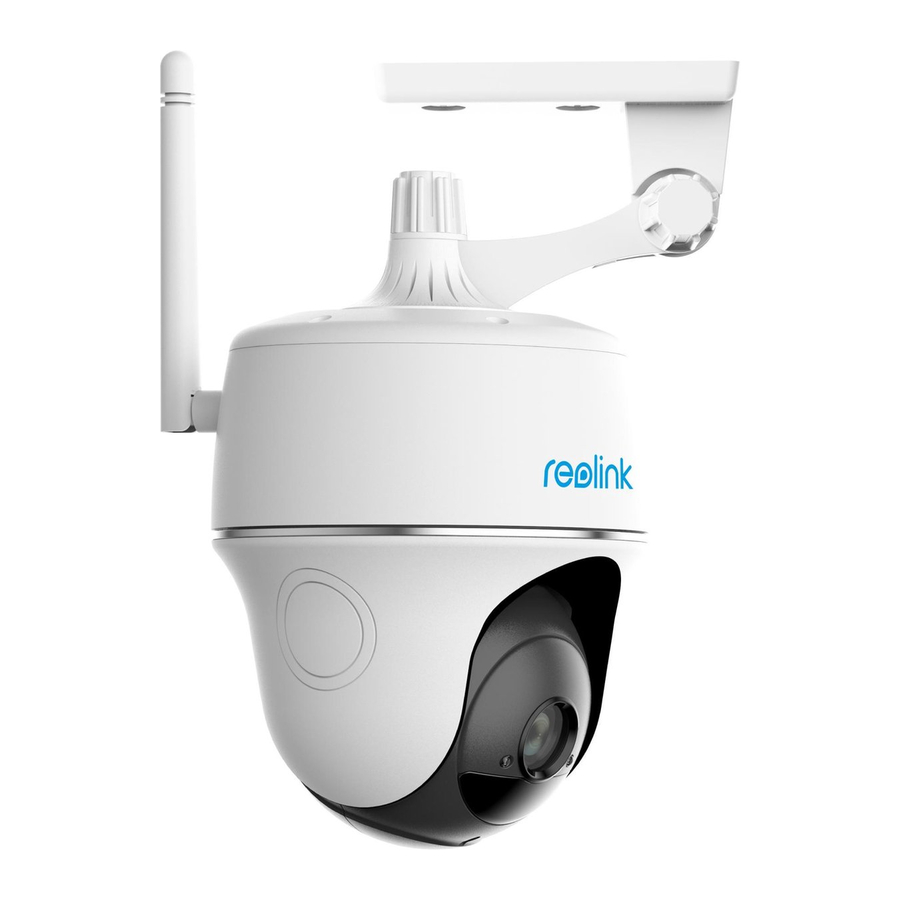

Reolink Argus PT/PRO - 4MP Smart Pan-Tilt Security Camera Manual

What's in the Box

Camera Introduction

1. Status LED
2. Lens
3. Built-in PIR Sensor
4. Daylight Sensor
5. Built-in Mic
6. Speaker
7. Reset Hole
   *Press the reset button with a pin to restore camera to factory settings.
8. Micro SD Card Slot
   *Rotate the camera's lens to find the reset hole and the SD card slot.
9. Micro USB Port
10. Battery Status LED
11. Antenna
12. Power Switch
    Different states of the status LED:
    Red Light: WiFi connection failed Blinking: Standby status
    Blue Light: WiFi connection succeeded On: Working status

Set up the Camera

Set up the Camera on the Smartphone

Step 1 Scan to download the Reolink App from the App Store or Google Play store.

Step 2 Turn on the power switch to power on the camera.

Step 3 Launch the Reolink App, click the "" button in the top right corner to add the camera. Scan the QR code on the device and follow the onscreen instructions to finish initial setup.

Set up the Camera on PC (Optional)

Step 1 Download and install the Reolink Client: Go to https://reolink.com > Support > App&Client.
Step 2 Launch the Reolink Client, click the "" button, input the UID code of the camera to add it and follow the onscreen instructions to finish initial setup.

Charge the Camera

It's recommended to fully charge the battery before mounting the camera outdoors.

Charge the battery with a power adapter. (not included)

Charge the battery with the Reolink Solar Panel (not included if you only purchase the camera).
Charging Indicator:
Orange LED: Charging
Green LED: Fully charged
For better weatherproof performance, please always cover the USB charging port with the rubber plug after charging the battery.

Install the Camera

• For outdoor use, the camera MUST be installed upside down for better waterproof performance and better PIR motion sensor's efficiency.
• Install the camera 2-3 meters (7-10 ft) above the ground. This height maximizes the detection range of the PIR motion sensor.
• For better motion detection performance, please install the camera angularly.
  NOTE: If a moving object approaches the PIR sensor vertically, the camera may fail to detect motion.


Mount the Camera to the Wall

Drill holes in accordance with the mounting hole template and screw the security mount to the wall.
NOTE: Use the drywall anchors included in the package if needed.

Install the antenna to the camera.

Screw the camera to the security mount and adjust to the proper direction.

NOTE: For better WiFi connection, it is recommended to install the antenna upward or horizontally.

Mount the Camera to Ceiling

Pull the button of the security mount and unscrew the bracket to separate the two parts.

Install the bracket to the ceiling. Align the camera with the bracket and turn the camera unit clockwise to lock it in position.

Install the Camera with Loop Strap

You are allowed to strap the camera to a tree with both the security mount and ceiling bracket. Thread the provided strap to the plate and fasten it to a tree. Next, attach the camera to the plate and you are good to go.

Safety Instructions of Battery Usage

The camera is not designed for running 24/7 at full capacity or around-the-clock live streaming. It's designed to record motion events and to live view remotely only when you need it. Learn useful tips on how to extend the battery life in this post: https://support.reolink.com/hc/en-us/articles/360006991893

1. The battery is built-in, so do not remove it from the camera.
2. Charge the rechargeable battery with a standard and high-quality DC 5V/9V battery charger or Reolink solar panel. Do not charge the battery with solar panels from any other brands.
3. Charge the battery when temperatures are between 0°C and 45°C and always use the battery when temperatures are between -20°C and 60°C.
4. Keep the USB charging port dry, clean and free of any debris and cover the USB charging port with the rubber plug when the battery is fully charged.
5. Do not charge, use or store the battery near any ignition sources, such as fire or heaters.
6. Do not use the battery if it gives off an odor, generates heat, becomes discolored or deformed, or appears abnormal in any ways. If the battery is being used or charged, turn off the power switch or remove the charger immediately, and stop using it.
7. Always follow the local waste and recycle laws when you get rid of the used battery.

Troubleshooting

Camera is not Powering on

If your camera is not powering on, please try the following solutions:

• Make sure the power switch is turned on.
• Charge the battery with a DC 5V/2A power adapter. When the green light is on, the battery is fully charged.

If these won't work, contact Reolink Support.

Failed to Scan QR Code on the Phone

If the camera cannot scan the QR code on your phone, please try the following solutions:

• Remove the protective film from the camera lens.
• Wipe the camera lens with a dry paper/ towel/tissue.
• Vary the distance between your camera and the mobile phone so that the camera can focus better.
• Try to scan the QR code under sufficient lighting.

If these won't work, contact Reolink Support.

Failed to Connect to WiFi During Initial Setup Process

If the camera fails to connect to WiFi, please try the following solutions:

• Ensure that you have entered the correct WiFi password.
• Put the camera closer to your router to ensure a strong WiFi signal.
• Change the encryption method of the WiFi network to WPA2-PSK/WPA-PSK (safer encryption) on your router interface.
• Change your WiFi SSID or password and make sure that SSID is within 31 characters and password is within 64 characters.

If these won't work, contact Reolink Support.

Specification

Video

Field of View: 105° diagonal
Night Vision: Up to 10m (33 ft)

PIR Detection & Alerts

PIR Detection Distance:
Adjustable up to 10m (33ft)
PIR Detection Angle: 90° horizontal
Audio Alert:
Customized voice-recordable alerts
Other Alerts:
Instant email alerts and push notifications

General

Operating Temperature:
-10°C to 55°C (14°F to 131°F)
Size: 98 x 112 mm
Weight (Battery included): 470g (16.5 oz)
For more specifications, visit the Reolink official website.

Notification of Compliance

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in aresidential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
