Cooper Lighting MCGRAW-EDISON WBG Specification Sheet

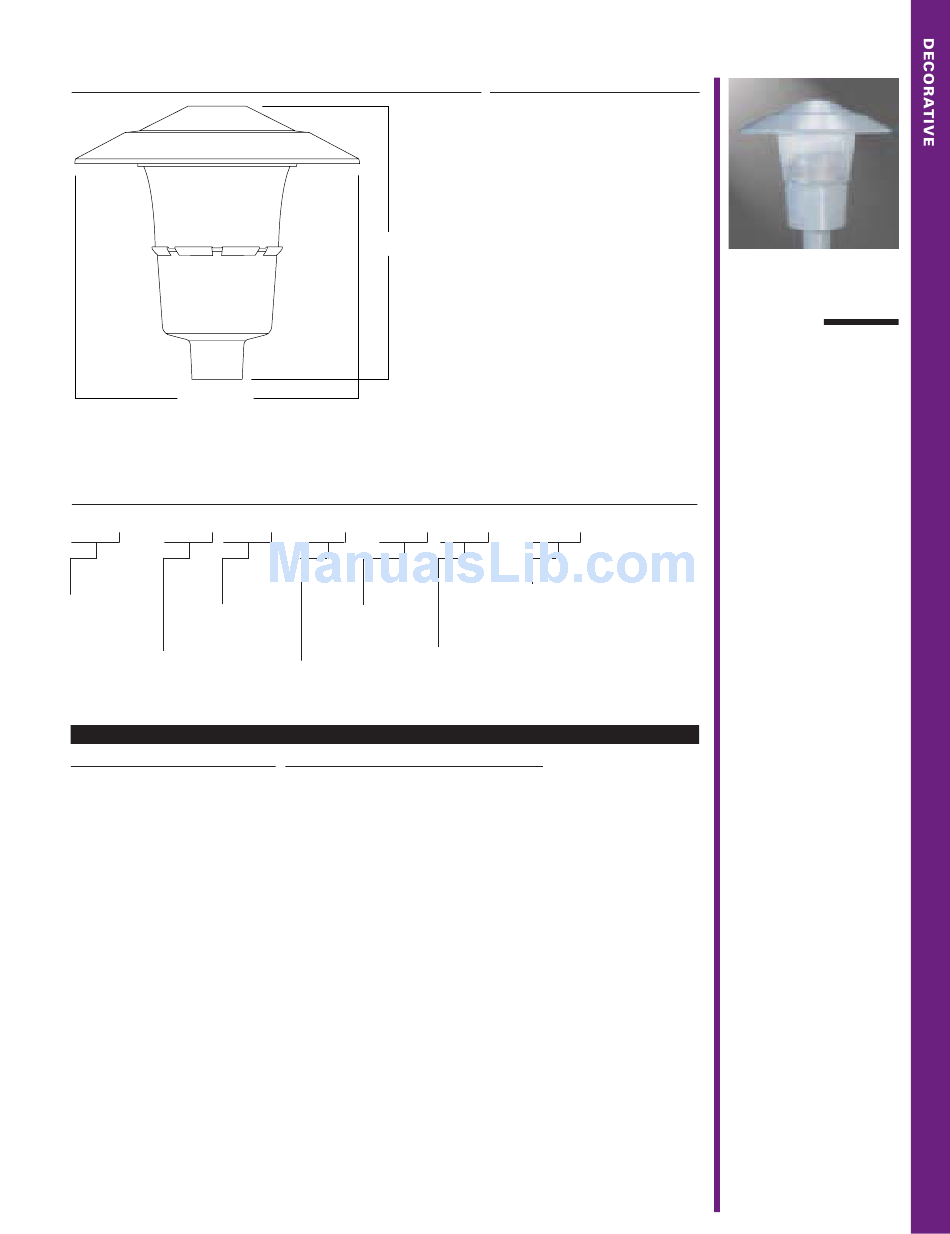

D I M E N S I O N S
22 1/4" [565mm]
O R D E R I N G I N F O R M AT I O N
S A M P L E N U M B E R : W B G - 1 5 0 - M H - 1 2 0 - 5 - B K
Product Lamp Lamp Type
Family Wattage 1 MH=Metal
WBG=Woodbridge 50=50W Halide
70=70W HPS=High
100=100W
150=150W
175=175W
250=250W 2
E.P.A. 1.7
Options 6
F=Single Fuse (120, 277 or 347V)
FF=Double Fuse (208, 240 or 480V)
T=Terminal Block
G=Glass Refractor 7
P=Polycarbonate Refractor
R=NEMA Twistlock Photocontrol Receptacle
L=Lamp Included
NOTES: 1 50 through 150W Metal Halide are medium-base socket. All others are mogul-base. 2 250W Metal Halide only. 3 Products also available in non-US voltages
and 50Hz for international markets. Consult factory for availability and ordering information. 4 Multi-tap ballast is 120/208/240/277V wired 277V. 5 Triple-tap
ballast is 120/347V wired 347V. 6 Add as suffix in the order shown. 7 Type III & V distribution only. 8 Order separately, replace XX with color suffix. 9 Consult
your Cooper Lighting Representative for availability and ordering information. 9 Specifications and dimensions subject to change without notice.
21 1/2"
[546mm]
Voltage 3 Distribution
120=120V 2=Type II
208=208V 3=Type III
240=240V 5=Type V
Pressure 277=277V
Sodium 347=347V
480=480V
MT=Multi-Tap 4
TT=Triple-Tap 5
Accessories 8
OA/RA1016=NEMA Twistlock Photocontrol—Multi-Tap
OA/RA1027=NEMA Twistlock Photocontrol—480V
OA1202=House Side Shield
D E S C R I P T I O N
The WBG Woodbridge displays an
old fashion charm of traditional
area lighting, enhancing every
lighting application with a
distinctive styling day or night.
U.L. listed and CSA certified for
wet locations.
Enhancing natural landscapes as
well as cityscapes, the
Woodbridge brings outstanding
performance and style to
walkways, parking lots and
roadways.
Color Options &
AP=Grey Accessories
BZ=Bronze
(See Below)
BK=Black
WH=White
GN=Hartford Green
DP=Dark Platinum
GM=Graphite Metallic
MCGRAW-EDISON
WOODBRIDGE
5 0 - 2 5 0 W
H i g h P r e s s u r e S o d i u m
A R E A L U M I N A I R E
• Die-cast aluminum
housing with spun and
stamped aluminum top.
Stainless steel toolless
entry latch for relamping
and ballast power
module access. Top is
completely removable
without the use of tools
• Injection molded acrylic
refractors available in
type II, III or V. Optional
glass or polycarbonate
refractor available
• Mogul-base socket for
50W through 150W HPS
and 175W and 250W
Metal Halide; 50W
through 150W MH is
medium-base
socket. All sockets are
4KV pulse rated
• Power module designed
for easy removal of all
electrical components for
servicing by loosening
two screws
• Optional internal NEMA
twistlock photocontrol
available
• Post top mount fits 3"
O.D. tenons. Secured by
3/8" stainless steel hex
socket set screws
• Approximate net weight:
34 lbs. (14 kgs.)
COOPER LIGHTING
®
WBG
M e t a l H a l i d e
P O S T- T O P
1189
