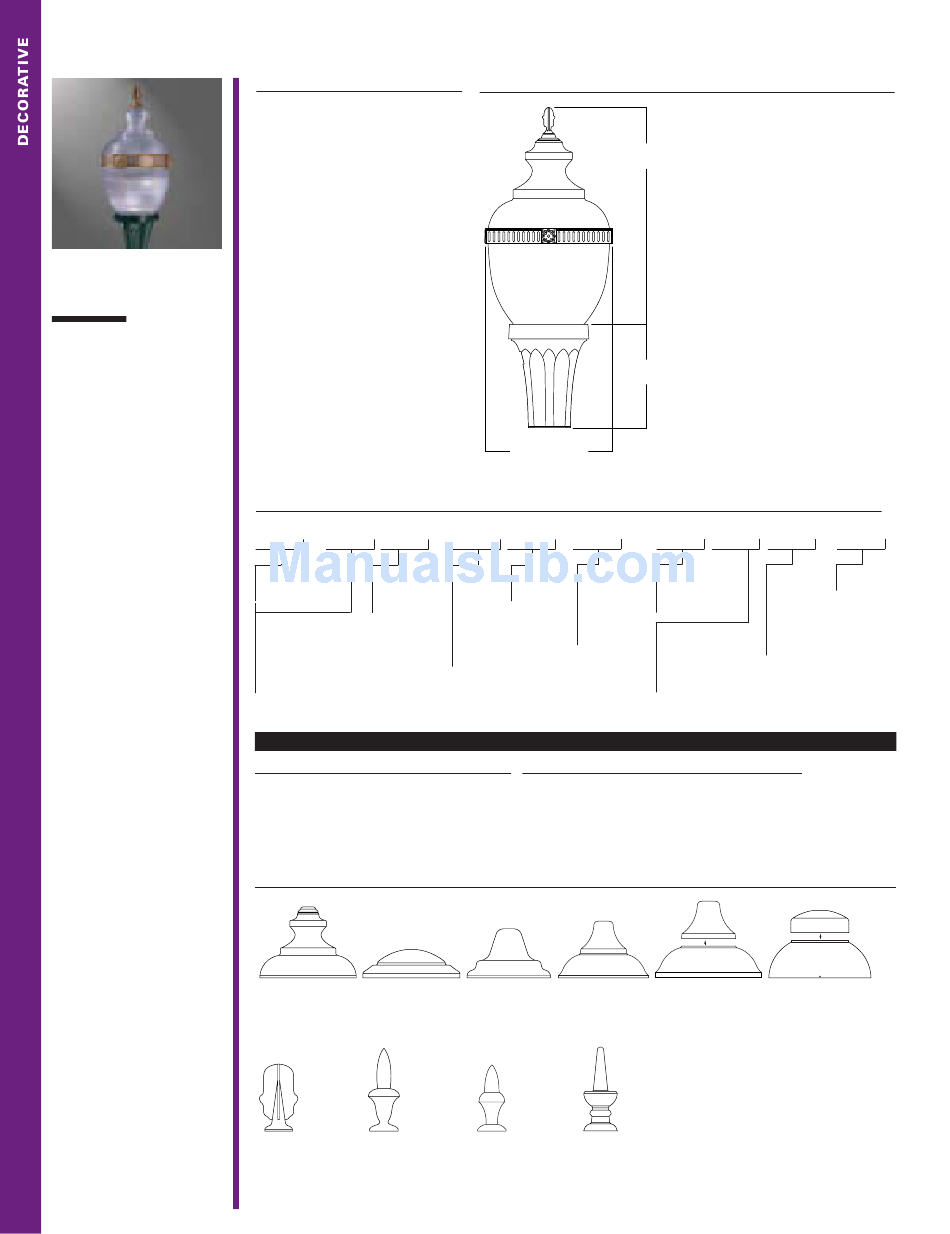

Cooper Lighting McGraw-Edison WTM Specification Sheet

MCGRAW-EDISON
WTM
WESTMINSTER
5 0 - 2 5 0 W
M e t a l H a l i d e
H i g h P r e s s u r e S o d i u m
P O S T- T O P
A R E A L U M I N A I R E
• Globe is available in 9"
high efficiency acrylic or
optional polycarbonate
design. Optional brass
banding and finial
available. Finial standard
black
• Porcelain socket is
positioned to provide
proper location of the
lamp for maximum
optical efficiency
• NEMA PCR photocontrol
receptacle available.
Accessible through door
assembly
• Toolless entry, tilt-back
power module. Standard
plug-in starter (where
applicable)
• Cast aluminum housing.
Standard color is black.
Other finish colors
available
• Post-top mount fits 3" O.D.
tenons. Polycoat square
mounting bolts
• Approximate net weight:
30 lbs. (14 kgs.)
1186
COOPER LIGHTING
®
D E S C R I P T I O N
The WTM Westminster's classic
beauty and superior photometrics
offer roadway illumination and
uniformity that sets a new
standard for decorative post tops
photometry. U.L. listed and CSA
certified for wet locations.
Enhancing natural landscapes as
well as cityscapes, the
Westminster brings outstanding
high performance streetscape
lighting to walkways, parking lots,
and roadways.
O R D E R I N G I N F O R M AT I O N
S A M P L E N U M B E R : W T M - 1 5 0 - M H - 1 2 0 - 3 - A B V- B K
Product Lamp Type
Family MH=Metal
WTM=Westminster Halide
HPS=High
Pressure
Lamp
Sodium
Wattage
50=50W
70=70W
100=100W
150=150W
175=175W
250=250W 1
E.P.A. 1.7
Options 5
F=Single Fuse (120, 277 or 347V)
FF=Double Fuse (208, 240 or 480V)
P=Polycarbonate Refractor 6
R=NEMA Twistlock Photocontrol Receptacle
D=Downlight Reflector 7
L=Lamp Included
Top / Finial Options
Acorn Modern
(Acrylic Glow Top) (Spun Top)
Victorian Modern
NOTES: 1 Available in 120V only. 2 Product also available in non-US voltages and 50Hz for international markets. Consult factory for availability and ordering information.
3 Multi-Tap ballast is 120/208/240/277V wired 277V. 4 Triple-Tap ballast is 120/277/347V wired 347V. 5 Add as suffix in the order shown. 6 Polycarbonate parts used
with Metal Halide lamps will eventually yellow. 7 Available with Victorian and Acorn top only. 8 Order separately, replace XX with color suffix. 9 Specifications
and dimensions subject to change without notice.
D I M E N S I O N S
25 3/4"
[654mm]
11 1/4"
[286mm]
15 9/10" [404mm]
Top Type
Voltage 2 Distribution
A=Acorn
120=120V 3=Type III
C=Classical
208=208V 5=Type V
M=Modern
240=240V
N=Nostalgic
277=277V
R=Architectural
347=347V
V=Victorian
480=480V
MT=Multi-Tap 3
TT=Triple-Tap 4
Accessories 8
AA2000=House Side Shield—Medium-base Lamp
AA2001=House Side Shield—Medium-base Lamp
OA/RA1016=NEMA Twistlock Photocontrol—Multi-Tap
OA/RA1027=NEMA Twistlock Photocontrol—480V
OA1201=NEMA Twistlock Photocontrol—347V
Victorian Classical
(Acrylic Glow Top) (Spun Top)
Architectural Nostalgic
Band Type Color
B=Brass Band AP=Grey
P=Painted Band BZ=Bronze
X=None BK=Black
WH=White
GN=Hartford Green
Finial Type
DP=Dark Platinum
A=Acorn
GM=Graphite Metallic
M=Modern
N=Nostalgic
V=Victorian
X=None
Nostalgic Modern
(Spun Top Access) (Spun Top Access)
Options &
Accessories
(See Below)
