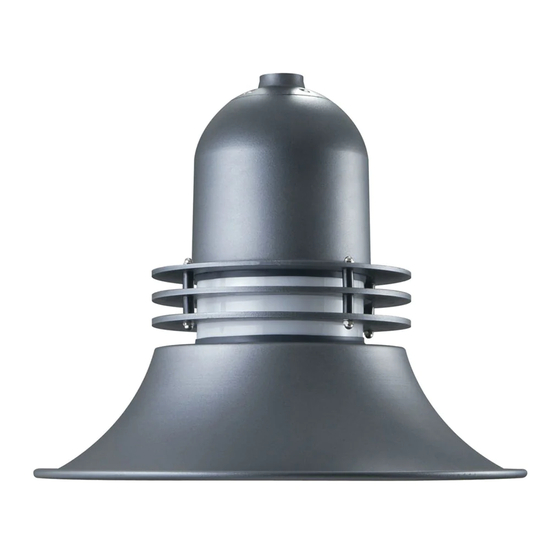

Cooper Lighting Invue Specifications

D E S C R I P T I O N
Pole mount arms are designed to fit both medium EMM/ECM and large
EML/ECL series housings. Arms feature a precision welded cast
aluminum mounting hub for attachment of fixture head to arm with
four (4) stainless steel fasteners. Wall mount arms compliment pole
mount luminaires and attractively transition fixture scale in lower
mounting height pedestrian environments. Wall mount arms are
designed to fit both medium EMM/ECM and large EML/ECL series
housings. Arms feature a precision welded cast aluminum mounting
hub for attachment of fixture head to arm with four (4) stainless steel
fasteners.

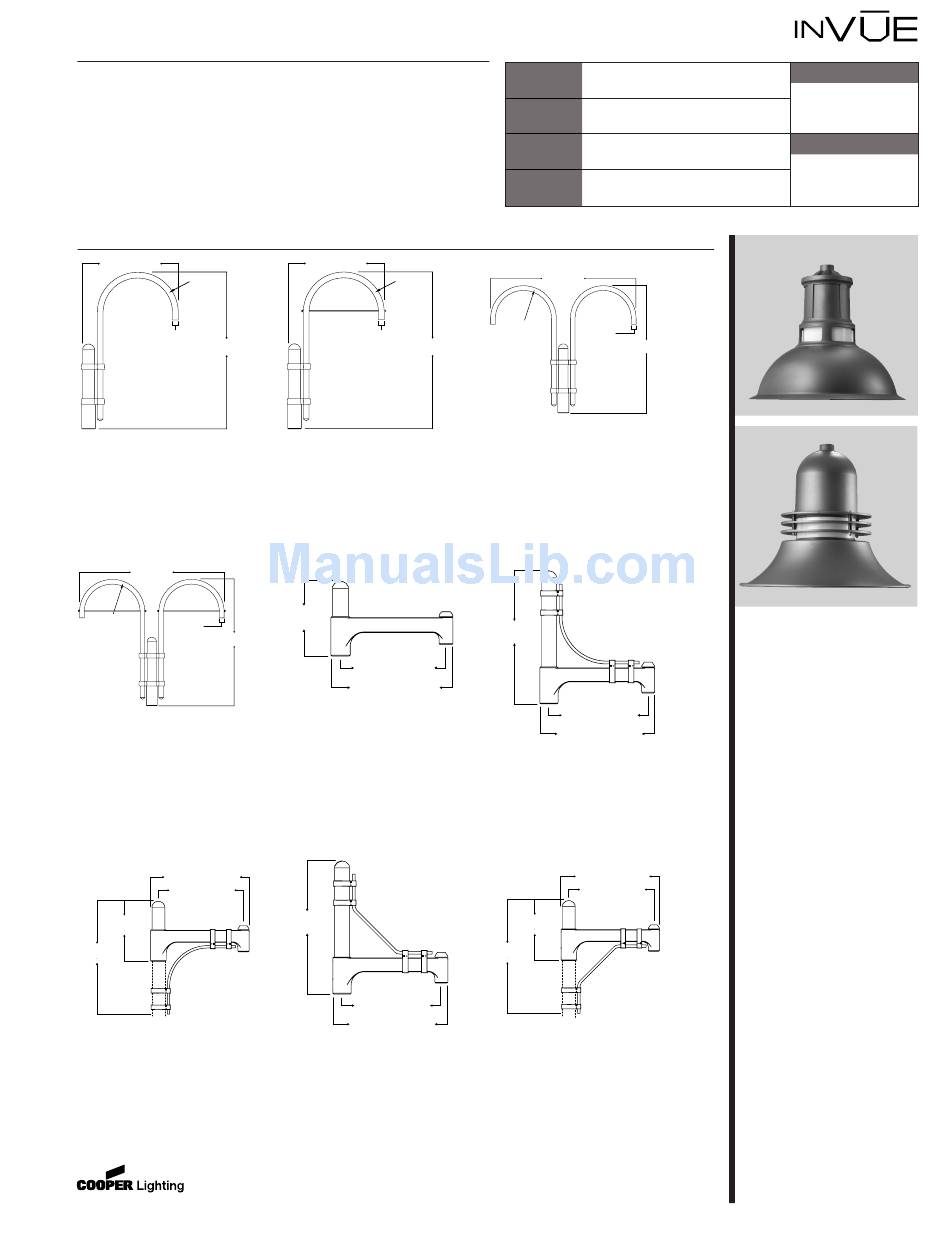

A R M S S P E C I F I C AT I O N S
33 1/2" [852 mm]
Radius
12''
[304 mm]
2''
54 3/16''
[51 mm]
[1376 mm]
BISHOP SINGLE POLE
MOUNT ARM
[VA6105, VA6154, VA6005,
VA6054] Slipfits over 4" round
straight pole, or 4" O.D.
by 6" tall tenon.
Weight: 24 lbs. E.P.A: .92
62" [1575 mm]
Radius
12'' 2''
[304 mm] [51 mm]
54 3/16''
[1376 mm]
BISHOP TWIN POLE MOUNT
ARM WITH CROSS RODS
[VA6108, VA6157, VA6008,
VA6057] Slipfits over 4" round
straight pole, or 4" O.D. by 6"
tall tenon.
Weight: 39 lbs. E.P.A: 1.55
30 15/16" [786 mm]
26 3/4" [679 mm]
18 7/8"
[480 mm]
35 7/16"
[900 mm]
TRADITIONAL SINGLE POLE
MOUNT ARM WITH ROUNDED
LOWER BAR
[VA6111, VA6160, VA6011,
VA6060] Slipfits over 4" round
straight pole only.
Weight: 25 lbs. E.P.A: 1.16
www.cooperlighting.com
33 1/2" [852 mm]
Radius
12''
[304 mm]
2''
54 3/16''
[51 mm]
[1376 mm]
BISHOP SINGLE POLE MOUNT
ARM WITH CROSS ROD
[VA6106, VA6155, VA6006,
VA6055] Slipfits over 4" round
straight pole, or 4" O.D.
by 6" tall tenon.
Weight: 25 lbs. E.P.A: .98
18 7/8"
[480 mm]
26 3/4" [679 mm]
30 15/16" [786 mm]
TRADITIONAL SINGLE POLE
MOUNT ARM
[VA6109, VA6158, VA6009,
VA6058] Slipfits over 4" round
straight pole, or 4" O.D.
by 6" tall tenon.
Weight: 20 lbs. E.P.A: .86
35 7/8"
[911 mm]
26 3/4" [679 mm]
30 15/16" [786 mm]
TRADITIONAL SINGLE POLE
MOUNT ARM WITH 45°
UPPER BAR
[VA6112, VA6161, VA6012,
VA6061] Slipfits over 4" round
straight pole, or 4" O.D.
by 6" tall tenon.
Weight: 28 lbs. E.P.A: 1.38
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
62" [1575 mm]
Radius
12''
2''
[304 mm] [51 mm]
54 3/16''
[1376 mm]
BISHOP TWIN POLE MOUNT
ARM
[VA6107, VA6156, VA6007,
VA6056] Slipfits over 4" round
straight pole, or 4" O.D. by 6"
tall tenon.
Weight: 37 lbs. E.P.A: 1.43
35 7/8"
[911 mm]
26 3/4" [679 mm]
30 15/16" [786 mm]
TRADITIONAL SINGLE POLE
MOUNT ARM WITH ROUNDED
UPPER BAR
[VA6110, VA6159, VA6010, VA6059]
Slipfits over 4" round straight pole,
or 4" O.D. by 6" tall tenon.
Weight: 28 lbs. E.P.A: 1.4
30 15/16" [786 mm]
26 3/4" [679 mm]
18 7/8"
[480 mm]
35 7/16"
[900 mm]
TRADITIONAL SINGLE POLE MOUNT
ARM WITH 45° LOWER BAR
[VA6113, VA6162, VA6013, VA6062]
Slipfits over 4" round straight pole only.
Weight: 25 lbs. E.P.A: 1.14
TM
Type
Date
EPIC
COLLECTION
MEDIUM AND
LARGE ARM
SPECIFICATIONS
AVU070422
