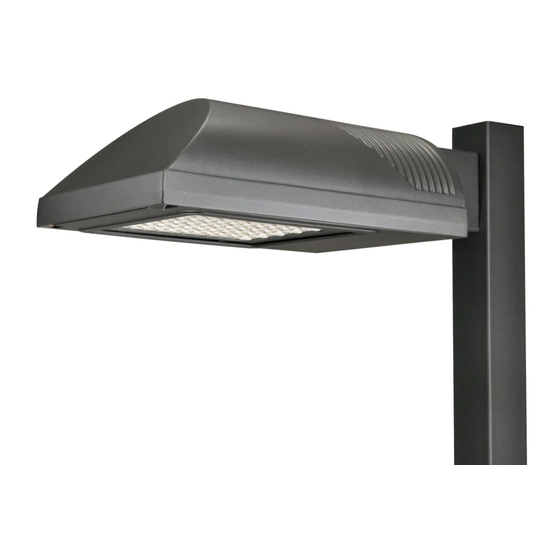

- Page 1 Talon Architectural Area Luminaire...
-
Page 2: Table Of Contents
TALON A R C H I T E C T U R A L A R E A L U M I N A I R E TABLE OF CONTENTS Performance + Versatility...3 Automotive Solutions ...5 Quality + Durability ...7 Control + Efficiency ...9 Specification Features ...13 Options + Accessories ...15... - Page 3 S I T E + P A R K I N G IMPENETRABLE FORM Coupling precise mechanical design with premium quality materials, the Talon site light is constructed to sustain the rigors of outdoor operation. Thick wall die-cast aluminum construction and channel set silicone gasketing form an impenetrable IP65 barrier optimizing optical efficiency and fixture longevity in the harshest of environments.
-
Page 4: Performance + Versatility
PERFORMANCE + VERSATILITY OPTICAL VERSATILITY Never before has a single luminaire supported this magnitude of optical choices, touting four [4] distinct families of optical assemblies, all with compelling performance. Hydroformed, segmented, vertical and specialty application optical systems allow finely tuned site lighting solutions with unprecedented levels of uniformity and control. - Page 5 OPTICAL SOLUTIONS AS DIVERSE AS THE ENVIRONMENTS THEY ILLUMINATE. Exterior lighting requirements continue to grow more stringent with added emphasis on light control and system efficiency. Whether the goal of your site lighting design is safety, general illumination or highlighting prominent features, Talon offers application-specific optical solutions that provide the highest level of photometric performance and control.
-
Page 6: Automotive Solutions
AUTOMOTIVE SOLUTIONS... - Page 7 OUTDOOR SITE LIGHTING THAT ENGAGES CUSTOMER AWARENESS. Exterior site lighting provides the first impression of an automotive dealership and is an outward expression of image. During daytime hours the exterior site lighting fixture form should be selected to lend focus to dealership architecture and branding. For evening operation, properly illuminated uniform site lighting will entice customers, drawing them into the dealership.
-
Page 8: Quality + Durability
QUALITY + DURABILITY DURABLE CAST CONSTRUCTION Low-copper alloy die-cast aluminum construction offers corrosion resistance while precise tolerance control ensures tight nesting of the door and housing. Combining heat extracting reveal channels with independent optical and electrical chambers that isolate heat producing sources, the Talon’s housing design is both functionally relevant and aesthetically pleasing. - Page 9 CONFIDENCE-INSPIRING QUALITY BEYOND THE SUM OF ITS PARTS. From the stainless steel hinges to the rugged housing, every detail of the Talon construction is precisely designed with industry leading craftsmanship. Heavy-wall die-cast aluminum construction, premium TGIC [triglycidyl isocyanurate] polyester powder coat paint and an IP65 rated optical cavity ensure Talon can endure the harshest environments.
-
Page 10: Control + Efficiency
CONTROL + EFFICIENCY LUMINAIRE CLASSIFICATION The IESNA’s revised Luminaire Classification System [TM15-07 revised] creates a new basis of measurement for site lighting visibility and adjacent property interaction. This technical memorandum subdivides the luminaire distribution into smaller angular zones and subzones to more clearly represent how much light is emitted at various angles. - Page 11 STEPPING UP TO THE CHALLENGE. As visual research advances so too the core understanding of how light interacts with surrounding communities and nocturnal environments. Utilizing this knowledge, Federal programs, national organizations and industry leaders institute guidelines for illuminating an area safely and securely while reducing energy, eliminating spill light and minimizing glare.
-
Page 14: Specification Features
SPECIFICATION FEATURES MOUNTING Extruded 8" [TLM Talon Medium] or 10 1/2" [TLL Talon Large] aluminum arm includes internal bolt guides allowing for easy positioning of fixture during installation to pole or wall surface. Standard single carton packaging of housing, square pole arm and round pole adapter for contractor friendly arrival of product on site. - Page 15 Certifications IP65 Rated U.L. 1598 Listed ISO 9001 CSA Listed 25°C Ambient FINISH Housing and arm finished in a 5 stage premium TGIC polyester powder coat paint, 2.5 mil nominal thickness for Black superior protection against fade and wear. Standard colors include black, bronze, grey, white, dark platinum, and graphite metallic.
-
Page 16: Options + Accessories
OPTIONS + ACCESSORIES ARM MOUNT Standard 8" [TLM] or 10 1/2" [TLL] extruded aluminum arm features internal bolt guides for twin support rods. Round pole mounting accommodated by utilizing provided round pole adapter between the fixture arm and pole shaft. EXTERNAL MAST ARM ADAPTER [MS] Cast aluminum mast arm adapter secures fixture head to nominal 2"... - Page 17 [Tenon Adapter] [VS] DEEP DOOR [DD] Medium housing vertically lamped optics are shipped standard with Deep Door. For sites combining horizontal and vertical optics, specify the Deep Door [DD] option on horizontal lamp fixtures to maintain a uniform outward aesthetic. Reflector shifted downward toward the lens to maintain optimal photometric performance [TLM only].
-
Page 18: Steel Poles + Brackets
Receptacle not included, provision only. 6 Aluminum poles only. 7 Maximum wire #8 AWG. 8 Location is 12" below pole top— 90° from handhole. CAUTION: Cooper Lighting poles have been designed to support only the luminaires and equipment originally intended. Miscellaneous items such as pennants, signs, and decorations may cause pole failure because of overloading. - Page 19 3.72 95 WARNING: THE USE OF UNAUTHORIZED ACCESSORIES SUCH AS BANNERS, SIGNS OR PENNANTS FOR WHICH THE POLE WAS NOT DESIGNED VOIDS THE COOPER LIGHTING WARRANTY AND MAY RESULT IN POLE FAILURE CAUSING SERIOUS INJURY OR PROPERTY DAMAGE. COOPER LIGHTING'S POLE WARRANTY IS ALSO VOIDED IF THE LUMINAIRE IS NOT INSTALLED AT TIME OF POLE INSTALLATION. THIS WARRANTY SPECIFICALLY EXCLUDES FAILURE AS THE RESULT OF A THIRD PARTY ACT OR OMISSION, MISUSE, UNANTICIPATED USES, FATIGUE FAILURE OR SIMILAR PHENOMENA RESULTING FROM INDUCED VIBRATION, HARMONIC OSCILLATION OR RESONANCE ASSOCIATED WITH MOVEMENT OF AIR CURRENTS AROUND THE PRODUCT.
-
Page 20: Aluminum Poles + Photometrics
EPAs calculated using base wind velocity as indicated plus 30% gust factor. WARNING: THE USE OF UNAUTHORIZED ACCESSORIES SUCH AS BANNERS, SIGNS OR PENNANTS FOR WHICH THE POLE WAS NOT DESIGNED VOIDS THE COOPER LIGHTING WARRANTY AND MAY RESULT IN POLE FAILURE CAUSING SERIOUS INJURY OR PROPERTY DAMAGE. - Page 21 PHOTOMETRICS [Complete IES files available at www.cooperlighting.com] A B C D TLM-175-MH-3V-FG TLM-175-MH-AS-FG 175-Watt MH 175-Watt MH 14,000-Lumen Clear Lamp 14,000-Lumen Clear Lamp Type III Vertical Area Square Flat Glass Flat Glass B C D E TLM-400-MH-3V-SG TLM-400-MH-4V-SG 400-Watt MH 400-Watt MH 36,000-Lumen Clear Lamp 36,000-Lumen Clear Lamp...
-
Page 22: Ordering Information [Tlm + Tll]
250-400W only. 8 Vertical lamp optics ship standard with deep door. 250-400W vertically lamped optics not available with flat glass. 9 Custom and RAL color matching available upon request. Consult Cooper Lighting Representative for further information. 10 Must specify voltage. 11 Quartz options not available with SL and AF optics. 12 House-side shield not available on 5S, 5F, AS, AR, and SL optics. - Page 23 120/277/347V wired 347V. 5-Tap is 120/208/240/277/480V wired 480V. 6 Maximum wattage on segmented optical distributions is 400W. 7 Custom and RAL color matching available upon request. Consult Cooper Lighting Representative for further information. 8 Must specify voltage. 9 Quartz options not available with SL and AF optics. 10 House-side shield not available on 5S, 5F, AS, AR, and SL optics.
- Page 24 Peachtree City, Georgia Cooper Lighting, McGraw-Edison, Talon and Accel Optics are valuable trademarks of Cooper Industries in the United States and other countries. You are not permitted to use the Cooper Trademarks without the prior written consent of Cooper Industries.
