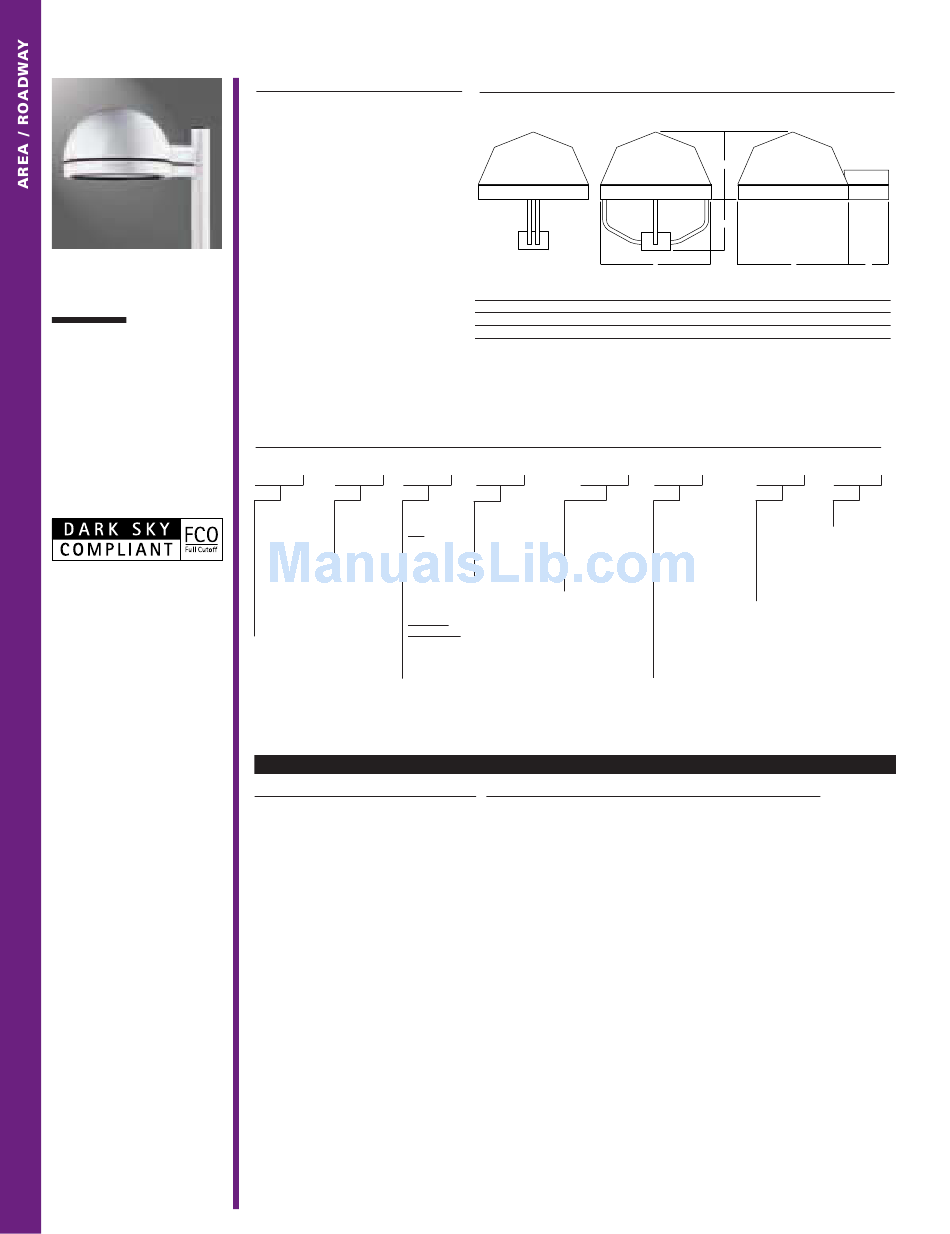

Cooper Lighting McGraw-Edison ZD Credenza Specification

MCGRAW-EDISON
ZD
CREDENZA
2 6 - 5 7 W
C o m p a c t F l u o r e s c e n t
7 0 - 1 0 0 0 W
M e t a l H a l i d e
H i g h P r e s s u r e S o d i u m
A R C H I T E C T U R A L
A R E A L U M I N A I R E
In Solid Top Configurations only.
• Spun-aluminum top is
finished in premium TGIC
polyester powder coat
• Long life core-and-coil
HID ballast
• Controlled and fully
rotatable optics offer ten
(10) distinct beam patterns.
Precision hydroformed or
premium segmented
optical modules available
• Heavy-duty, die-cast
aluminum frame is the
main load-bearing
structure for arm, yoke or
spider mountings
• Die-cast aluminum door
frame has concealed
hinges and is flush with
the bottom of the housing
• Thermal shock- and
impact-resistant clear
tempered flat glass
• Porcelain screw-shell
socket fits mogul-base HID
lamps. Medium-base
lamps are standard for
formed optics 150W and
below and segmented
optics up to 175W
• U.L. listed for wet
locations. CSA certified
• Approximate net weight:
64 lbs. (29 kgs.)
1166
COOPER LIGHTING
®
D E S C R I P T I O N
The Credenza series sets the
standard in flexibility for
architectural area lighting.
The Credenza is available in three
(3) sizes, so a single look can be
carried through diverse areas of a
project. Combined with three (3)
mounting varieties, MH or HPS
lamps, ten (10) optical packages
and numerous colors, the
Credenza offers unparalleled
variety in one family of fixtures.
U.L.listed and CSA certified for
wet locations.
The Credenza offers features so
versatile that it can be used in
small areas such as walkways and
large areas like parking lots, while
maintaining a look of continuity
throughout.
O R D E R I N G I N F O R M AT I O N
S A M P L E N U M B E R : Z D M - A M - 4 0 0 - M H - M T- 5 F - B K
Product Family Mounting Lamp
ZDS=Credenza Method Wattage
Small AM=Arm HID
Solid Top Mount 70=70W
ZDG=Credenza YM=Yoke 100=100W
Small Mount 3 150=150W
Luminous SM=Spider 175=175W
Top Mount 250=250W
1
ZDM=Credenza for 3" 400=400W
Medium O.D. 1000=1000W
Solid Top Tenon 3 Compact
ZDL=Credenza Fluorescent
Large 26=26W
Solid Top 2 32=32W
42=42W
57=57W
E.P.A. ZDS & ZDG: Arm Mount 1.19, Spider & Yoke Mount 1.13 / ZDM: Arm Mount 1.70, Spider & Yoke Mount 1.52
ZDL: Arm Mount 2.36, Spider & Yoke Mount 2.10
Options 14
F=Single Fuse (120, 277 or 347V)
FF=Double Fused (208, 240 or 480V)
P=Button Type Photocontrol (Specify Voltage)
R=NEMA Twistlock Photocontrol Receptacle
HS=House-side Shield
VS=Vandal Shield 15
NOTES: 1 Segmented optics not available. Available in 120 or 277V only. 2 Segmented optics not available. 3 Requires 4" round straight pole for ZDS. 5" round straight
pole for ZDG and ZDM. 6" round straight pole for ZDL. 4 All 70-150W lamps on formed optics and 70-175W lamps on small segmented optics are medium-base,
175-1000W are mogul-base. 5 150W HPS uses S-55 lamp (arc rating of 55V). 6 Must use reduced jacket ED-28 400W lamp when using a segmented optical system
in the medium housing. 7 1000W HPS not available in medium housing. Medium housing requires BT-37 lamp for Metal Halide and only available with formed
optics. 8 Available in Type III, IV and V distributions in small, solid top housing with segmented optics only. 9 Nominal length not to exceed 7". 10 Product also
available in non-US voltages and 50Hz for international markets. Consult factory for availability and ordering information. 11 Multi-Tap ballast is 120/208/240/277V
wired 277V. Triple-Tap ballast is 120/277/347V wired 347V. 12 Medium housing fixture only. 13 Other finish colors available, including a full line of RAL color
matches. Consult your Cooper Lighting Representative. 14 Add as suffix in the order shown. 15 400W Maximum. 16 Order separately, replace XX with color
suffix. 17 Not for use with 250W HPS. 18 Specifications and dimensions subject to change without notice.
D I M E N S I O N S
Y O K E M O U N T S P I D E R M O U N T
Fixture A B
ZDS-ZDG 20 1/2" [521mm] 10 1/4" [260mm]
ZDM 24" [610mm] 12 1/8" [308mm]
ZDL 28" [711mm] 14 1/4" [362mm]
Voltage 10
Lamp Type
4 120=120V
MH=Metal
208=208V
Halide
240=240V
HPS=High
277=277V
Pressure
5 480=480V
Sodium
MT=Multi-Tap
CF=Compact
TT=Triple-Tap
Fluorescent 8, 9
6
7
Accessories 16
OA/RA1016=NEMA Photocontrol/Multi-Tap—Multi-Tap
OA/RA1027=NEMA Photocontrol/Multi-Tap—480V
MA1001XX=Wall Bracket for Solid Top
MA1003XX=Wall Bracket for Luminous Top
A R M M O U N T
B
C
A A
C D
11" [279mm] 6" [152mm]
12 5/8" [321mm] 7 1/2" [191mm]
16" [406mm] 9" [229mm]
Distribution Color 13
1F=Type I Formed 12 (add as suffix/
2F=Type II Formed must specify)
2S=Type II BK=Black
Segmented BZ=Bronze
3F=Type III Formed AP=Grey
3S=Type III WH= White
11
Segmented DP=Dark Platinum
11
4S=Type IV GM=Graphite Metallic
Segmented
5F=Type V
Formed
5S=Type V
Segmented
FT=Forward Throw
SL=Spill Light
Eliminator 6
17
D
Options &
Accessories
(See Below)
