MCGRAW-EDISON
PSL
PARKING
STRUCTURE
LUMINAIRE
7 0 - 2 0 0 W
M e t a l H a l i d e
P u l s e S t a r t M e t a l H a l i d e
H i g h P r e s s u r e S o d i u m
E l e c t r o d e l e s s F l u o r e s c e n t
B O R O S I L I C AT E G L A S S
PA R K I N G S T R U C T U R E
L U M I N A I R E
• Formed aluminum flush
draw-action latches offer
easy access to lamp
compartment without
tools and maintain
integrity of seal when
closed
• HID—4KV pulse rated
medium-base with
nickel-plated screw shell
• HID—HPF, -20º starting
Dual-Tap standard. For
use with up to 175W Metal
Halide lamp, 150W High
Pressure Sodium or 85W
QL Induction
• Molded borosilicate glass
refractor. Glass shock-
absorbing system
consists of 16 gauge steel
ring to support the full
round lens; the lens floats
on the injection-molded
silicone gasket for
additional protection.
Optional polycarbonate
lens available
• Liquid injection-molded
silicone gasket provides
continuous seal between
housing and refractor
assembly
• U.L. listed and CSA
certified for wet locations
in all mounting positions;
IP65 rated
• Approximate net weight:
34 lbs. (15 kgs.)
1200
COOPER LIGHTING
®
D E S C R I P T I O N
The McGraw-Edison PSL Parking
Structure Luminaire is a
multi-purpose parking luminaire.
The refractor provides proper 3D
illumination for parking garages
while the glare guard and light
trespass shield add extra measure
of visual comfort and control.
The PSL improves drivers vision
and pedestrian safety in parking
garage facilities.
O R D E R I N G I N F O R M AT I O N
S A M P L E N U M B E R : P S L - 1 7 5 - M H - M T- W H
Product Lamp Lamp Type
Family Wattage MH=Metal
PSL=Parking 70=70W
Structure 85=85W 1 MP=Pulse
Luminaire 100=100W
150=150W
175=175W
200=200W 2 HPS=High Pressure
QL=Electrodeless
Options 9
F=Single Fuse (120, 277 or 347V)
FF=Double Fuse (208, 240 or 480V)
EM=Quartz Restrike with Time Delay (Hot & Cold Restrike)
Q=Quartz Restrike (Hot Restrike Only)
EM/SC=Emergency Separate Circuit
CT=Conduit Tap
LAG=Less Antenna Guard 10
PL=Polycarbonate Lens (AccUView Inhibitor Applied)
TR=Tamper Proof
L=Lamp Included 12
NOTES: 1 85W QL Electrodeless Fluorescent only. Available with electronic ballast only. Specify 120V for 100-120V, 277V for 200-277V. 2 Pulse Start Metal Halide only.
3 175W and 200W only. 4 Product also available in non-US voltages and 50Hz for international markets. Consult factory for availability and ordering
information. 5 Dual-Tap ballast is 120/277V wired 277V. 6 Multi-Tap ballast is 120/208/240/277V wired 277V. 7 Triple-Tap ballast is 120/277/347V wired 347V.
8 Other finish colors available, including a full line of RAL color matches. Consult your Cooper Lighting Representative. 9 Add as suffix in the order shown.
10 Removes standard cast aluminum protective cage assembly. 11 Maximum use of (2) GG60's or (2) LTS accessories when used with wattages in excess of
100W. 12 Lamp is shipped separate from luminaire. Lamp is Cooper designated product based on luminaire requirements. Specified lamps must be ordered
as a separate line item. 13 Order separately, replace XX with color suffix. 14 Specifications and dimensions subject to change without notice.

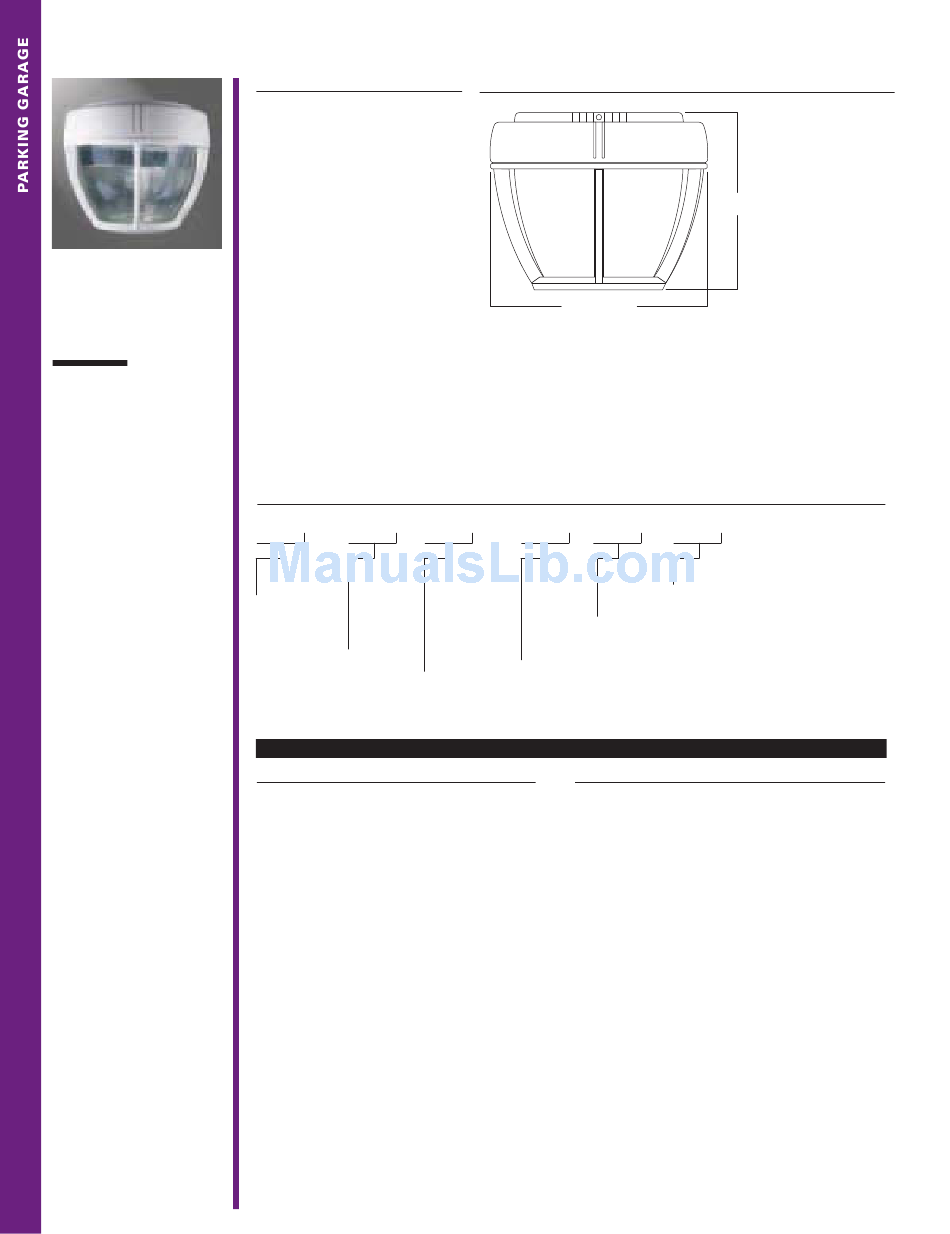

D I M E N S I O N S
14 3/4" [375mm]
Voltage 4 Color
120=120V WH=White
Halide 208=208V AP=Grey
240=240V BZ=Bronze
Start 277=277V BK=Black
Metal 480=480V
Halide (CWA) 3 DT=Dual-Tap 5
MT=Multi-Tap 6
Sodium TT=Triple-Tap 7
Fluorescent 1
Accessories
PSL/BGL-XX=Bird Guard
PSL/GG60=Glare Guard
PSL/LTS-XX=Light Trespass Shield
PSL/TM=Trunnion Mount Kit
11
11 7/8"
[302mm]
8 Options &
Accessories
(See Below)
13
