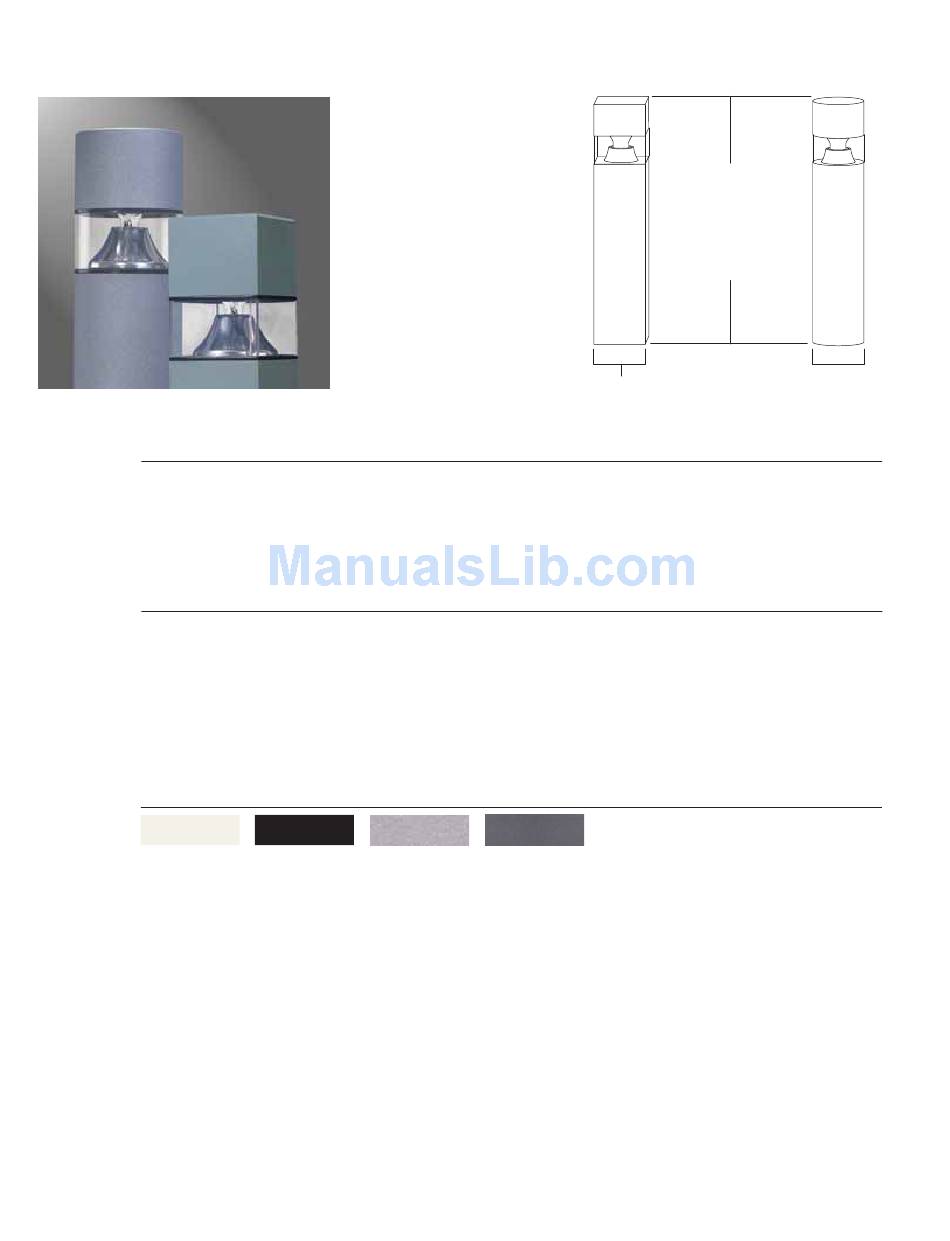

PAT H W AY
SBS/SBR
PAT H W AY L U M I N A I R E
STREETWORKS
™
T O P
O R D E R I N G I N F O R M AT I O N
Rugged heavy-duty aluminum top
S A M P L E N U M B E R
provides rapid heat dissipation.
PRODUCT
L E N S
FAMILY
Impact-resistant clear acrylic lens
SB=Bollard
measures 1/4" thick. Optional
polycarbonate lens is available as
an option (Standard on units over
100 watts).
O P T I C S
Lower dispersing reflector
O P T I O N S + A C C E S S O R I E S
combines with truncated octagonal
upper collecting reflector to provide
OPTIONS (add as suffix)
low-glare, efficient illumination with
1=Single Fuse (120, 277, or 347V)
optimum uniformity.
2=Double Fused (208 or 240V)
AY=Asymmetric Distribution
H O U S I N G
RF=Refractor (Borosilicate Glass Refractor)
Heavy-duty seamless extruded
L=Lamp Included
aluminum tube lifts off base for
BK=Black
easy access to ballast. Finished in
WH=White
weather- and abrasion resistant
DP=Dark Platinum
polyester powder coat. Standard
GM=Graphite Metallic
bronze finish. Other finishes
available. Consult your Streetworks
Representative.
O P T I O N A L C O L O R S
B A L L A S T
Quick-disconnect ballast is located
at base of housing for cooler
operation and easy maintenance.
Ballast assembly mounted on
WH
bracket and secured to base with
White
two screws.
B A S E
Rugged cast-aluminum base is
completely sealed.
S H I P P I N G D ATA
Approximate Net Weight:
26 lbs. (12 kgs.)
NOTES: 1 All lamps are medium-base. 2 Refer to technical section for lamp/ballast/voltage compatibility.
154
S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s
BOLLARD
: S B S 1 0 0 M 1 2 W 3 6 6
HOUSING
LAMP
LAMP TYPE
M=Metal Halide
SHAPE
WATTAGE
1
S=High Pressure
S=Square
50=50W
Sodium
R=Round
70=70W
10=100W
15=150W
17=175W
[ M u s t b e l i s t e d i n t h e o r d e r s h o w n a n d s e p a r a t e d b y a d a s h ]
ACCESSORIES (order separately)
LA2=Asymmetric Reflector
TRSD=8/32 Screwdriver for Tamper-Proof Retaining Screws
[ S t a n d a r d c o l o r i s b r o n z e , o t h e r f i n i s h c o l o r s a v a i l a b l e . C o n s u l t y o u r C o o p e r L i g h t i n g r e p r e s e n t a t i v e ]
BK
DP
Black
Dark Platinum
7" [178mm] Square
SBS
SOCKET
BALLAST
VOLTAGE
2
1=Medium
1=NPF
2=120V
2=HPF
0=208V
4=240V
7=277V
W=Multi-Tap wired 120V
GM
Graphite Metallic
50-175W
MH/HPS
42"
[1067mm]
36"
[914mm]
32"
[813mm]
28"
[711mm]
24"
[610mm]
8" [203mm] Round
SBR
FIXTURE HEIGHT
OPTIONS +
24=24"
ACCESSORIES
28=28"
(See Below)
32=32"
36=36"
42=42" (Standard)
