Cooper Lighting Flat Glass OVF15SWW2D4 Specification Sheet

R O A D W AY

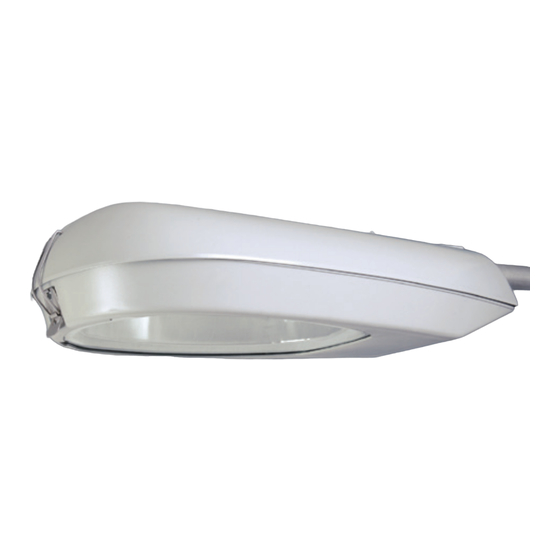

OVF FLAT GLASS
R O A D W AY L U M I N A I R E
STREETWORKS ™
H O U S I N G
O R D E R I N G I N F O R M AT I O N
Die-cast aluminum housing with
S A M P L E N U M B E R
stainless steel bail latch. Standard
grey polyester powder coat finish.
PRODUCT
Other finish colors available.
FAMILY
Consult your Streetworks
OVF
Representative. Optional NEMA
twistlock photocontrol receptacle
also available.
S O C K E T
Adjustable mogul-base porcelain
socket.
D O O R
Die-cast aluminum door frame with
integral hinges for hands free
O P T I O N S + A C C E S S O R I E S
installation, relamping and
maintenance. ANSI wattage/source
label.
OPTIONS (add as suffix)
1=Single Fuse, Internally Mounted (120, 277V)
L E N S
2=Double Fuse, Internally Mounted (208, 240 & 480V)
Removable tempered flat glass
4=Photocontrol Receptacle
lens.
WH=White
BK=Black
R E F L E C T O R
BZ=Bronze
The optical system is a
E=150W/100V/HPS Ballast
hydroformed anodized aluminum
H=Plug-in Starter Receptacle
reflector with a Dacron polyester
K=Level Indicator
filter.
L=Lamp
M=MOV Lightning Surge Protector
B A L L A S T A S S E M B LY
T=Swing-down Ballast Bridge
Hard mounted ballast with
U=UL/CSA Listed
encapsulated starter for protection
from environmental abuse.
Standard two position tunnel type
O P T I O N A L C O L O R S
compression terminal block.
Optional swing-down ballast bridge
also available (Not available for 3G
applications).
WH
M O U N T I N G
White
Two-bolt/one bracket slipfitter with
cast-in pipe stop and leveling steps.
Fixed-in-place birdguard seals
around 1 1/4" or 2" mounting arms.
(Birdguard not needed for 2" arm.)
E P A :
Effective Projective Area: .51
S H I P P I N G D ATA
Approximate Net Weight:
NOTE: 1 150W units are for S55 lamp. 2 Metal Halide requires ED28 lamp. 3 Refer to technical section for lamp/ballast/voltage compatibility. 4 Not available in 400W. 5 MOV option is not available for any system requiring a three
30 lbs. (18 kgs.) position terminal block (Example—240V with PCR wired120V). In order for MOV option to function center terminal of three position terminal block must be connected to "Earth" ground.
122 S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s
: O V F 1 5 S W W 2 D 4
LAMP WATTAGE LAMP TYPE 3
15=150W 1 S=High Pressure
20=200W Sodium
25=250W V=Mercury 4
31=310W M=Metal Halide
40=400W 2
24=250/400W
wired 250W 2
42=400/250W
wired 400W 2
[ M u s t b e l i s t e d i n t h e o r d e r s h o w n a n d s e p a r a t e d b y a d a s h ]
5
[ S t a n d a r d c o l o r i s g r e y, o t h e r f i n i s h c o l o r s a v a i l a b l e . C o n s u l t y o u r C o o p e r L i g h t i n g r e p r e s e n t a t i v e ]
BK BZ
Black Bronze
BALLAST TYPE 3 VOLTAGE 3
C=CWI 2=120V
M=Mag. Reg. 0=208V
W=CWA 4=240V
R=Reac./NPF 7=277V
P=Hi. Reac./HPF 8=480V
H=Reac./HPF 9=347V
N=Hi. Reac./NPF F=120/240 wired 120V
K=10KV CWA P=240 w/PCR wired 120V
W=Multi-Tap wired 120V
N=Multi-Tap wired 277V
V=Multi-Tap wired 240V
ACCESSORIES (order separately)
OA/RA1013=Photocontrol Shorting Cap
OA/RA1014=120V Photocontrol
OA/RA1016=105V-285V Photocontrol
OA/RA1027=480V Photocontrol
OA1028=Field Installed PCR Kit
OA1214=TufGuard Vandal Shield
MH/HPS/MERCURY
30" [762mm]
7"
[178mm]
16 15/16" [430mm]
DISTRIBUTION 5 CUTOFF
1=Type I D=MCO
2=Type II
3=Type III
C o o p e r L i g h t i n g
150-400W
OPTIONS +
ACCESSORIES
(See Below)
