Cooper Lighting SURE-LITES CCX20RWH Specification Sheet

COOPER LIGHTING - SURE-LITES
CCX SERIES
P o l y c a r b o n a t e
A C O n l y
I n c a n d e s c e n t ,
Fluorescent, LED Lamping
E X I T L I G H T I N G
• Dual voltage input
120/277 VAC, 60 Hz
• Injection molded, high
impact, polycarbonate
housing
• Designer white textured
finish standard (Black
Available-Fluorescent Only)
• AC LED: long life LED lamp
modules
• AC fluorescent: two 5W
F5TT lamps
• AC incandescent: two
145V, 15W T6 lamps
(candelabra base)
• Ceiling, wall or end
mountable
• Universal J-box mounting
pattern
• Push-in power connectors
facilitate installation
• Snap-fit canopy included
• Components are snap-fit
construction, reinforcing
ribs add strength
• Snap-out chevron
directional indicators
• UL FTBR Listed with 2C
option (7W Lamps Only.
Fluorescent Exits Only.)
• Damp Location Listed, UL
924 Listed, Life Safety
NFPA 101, CSA Certified,
NEC/OSHA, most state and
local codes, suitable for
floor proximity installation
• Patent No. 5,735,498 and
5,678,336
644
COOPER LIGHTING
D E S C R I P T I O N
The CCX Series Contractor's
Choice Exit is an economical,
attractive, alternative to metal
exits. Contemporary round
corner styling, designer
finish, and consistent family
appearance enables it to blend
with any decor. The tough
injection molded polycarbonate
materials resist discoloration.
All components, including
canopy and chevron directional
indicators, are of snap-fit
construction to facilitate
installation.
O R D E R I N G I N F O R M AT I O N
S A M P L E N U M B E R : C C X 2 0 R W H
CCX
Family
CCX=Contractor's
Choice Exit
Series
2=AC Only with 145V,
15W T-6 AC
Incandescent Lamps
4=AC Only with 5W F5TT
Compact Fluorescent
Lamps
6=AC only with
LED Lite Stix™
Face Options
0=Universal
1=Single Face
2=Double Face
Battery
Blank=No Battery
E n e r g y D a t a
Incandescent Exits -15W Lamps
Incandescent Exits -7W Lamps
Fluorescent Exits -5W Lamps
Fluorescent Exits - 7W Lamps
Fluorescent Exits -7W Lamps (2C Option)8.7W 13.3W
All ratings are per circuit
LED Exits- Red Letters
LED Exits - Green Letters
NOTES: (1) Available only for incandescent and fluorescent versions. GWO, RWO, WGO, and WRO are open face style lenses with "EXIT" legend.
Use "O" option for ordering special wording-lenses ordered separately (consult your Cooper Lighting Representative).
with white housings, three-lamp kits are required for black housings.
®

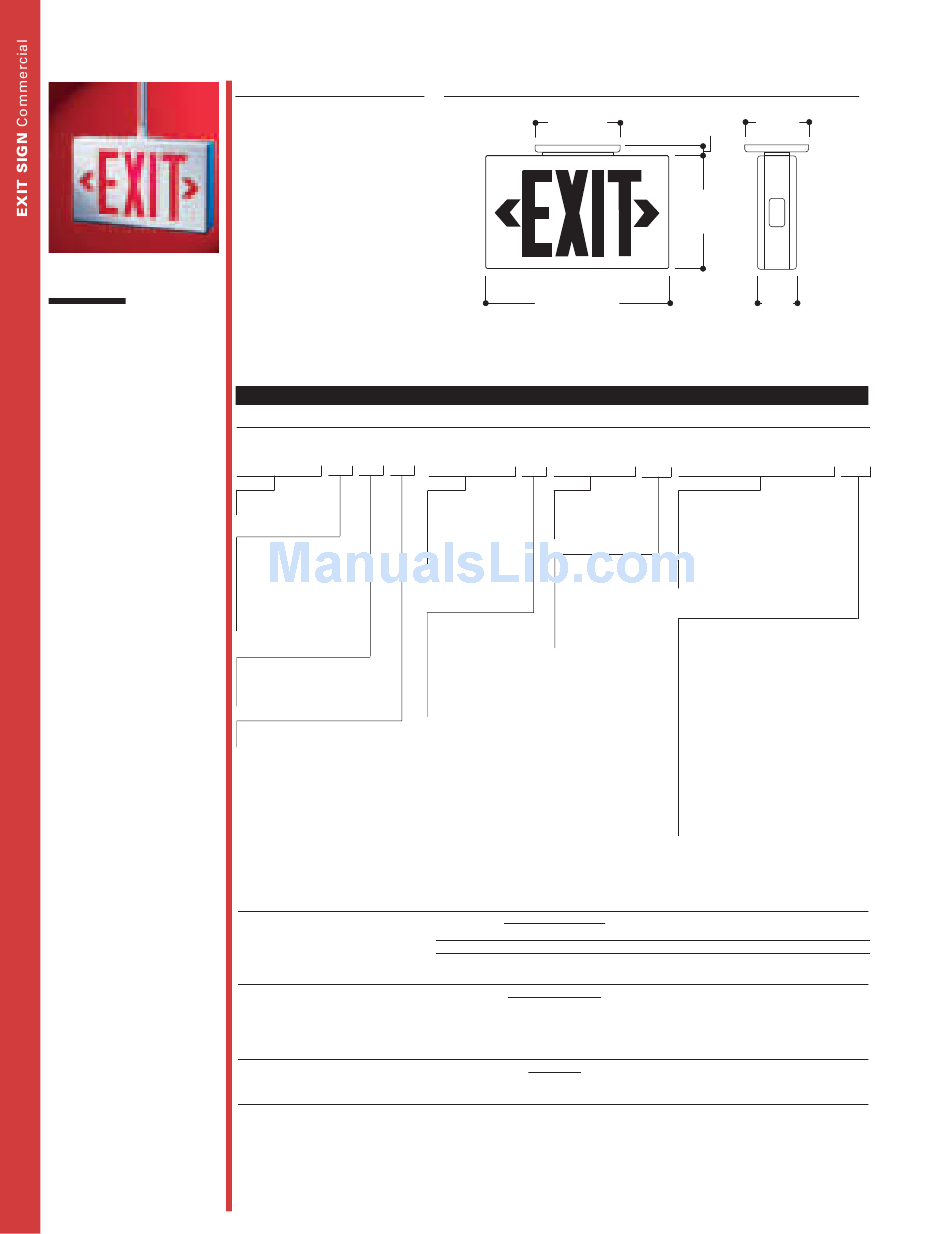

D I M E N S I O N S
6" (152mm)
13" (330mm)
Factory Housing Finishes
BK=Black
Options
(Fluorescent Only)
Blank=No Options
WH=White
65=Tamperproof
Screws
95=AC Fire Alarm
Voltage
Interface (for
Blank=120 VAC
Incandescent &
7=120/277 VAC
LED)
(for Incandescent
& Fluorescent)
7=277 VAC
Letter Colors (1)
(LED only)
R=Red
47=120/347 VAC
G=Green
(Incandescent
(1)
RWO=Red on White
only)
GWO=Green on White (1)
WRO=White on Red (1)
WGO=White on Green (1)
O=Open Face (1)
Incandescent Exits
Input Power: Input Current(Max.): Power Factor:
120V 277V 120V 277V
23.1W 30.0W .19A .19A
12.5W 19.6W .10A .17A
Fluorescent Exits
16.3W 24.4W .14A .33A
18.0W 26.2W .15A .31A
.16A .14A
LED Exits
1.8W 2.6W .09A .11A
3.2W 4.5W .08A .10A
4 1/2"
3/4"
(114mm)
(19mm)
8"
(203mm)
2 3/4"
(70mm)
Factory Options
2C=Two Circuit Operation -
includes 7W lamps
(Fluorescent Only)
C7=130V, 7W C-7 AC
Incandescent Lamps
(Incandescent Only)
7W=7W Compact Fluorescent
Lamps (Fluorescent Only)
Accessories (Order Separately)
CCX18PKBK=18" Pendant Kit, Black
CCX18PKWH=18" Pendant Kit, White
CCX18PKHTBK=18" Hang-True
Pendant Kit, Black
CCX18PKHTWH=18" Hang-True
Pendant Kit, White
CCX6 (2) =Two-Lamp 6V DC Lamp Kit
CCX12 (2) =Two-Lamp 12V DC Lamp Kit
(2)
CCX63 =Three-Lamp 6V DC Lamp Kit
CCX123 (2) =Three-Lamp 12V DC Lamp Kit
CCX277=277V Conversion Kit
VRSD=Tamper Resistant Screwdriver
WG10=Surface, Wire Guard
WGS11=Ceiling, End Wire Guard
VS1=Polycarbonate Vandal Shield
VS1WP=Polycarbonate Vandal Shield -
Weatherproof
T.H.D.:
120V 277V 120V 277V
>.97 >.27 <20% <25%
>.97 >.33 <23% <29%
>.45 >.34 <11% <28%
>.17 >.09 <18% <10%
>.33 >.15 <28% <16%
(2) Two-lamp kits are for use
