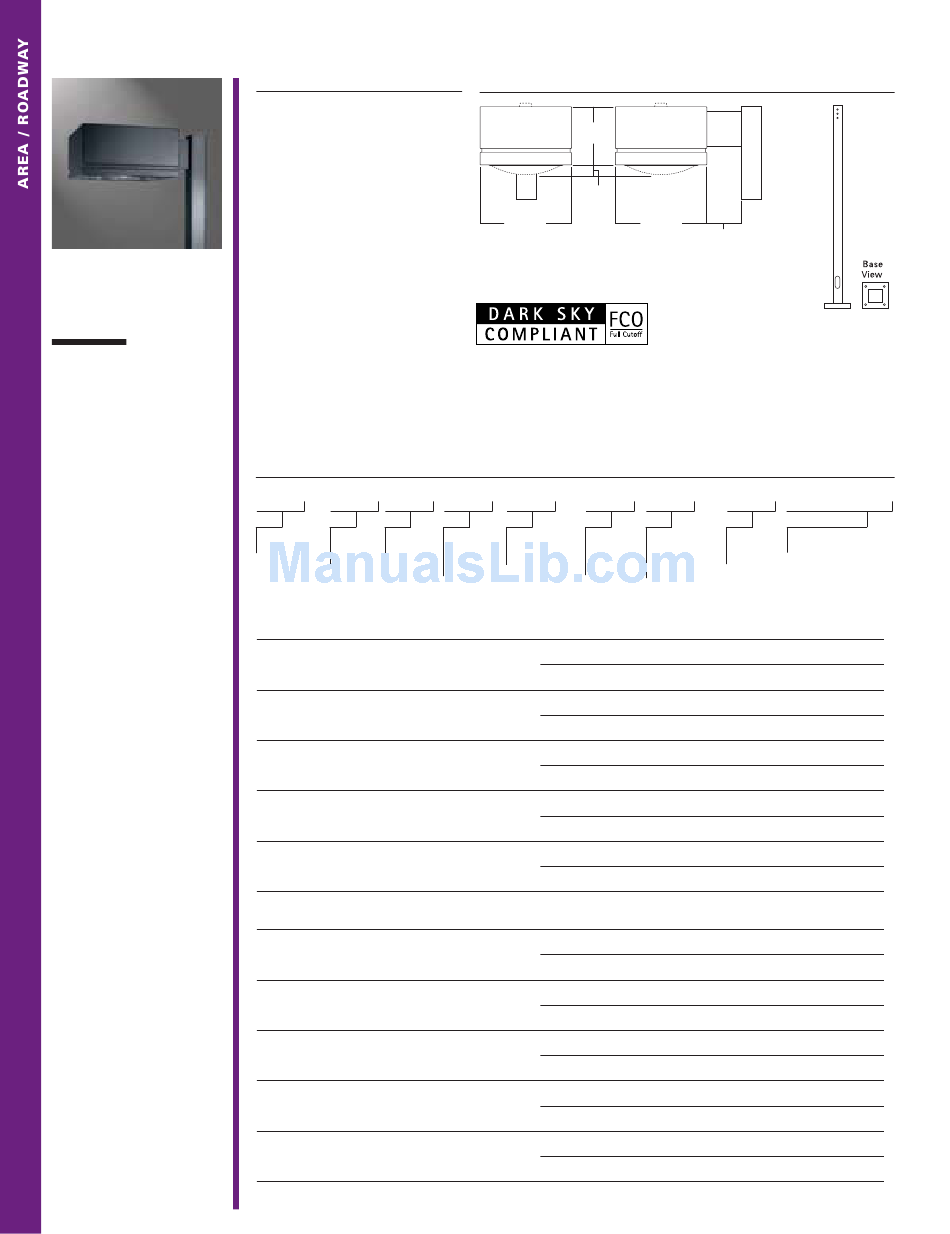

Cooper Lighting McGraw-Edison PFM Specification Sheet

MCGRAW-EDISON
PFM
GALLERIA AND
POLE COMBO
4 0 0 - 1 0 0 0 W
M e t a l H a l i d e
2 0 ' - 3 0 '
S q u a r e S t r a i g h t S t e e l
P o l e
P O L E A N D F I X T U R E
C O M B O
• Formed aluminum
housing with stamped
reveal has interior-welded
seams for structural
integrity and is finished
in premium TGIC
polyester powder coat
• Ballast tray is
hard-mounted to housing
interior for cooler
operation
• Spun and stamped
aluminum reflector.
Rotatable optics standard
• Formed aluminum door
has heavy-duty hinges,
captive retaining screws
and is finished
in premium TGIC
polyester powder coat
• Long-life core and coil
ballast
• Convex tempered glass
lens or flat glass
• U.L. listed for wet
locations. CSA certified
1162
COOPER LIGHTING
®
D E S C R I P T I O N
The McGraw-Edison Galleria Pole
fixture combo features all you
need for easy selection and
installation of a full site lighting
package. A square straight steel
pole, 11 1/2" arm and necessary
anchorage accompany the high
quality formed aluminum Galleria
housing. Available in single or
dual fixture combinations.
E.P.A. 3.12
O R D E R I N G I N F O R M AT I O N
S A M P L E N U M B E R : P F M 1 4 0 S M S 2 0
Series No. of Lamp
Wattage
PFM=Galleria Fixtures
Square 40=400W
1=1
Medium
1K=1000W
SINGLE FIXTURE [FLAT GLASS]
Catalog Number
20' 400W MH
(Square Straight Steel—4" Shaft)
25' 400W MH
(Square Straight Steel—4" Shaft & 5" Shaft
25' 1000W MH
(Square Straight Steel—4" Shaft & 5" Shaft
30' 400W MH
(Square Straight Steel—5" Shaft & 6" Shaft
30' 1000W MH
(Square Straight Steel—5" Shaft & 6" Shaft
SINGLE FIXTURE [SAG GLASS]
Catalog Number
20' 400W MH
(Square Straight Steel—4" Shaft)
25' 400W MH
(Square Straight Steel—4" Shaft & 5" Shaft
25' 1000W MH
(Square Straight Steel—4" Shaft & 5" Shaft
30' 400W MH
(Square Straight Steel—5" Shaft & 6" Shaft
30' 1000W MH
(Square Straight Steel—5" Shaft & 6" Shaft
NOTES: 1 0 or 9 are noted where needed to designate a heavier gauge pole. 2 Additional lead times may apply.
D I M E N S I O N S
11"
[279mm]
3 1/2"
[89mm]
21 3/4"
[552mm]
NOTE: Top cap used on GSM with 1000W flat glass vertically lamped optics only.
In all flat glass configurations.
Distribution Lamp Source Lens Type
(Included) F=Flat
S=Area
Glass
Square M=Metal Halide
S=Sag
3=Type III
Glass
Vertical
Distribution 80 MPH Zone
Area Square PFM140SMF20
Type III Vertical PFM1403MF20
Area Square PFM140SMF25
2 )
Type III Vertical PFM1403MF25
Area Square PFM11KSMF25
2 )
Type III Vertical PFM11K3MF25
Area Square PFM140SMF30
2 )
Type III Vertical PFM1403MF30
Area Square PFM11KSMF30
2 )
Type III Vertical PFM11K3MF30
Distribution 80 MPH Zone
Area Square PFM140SMS20
Type III Vertical PFM1403MS20
Area Square PFM140SMS25
2 )
Type III Vertical PFM1403MS25
Area Square PFM11KSMS25
2 )
Type III Vertical PFM11K3MS25
Area Square PFM140SMS30
2 )
Type III Vertical PFM1403MS30
Area Square PFM11KSMS30
2 )
Type III Vertical PFM11K3MS30
21 3/4"
[552mm]
11 1/2"
[292mm]
Pole Height (ft.) Zone 1 Options
20=20' 9=90 mph N/AB=No Anchor
25=25' 0=100 mph
30=30'
90 MPH Zone 1 100 MPH Zone
PFM140SMF20 PFM140SMF20
PFM1403MF20 PFM1403MF20
PFM140SMF25 PFM140SMF250
PFM1403MF25 PFM1403MF250
PFM11KSMF25 PFM11KSMF250
PFM11K3MF25 PFM11K3MF250
PFM140SMF309 PFM140SMF300
PFM1403MF309 PFM1403MF300
PFM11KSMF309 PFM11KSMF300
PFM11K3MF309 PFM11K3MF300
90 MPH Zone 1 100 MPH Zone
PFM140SMS20 PFM140SMS20
PFM1403MS20 PFM1403MS20
PFM140SMS25 PFM140SMS250
PFM1403MS25 PFM1403MS250
PFM11KSMS25 PFM11KSMS250
PFM11K3MS25 PFM11K3MS250
PFM140SMS309 PFM140SMS300
PFM1403MS309 PFM1403MS300
PFM11KSMS309 PFM11KSMS300
PFM11K3MS309 PFM11K3MS300
Bolts (Used
when ordered
separately)
1
2
2
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2
