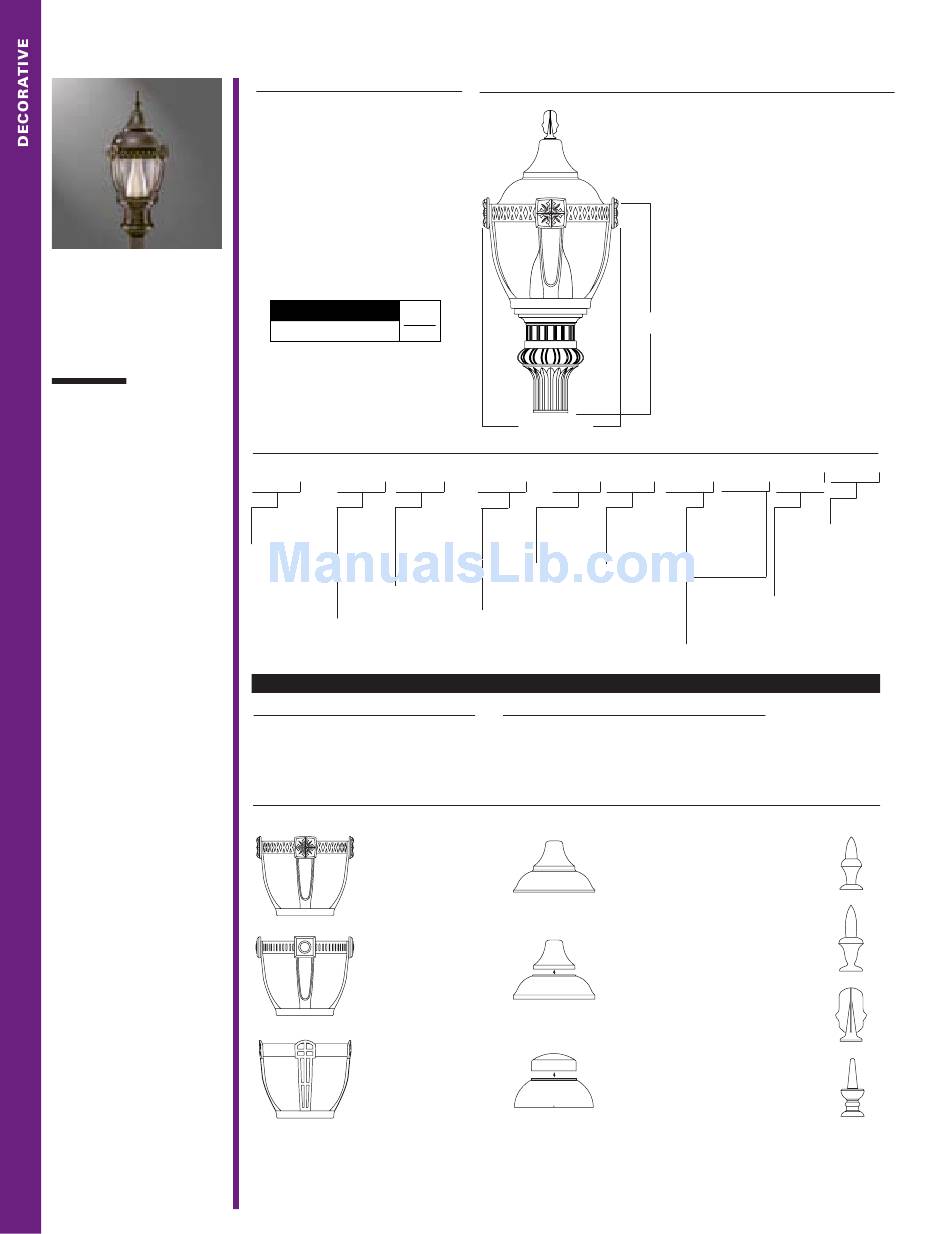

Cooper Lighting MCGRAW-EDISON GAR-C Specification Sheet

MCGRAW-EDISON
GAR-C
GENERATION
SERIES
CVL CUTOFF
POST TOP
5 0 - 4 0 0 W
M e t a l H a l i d e
H i g h P r e s s u r e S o d i u m
E l e c t r o d e l e s s F l u o r e s c e n t
D E C O R AT I V E L U M I N A I R E
• All hard mount tops are
made of spun aluminum.
Nostalgic and architectural
tops are provided with
toolless access for ease of
maintenance. Finials are
cast aluminum
• Highly specular multi-
faceted CVL reflector
system provides a Type III
or V distribution. Vertical
lamp position maximizes
light output, ensures a
uniform distribution and
minimizes direct glare
• Clear injection molded 9"
globe is HID acrylic or
optional polycarbonate
• Decorative spun brushed
aluminum electrical cover
provided
• Ballast assembly is
mounted on a removable
tray with quick
disconnects for ease of
installation and
maintenance
• Optional NEMA PCR is
provided with quick
disconnects for ease of
maintenance
• Post top mount fits 3" O.D.
tenons. Four (4) stainless
steel fasteners standard
• Approximate net weight:
50 lbs. (23 kgs.)
1176
COOPER LIGHTING
®
D E S C R I P T I O N
The Generations CVL Acorn
Series is the marriage of
traditional shapes and
contemporary styling. The CVL
optical system offers low
brightness while providing
excellent performance and
uniformity. Its styling blends
well in many settings-downtown
streetscapes, roadways,
residential neighbor hoods
and city parks
D A R K S K Y
CO
C O M P L I A N T
Cutoff
O R D E R I N G I N F O R M AT I O N
S A M P L E N U M B E R : G A R - 1 5 0 - M H - 1 2 0 - 3 C - N C N - B Z
Product Lamp Lamp Type
Family Wattage MH=Metal
GAR=Acorn 50=50W Halide
70=70W HPS=High
85=85W 1 Pressure
100=100W Sodium
150=150W QL=Electrodeless
175=175W Fluorescent
250=250W
400=400W 2, 3
E.P.A. 2.1
Options 9
F=Single Fuse (120, 277 or 347V)
FF=Double Fuse (208, 240 or 480V)
CC=Matte Black Electrical Cover 10
D=Diffused Acrylic Lens
R=Internal NEMA photocontrol Receptacle
L=Lamp Included
Configurations
Cage Type
Classical
Modern
Architectural
NOTES: 1 85W QL Electrodeless Fluorescent only. 120 or 240V only. 2 Not available in 480V. 3 400W available in Metal Halide only. Requires reduced envelope ED-28
lamp. 4 Medium-base lamps standard for 150W and below Metal Halide. 5 Product also available in non-US voltages and 50Hz for international markets.
Consult factory for availability and ordering information. 6 Multi-Tap ballast is 120/208/240/277V wired 277V. 7 Triple-Tap ballast is 120/277/347V wired 347V.
8 Other finish colors available, including a full line of RAL color matches. Consult your Cooper Lighting Representative. 9 Add as suffix in the order shown.
10 Matte black cover available with black finish only. 11 Order separately. 12 Specifications and dimensions subject to change without notice.
D I M E N S I O N S
[643mm]
18 3/4" [476mm]
Refractor Top Type
Voltage 5
Type C=Classical
120=120V
4 3C=Type III N=Nostalgic
208=208V
Cutoff (Top Access)
240=240V
5C=Type V R=Architectural
277=277V
Cutoff (Top Access)
347=347V
480=480V
1
MT=Multi-Tap 6
TT=Triple-Tap 7
Accessories 11
OA/RA1016=NEMA Twistlock Photocontrol—Multi-Tap
OA/RA1027=NEMA Twistlock Photocontrol—480V
OA1201=NEMA Twistlock Photocontrol—347V
Top Type
Classical
(Spun Top)
Nostalgic
(Spun Top Access)
Architectural
(Spun Top Access)
24 1/3"
Cage Type Color 8
A=Architectural AP=Grey
C=Classical BZ=Bronze
M=Modern BK=Black
X=None GN=Hartford Green
WH=White
DP=Dark Platinum
Finial Type
GM=Graphite Metallic
A=Architectural
M=Modern
N=Nostalgic
V=Victorian
X=None
Options &
Accessories
(See Below)
Finial Type
Architectural
Modern
Victorian
Nostalgic
