Moxa Technologies W345 Quick Installation Manual

W345
Quick Installation Guide
Third Edition, July 2009

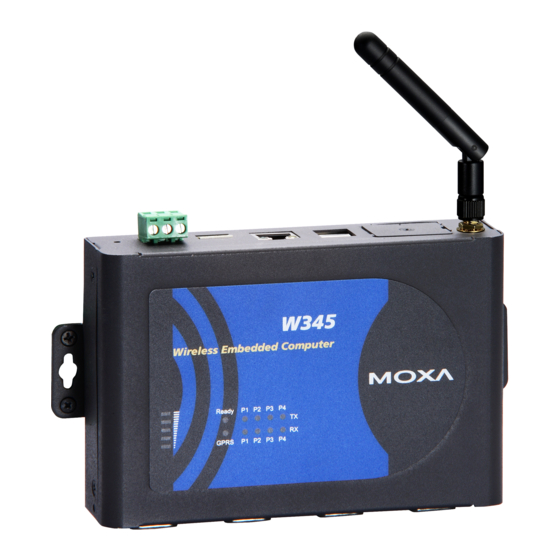

1. Overview
The W345 embedded computer has four RS-232/422/485 serial ports,
one 10/100 Mbps Ethernet port, an embedded GSM/GPRS module, an
SD socket interface for storage expansion, two USB 2.0 host ports, and
one relay output channel. This combination of features makes the
W345 ideal for your wireless embedded applications.
2. Package Checklist
Before installing W345, verify that the package contains the following
items:
1 W345 embedded computer
Wall mounting kit
Quick Installation Guide
Document & Software CD
Ethernet Cable: RJ45 to RJ45 cross-over cable, 100 cm
CBL-4PINDB9F-100: 4-pin header to DB9 female console port cable,
100 cm
GSM/GPRS Antenna
Universal Power Adaptor
Product Warranty Statement
Optional Accessories
35 mm DIN-Rail Mounting Kit (DK-35A)
Please notify your sales representative if any of the above items are
missing or damaged.

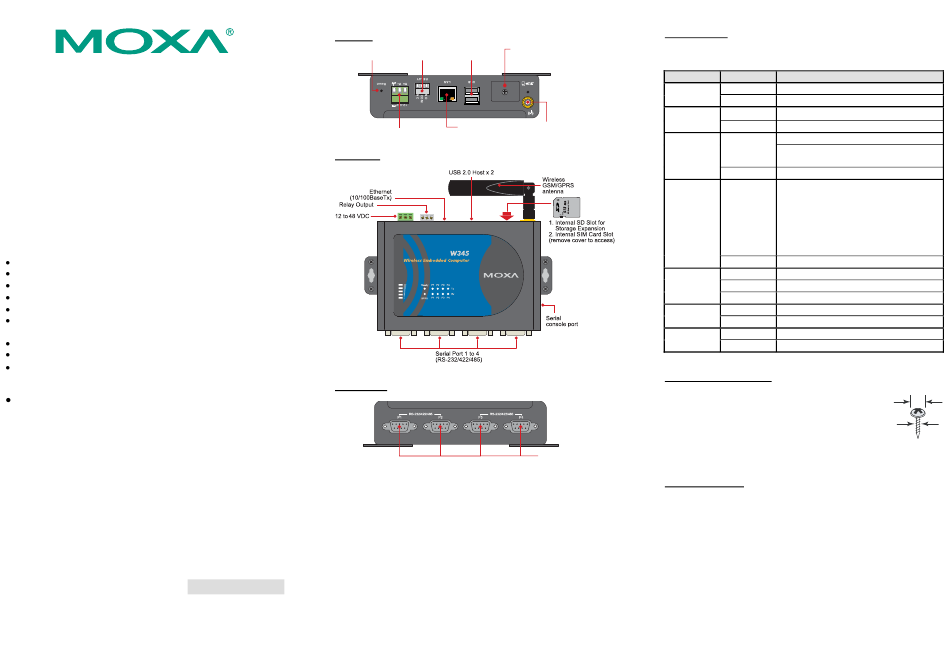

3. W345 Panel Layout
The W345 comes with four RS-232/422/485 serial ports, one RS-232
console port, one 10/100 Mbps LAN port, an embedded GSM/GPRS
module, an SD socket interface for storage expansion, two USB 2.0 host
ports, and one relay output channel. The following figures show the panel
layouts of the W345.
— 1 —
Top View
Reset Button
Front View
Bottom View
P/N: 1802003450012
1. Internal SD Slot for
Relay Output USB 2.0 Host
Storage Expansion
2. Internal SIM Card Slot
(remove cover to access)
Ethernet Wireless GSM/GPRS
12 to 48 VDC 10/100BaseTX antenna connector
Serial Ports x 4
(RS-232/422/485)
— 2 —
LED Indicators
The following table describes the LED indicators located on the front
panel of the W345.
LED Name LED Color LED Function
Green Power is on and functioning normally
Ready
Off Power is off or power error exists
SD card is detected
Green
SD
Off SD card is not detected
ON: GPRS is ready
Green
Blinking: Conflict with GPRS IP, or
GSM/GPRS
DHCP server not responding
Off GPRS is not ready or function error exists
Number of glowing LEDs indicates signal
strength:
5: Excellent
Signal Green 4: Very good
Strength 3: Good
2: Fair
1: Bad
Off No signal, or GPRS connection failed
Orange 10 Mbps Ethernet link
LAN Green 100 Mbps Ethernet link
Off Disconnected or short circuit
TxD Green Serial ports P1-P4 transmitting data
P1-P4
Off Serial ports P1-P4 not transmitting data
RxD Yellow Serial ports P1-P4 receiving data
P1-P4
Off Serial ports P1-P4 not receiving data
4. Installing the W345
Wall or Cabinet Mounting
The W345 comes with two metal attachment plates for
attaching the embedded computers to a wall or the
inside of a cabinet. We suggest using two screws per
ear to attach the W345 to a wall or cabinet. The heads
of the screws should be less than 6.0 mm in diameter,
and the shafts should be less than 3.5 mm in diameter,
as shown by the figure at the right.
DIN-Rail Mounting
DIN-rail attachments can be purchased separately to attach the product to
a DIN-rail. When snapping the attachments to the DIN-rail, make sure
that the stiff metal springs are at the top.
— 3 —
6.0 mm
3.5 mm
