Cooper Lighting Nighthawk III Specification Sheet

D I M E N S I O N S
Slipfitter Mount
18 1/2"
[470mm]
27 1/2"
[699mm]
20 1/2"
[521mm] 150-400W HPS & MH,
1000W HPS 9 1/2" [241mm]
1000W MH 10 1/2" [267mm]
Trunnion Mount
18 1/2"
24"
[470mm]
[610mm]
20 1/2"
[521mm]
150-400W HPS & MH,
1000W HPS 9 1/2" [241mm]
1000W MH 10 1/2" [267mm]
2.7
E PA - E f f e c t i v e P r o j e c t e d A r e a :
O R D E R I N G I N F O R M AT I O N
S A M P L E N U M B E R : H P N K - S 7 6 - 4 0 0 - M T- Q
Lamp Type Series
HP=High NK=Nighthawk III
Pressure
Sodium
MH=Metal
Halide
MP=Pulse
Start MH
(CWA) 1
S T O C K S A M P L E N U M B E R ( L a m p I n c l u d e d )
S A M P L E N U M B E R : M H N K S 1 K
Lamp Type Series
HP=High Pressure Sodium NK=Nighthawk III
MH=Metal Halide
NOTES: Options not available with stock products. Order Accessories as separate items for field installation.
Refer to standard ordering information to add options and accessories.
For Pole Information Refer to Cooper Lighting Pole Section.
Options
9
F1=Single Fuse (120, 277 or 347V)
F2=Double Fuse (208, 240 or 480V)
Q=Quartz Restrike DC Bayonet Base (Hot Strike Only)
EM=Quartz Restrike Cold Start Time Delay Relay
(Not available in 1000W)
PER=NEMA Twistlock Photocontrol Receptacle
T=Removable Quick-Disconnect Power Tray
(Cannot be used with 1000W units)
LL=Lamp Included
10
LAMP TYPE WATTAGE
Metal Halide 150, 175, 250, 400, 1000W
Pulse Start Metal Halide 200, 250, 320, 400, 750W
High Pressure Sodium 150, 250, 400, 750, 1000W
NOTES: 1 200, 250, 320, 350, 400, & 750W. 2 Pulse Start Metal Halide only. 3 HPS & MP only. 4 Products also available in non-US voltages and 50Hz for international
markets. Consult factory for availability and ordering information. 5 Multi-Tap ballast is 120/208/240/277V wired 277V. 6 Triple-Tap ballast is 120/277/347V wired
347V. 7 Multi-tap ballast, 7Hx6V distribution, bronze finish, and lamp are standard for stock product. 8 250W stock product only available with Metal Halide
lamp and slipfitter mount. 9 Add as suffix in the order shown. 10 Lamp is shipped separate from luminaire. Lamp is Cooper designated product based on
luminaire requirements. Specified lamps must be ordered as a separate line item. 11 Order separately, replace XX with color suffix. 12 Specifications and
dimensions subject to change without notice.
COOPER LIGHTING - LUMARK
Yoke Mount
22 1/2"
[572mm]
20 1/2"
[521mm]
150-400W HPS & MH,
1000W HPS 9 1/2" [241mm]
1000W MH 10 1/2" [267mm]
Y O K E - A N D T R U N N I O N - M O U N T D R I L L PAT T E R N
9/16" [14mm] 7/8" [22mm]
dia. hole (2) dia. hole
1 7/8"
[48mm]
3 3/4" [95mm]
Mounting Distribution Lamp Wattage
Type 76=7Hx6V 150=150W
S=Slipfitter 175=175W
T=Trunnion 200=200W
Y=Yoke 250=250W
320=320W
400=400W
750=750W
1000=1000W
Mounting Type Lamp Wattage
7 S=Slipfitter 25=250W
Y=Yoke 40=400W
1K=1000W
Accessories
11
VS/NK=Vandal Shield
VS/NK/1000=Vandal Shield for 1000W Units
WG/NK=Wire Guard (Specify Color)
OA/RA1016=Photoelectric Control, 105-285-Volt NEMA Type
OA/RA1027=Photoelectric Control, 480 Volt NEMA Type
OA/RA1028=Field Installed NEMA Twistlock Photocontrol Receptacle
(Order Photocontrol Separately)
OA/RA1201=Photoelectric Control, 347 Volt NEMA Type
TV/NK=Top or Bottom Visor (Specify Color)
SV1/NK=Single Side Visor (Specify Color)
SV/NK=Double Side Visor (Specify Color)
OA/RA1013=Shorting Cap for NEMA Twistlock Photocontrol Receptacle
TYS-XX=Trunnion or Yoke Slipfitter for 2 3/8", 3", or 3 1/2" O.D. Tenon
D E S C R I P T I O N

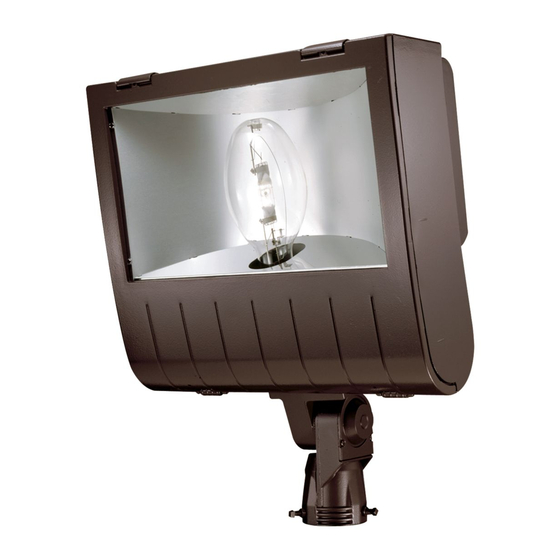

The Lumark Nighthawk III
utilizes a soft-cornered
aerodynamic design to
18 1/2"
provide excellent EPA
[470mm]
ratings and an aesthetically
pleasing appearance. Dark
bronze polyester powder
coat finish assures corrosion
resistance and long-lasting
aesthetics. U.L. listed and
CSA certified for wet
locations.
1"
[25mm]
1 1/2" [38mm]
2" [51mm]
5 3/8"
[137mm]
Voltage 4 Options &
120V Accessories
208V
(See Below)
240V
277V
2 347V
480V
3 MT=Multi-Tap 5
TT=Triple-Tap 6
Accessories
8 TYS-XX=Trunnion or Yoke Slipfitter for
2 3/8", 3", or 3 1/2" O.D. Tenon
NIGHTHAWK III
1 5 0 - 1 0 0 0 W
H i g h P r e s s u r e S o d i u m
P u l s e S t a r t M e t a l H a l i d e
3 1/2"
[89mm]
M e t a l H a l i d e
S L I P F I T T E R - , Y O K E - , O R
T R U N N I O N - M O U N T E D
F L O O D L I G H T
• Aerodynamically
designed die-cast
aluminum housing has
low EPA rating and is
finished in a dark bronze
polyester powder coat
• Flush, draw-action latches
offer easy access to lamp
compartment without
tools and maintain
integrity of seal when
closed
• Die-cast aluminum with
integral cast hinges for
toolless access
• Heat- and impact-resist-
ant tempered glass. Lens
is mounted flush with door
surface to reduce wind
drag and prevent dirt
or moisture from
accumulating
• Door gasket is foam-in-
place silicone, providing
maximum protection of
interior components from
the elements
• Available in three (3)
mounting variations.
Slipfitter: Die-cast
aluminum integral
slipfitter mounts on 2 3/8"
to 3" O.D. tenon. Yoke:
Heavy-duty steel yoke
provides flexibility in
mounting from a variety
of surfaces. Trunnion:
Die-formed steel trunnion
is easily adapted to many
areas and allows easy
fixture aiming.
• Approximate net weight:
59 lbs. (27 kgs.)
COOPER LIGHTING
®
NK
559
