Uplift Desk CPU128-NTS Quick Start Manual

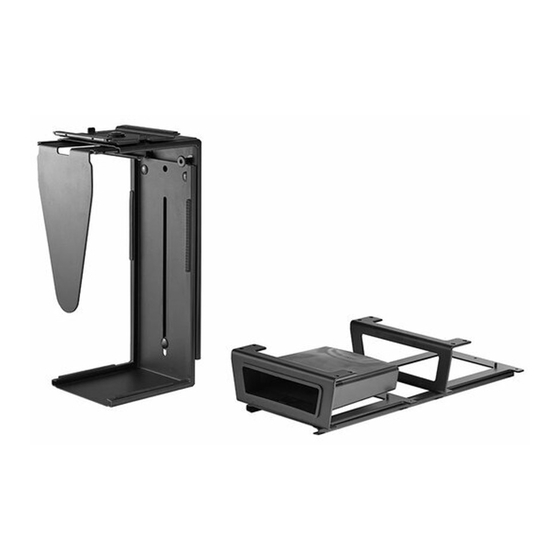

CPU Holder
SKU: CPU128-NTS

Package Contents

16'' Track
If you purchased the optional Track Spacer, please follow those instructions.
© UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com
5/8'' Wood screws Allen wrench
(qty 12)
Back bumper Track guard
*A note before you begin:
UPLIFT CPU Holder

Step 1

Hold the Track under your desk to see where it will fit. Mark the
location of the ten screw holes in the track with a pencil.

Step 2

If you own a drill, you can make this a little easier by drilling
pilot holes where you've made your pencil marks using a 1/8"
diameter bit.
Note: DRILL NO DEEPER THAN 1/2" because that will
increase the risk of drilling through your desktop. We
recommend wrapping a piece of tape around your drill
bit 1/2" from the tip. Stop drilling just before the tape
touches the desktop.

Step 3

Attach the track to the underside of the desk by using eight Wood
screws and a Phillips head screwdriver.
Note: Your desktop must be at least 3/4" thick for the provided
Wood screws.

Step 4

Using one Wood screw, attach the rubber Back bumper to the
rear side of the track.

Step 5

Use the Allen wrench to loosen the three bolts on the side of the
CPU holder. This will loosen the lower half of the vertical clamp,
and allow you to slide it to its full height.
Track Spacer Kit
(optional)
1/2''
