USE AND CARE GUIDE

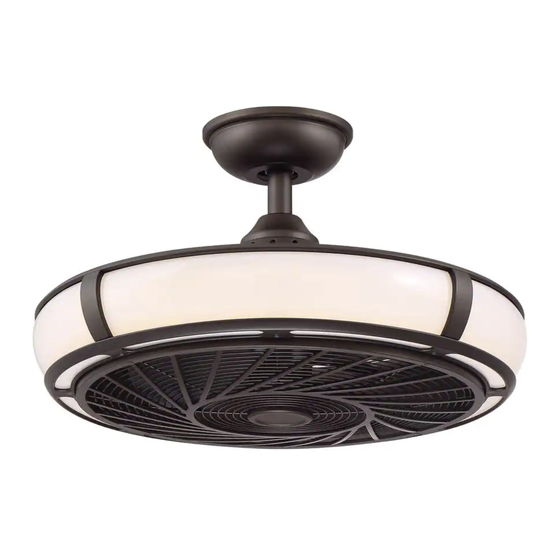

TUILENE 21 INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
HOMEDEPOT.COM/HOMEDECORATORS
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to nd
this fan and click the link of visual instruction in the product overview section.
1-800-986-3460
THANK YOU
Item #1005 462 868
#1005 462 857
#1005 462 841
Model # AK83-EB
# AK83-MBK
# AK83-TM
Advertisement
Table of Contents
Related Manuals for Home Decorators Collection AK83-EB
Summary of Contents for Home Decorators Collection AK83-EB
- Page 1 USE AND CARE GUIDE TUILENE 21 INCH CEILING FAN Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Visual instruction of how to install this fan: Visit www.homedepot.com and enter either the Item or Model number to nd...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............Disassembling Your Fan ..........Safety Information ............Operation ..............Remote Control Operating Instructions ........Warranty ................. Reverse Switch Operating Instructions ........Pre-installation .............. Care and Cleaning ............Specifications ................Troubleshooting ............Tools Required ................. Hardware Included .............. -
Page 3: Safety Information
The fan must be mounted with a minimum of 7 ft (2.1m) clearance from the trailing edge of the blades to the floor. responsible for this declaration: Model Number: AK83-TM, AK83-MBK, AK83-EB Avoid placing objects in the path of the blades. Company Name: TAL INTERNATIONAL CORPORATION Company Address: 2919 E. -
Page 4: Warranty
Warranty The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of five years after the date of purchase by the original purchaser. -
Page 5: Hardware Included
Pre-Installation (continued) HARDWARE INCLUDED HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Part Description Description Quantity Quantity Plastic wire nut Plastic wire nut 1.5V AAA battery Hex wrench HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance. -
Page 6: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS PACKAGE CONTENTS Part Part Description Description Quantity Quantity Part Part Description Description Quantity Quantity Mounting bracket (preassembled) Blade (preassembled) Canopy ring (preassembled) Guard (preassembled) Canopy Decorative frame (preassembled) Hanger ball / downrod assembly Receiver Coupling cover Remote control Fan motor assembly... -
Page 7: Installation
Installation MOUNTING OPTIONS MOUNTING OPTIONS NOTE: You may need a longer downrod to maintain proper WARNING: To reduce the risk of fire, electric shock, or blade clearance when installing on a steep, sloped ceiling. personal injury, mount the fan to an outlet box marked The maximum angle allowable is 18°... -
Page 8: Assembly
Assembly Preparing the canopy Preparing the motor □ □ Remove the cotter pin (FF) and clevis pin (GG), and Remove the canopy ring (B) from the canopy (C). loosen the two collar setscrews (HH) from the motor collar. □ Remove the two non-slotted canopy mounting screws with lock washers (EE) from the canopy (C), and □... -
Page 9: Hanging The Fan
Assembly — Hanging the Fan Hanging the fan to the mounting Installing the mounting bracket bracket to the electrical box WARNING: To reduce the risk of fire, electric shock or WARNING: The tab in the ring must rest in the groove of other personal injury, mount the fan only to an outlet box or the hanger ball / downrod assembly (D). - Page 10 Assembly — Hanging the Fan (continued) Preparing the receiver and remote control NOTE: The frequencies on your receiver and remote control have been preset at the factory. Before installing the receiver, make sure the dip switches on the receiver and remote control are set to the same frequency.
- Page 11 Assembly — Hanging the Fan (continued) Making the electrical connections Ground Ground conductor conductor White Black WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts, except for the ground wire. CAUTION: Do not use with a wall light dimmer switch.
- Page 12 Assembly — Hanging the Fan (continued) Installing the canopy Outlet box WARNING: Make sure the tab on the mounting bracket (A) properly sits in the groove in the hanger ball / downrod assembly (D) before attaching the canopy (C) to the mounting bracket (A) by turning the canopy (C) until it drops into place.
-
Page 13: Disassembling Your Fan
Disassembling Your Fan This fan comes with a pre-assembled guard (H), decorative frame (I) and blade (G) for your easy installation. Check that all screws are tight and securely in place. If you need to disassemble the fan for any reason such as cleaning, follow these steps below: □... -
Page 14: Operation
Operation REMOTE CONTROL OPERATING INSTRUCTIONS REMOTE CONTROL OPERATING INSTRUCTIONS - Press and release the button to turn the fan on or off. - Press and release 1 time - turns the fan on high speed. - Press and release 2 times - turns the fan on medium speed. - Press and release 3 times - turns the fan on low speed. -
Page 15: Reverse Switch Operating Instructions
Operation (continued) REVERSE SWITCH OPERATING INSTRUCTIONS REVERSE SWITCH OPERATING INSTRUCTIONS The reverse switch is located on the top of the motor housing. Slide the switch to the right for warm weather operation. Slide the switch to the left for cool weather operation. Reverse switch NOTE: Wait for the fan to stop before reversing the direction of the blade rotation. -
Page 16: Troubleshooting
Troubleshooting WARNING: Make sure the power is off at the electrical panel box before you attempt any repairs. Refer to step 7 “Making the electrical connections” on page 11. Problem Problem Solution Solution □ Check the main and branch circuit fuses or breakers. □... -
Page 17: Service Parts
Service Parts Part Part Description Description Part Part Description Description Mounting bracket (preassembled) Plastic wire nut Canopy ring (preassembled) Plastic wire nut Canopy 1.5V AAA battery Hanger ball / downrod assembly Hex wrench Coupling cover Fan motor assembly Blade (preassembled) Guard (preassembled) Decorative frame (preassembled) Receiver... - Page 18 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
