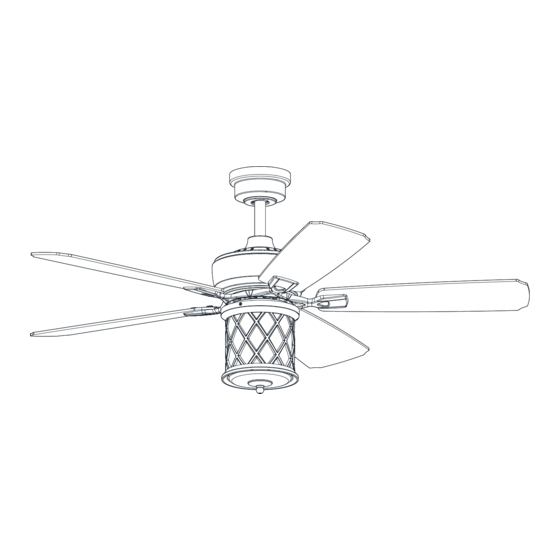

52-inch ceiling fan

Advertisement

Quick Links

We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
USE AND CARE GUIDE
PINE MEADOWS 52-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link in the
"Product Overview" section.
improvement needs. Thank you for choosing Home Decorators Collection!
THANK YOU
Item #1005 819 951
Model #52117
UL Model #52-ALLE

Advertisement

loading
Need help?

Need help?

Do you have a question about the PINE MEADOWS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Home Decorators Collection PINE MEADOWS

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents ..............2 Assembly ................7 Safety Information ............... 2 Operation ................15 Warranty ................3 Care and Cleaning ............. 16 Pre-Installation ..............3 Troubleshooting ..............16 Installation ................6 Safety Information WARNING: To reduce the risk of personal injury, READ AND SAVE THESE INSTRUCTIONS.
  • Page 3: Warranty

    Warranty The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a lifetime after the date of purchase by the original purchaser. The supplier warrants that the light kit, excluding any glass, to be free from defects in workmanship and material at the time of shipment from the factory for a period of five years after the date of purchase by the original purchaser.
  • Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Plastic wire connector Extra blade arm screw Hanger pin Locking pin...
  • Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Slide-on mounting bracket Light kit fitter assembly (inside canopy) Glass shade Ball/downrod assembly Decorative cage Canopy LED bulb Decorative motor collar cover Receiver Fan-motor assembly Remote control (battery included) Blade arm Extension lead wire Blade Battery...
  • Page 6: Installation

    Installation MOUNTING OPTIONS WARNING: To reduce the risk of fire, electric shock, NOTE: You may need a longer downrod to maintain proper or personal injury, mount the fan to an outlet box blade clearance when installing on a steep, sloped ceiling. marked “Acceptable for fan support of 35 lbs (15.9 The maximum angle allowable is 20°...
  • Page 7: Assembly

    Assembly - Standard Ceiling Mount Preparing for standard mounting Routing the wires □ Route the wires exiting the top of the fan motor assembly NOTE: The magnet is pre-attached on the canopy bottom (E) through the decorative motor collar cover (D) and then cover (II) for you to remove and install easily.
  • Page 8 Assembly - Hanging the Fan Attaching the fan to the electrical Hanging the fan □ Carefully lift the fan-motor assembly (E) up to the slide-on WARNING: To reduce the risk of fire, electric shock, or other mounting bracket (A). personal injury, mount the fan to an outlet box or supporting □...
  • Page 9 Assembly - Hanging the Fan (continued) Setting the code on the remote control and receiver NOTE: The frequencies on your receiver and hand unit have been preset at the factory. Before installing the receiver, make sure the dip switches on the receiver and hand unit are set to the same frequency.
  • Page 10 Assembly - Hanging the Fan (continued) Wiring the receiver to the household Wiring the fan to the receiver wiring WARNING: To avoid possible electrical shock, turn the NOTE: The fan comes with 12 in. lead wires for use with the electricity off at the main fuse box before wiring.
  • Page 11 Assembly - Hanging the Fan (continued) Mounting the fan-motor assembly (standard mount) WARNING: When using the standard ball/downrod mounting, the tab in the ring at the bottom of the mounting bracket must rest in the groove of the hanger ball. Failure to properly seat the tab in the groove could cause damage to the wiring.
  • Page 12 Assembly - Attaching the Blades (continued) Attaching the blades to the motor assembly □ Mount the fan blades (G) to the blade arms (F) by aligning the three key-slot holes in the blade (G) with the three posts (RR) on the top of the blade arms (F). □...
  • Page 13 Assembly - Attaching the Light (continued) Attaching the light kit fitter assembly CAUTION: To reduce the risk of electric shock, disconnect the electrical supply circuit to the fan before installing the light fixture. □ Remove one screw (LL) from the light kit pan (H), and loosen, but do not remove the other two screws.
  • Page 14 Assembly - Attaching the Light (continued) Installing the decorative cage □ Remove three screws (NN) from the light kit pan (H) . □ Push up the decorative cage (K) to the light kit pan (H) and align the round hole of the light kit pan (H) with the hole in the decorative cage (K).
  • Page 15: Operation

    Operating Your Fan and Remote Control Remote Control - Your fan is equipped with a remote control to operate the speed and lights of your new ceiling fan. A. Warm weather Speed setting for warm or cool weather depends on factors such as the room size, ceiling height, number of fans and so on.
  • Page 16: Care And Cleaning

    Care and Cleaning WARNING: Make sure the power is off before cleaning your fan. □ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling. □...
  • Page 17 Questions, problems, missing parts? Before returning to the store, call Home Depot Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday. 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.

This manual is also suitable for:
