We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan.
We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Home Decorators Collection!
USE AND CARE GUIDE

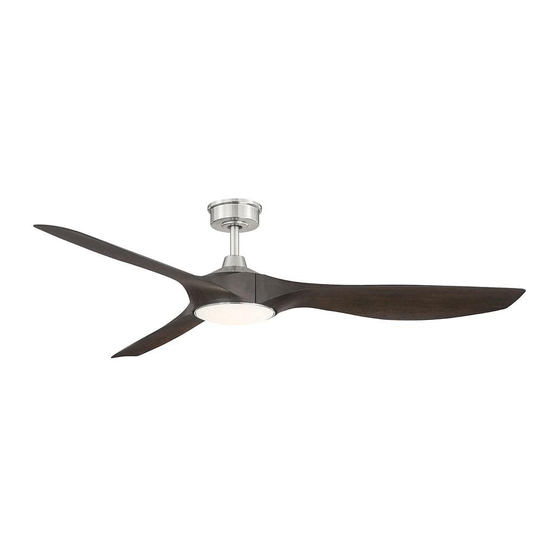

MARLON 66 IN. CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to find
this fan and click the link of visual instruction in the product overview section.
THANK YOU
Item #1005 711 223
1005 711 225
Model # YG825-BN
YG825-NI
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection MARLON
Summary of Contents for Home Decorators Collection MARLON
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............Operation ..............Preparing the Transmitter ............Safety Information ............Learning Process ..............Operating Your Fan and Remote Control ....... Warranty ................. Warm/Cool Weather Operating Instructions ......Pre-installation .............. Care and Cleaning ............Specifications ................Tools Required ................. -
Page 3: Safety Information
Safety Information To reduce the risk of electric shock, ensure electricity has However, there is no guarantee that interference will not occur been turned off at the circuit breaker or fuse box before in a particular installation. If this equipment does cause harmful beginning. -
Page 4: Warranty
Warranty The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of five years after the date of purchase by the original purchaser. -
Page 5: Hardware Included
Pre-Installation (continued) HARDWARE INCLUDED HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Part Description Description Quantity Quantity Plastic wire nut Blade screw with lock washer 1.5V AAA battery 2-Pin Extension cord 3-Pin Extension cord HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance. -
Page 6: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS PACKAGE CONTENTS Part Part Description Description Quantity Quantity Part Part Description Description Quantity Quantity Mounting bracket (preassembled) Blade support plate Canopy ring (preassembled) Light kit mounting plate Canopy 25 watt LED Light kit Hanger ball/downrod assembly Glass shade Coupling cover Receiver... -
Page 7: Installation
Installation MOUNTING OPTIONS MOUNTING OPTIONS NOTE: You may need a longer downrod to maintain proper WARNING: To reduce the risk of fire, electric shock, or blade clearance when installing on a steep, sloped ceiling. personal injury, mount the fan to an outlet box marked The maximum angle allowable is 18°... -
Page 8: Assembly
Assembly Preparing the canopy Preparing the motor □ □ Remove the cotter pin (GG) and clevis pin (HH), and Remove the canopy ring (B) from the canopy (C). loosen the two collar setscrews (II) from the motor □ Remove the two non-slotted canopy mounting screws collar. -
Page 9: Hanging The Fan
Assembly — Hanging the Fan Hanging the fan to the mounting Installing the mounting bracket bracket to the electrical box WARNING: To reduce the risk of fire, electric shock or WARNING: The tab in the ring must rest in the groove of other personal injury, mount the fan only to an outlet box or the hanger ball/downrod assembly (D). - Page 10 Assembly — Hanging the Fan (continued) Making the electrical connections Ground WARNING: Check to see that all connections are tight, conductor Black White including ground, and that no bare wire is visible at the wire nuts, except for the ground wire. CAUTION: To reduce the risk of electric shock, this fan must be installed with an isolating wall control/switch.
- Page 11 Assembly — Hanging the Fan (continued) Installing the canopy Outlet box WARNING: Make sure the tab on the mounting bracket (A) properly sits in the groove in the hanger ball/downrod assembly (D) before attaching the canopy (C) to the mounting bracket (A) by turning the canopy (C) until it drops into place.
-
Page 12: Attaching The Fan Blades
Assembly — Attaching the Fan Blades Attaching the fan blades WARNING: To reduce the risk of personal injury, do not insert foreign objects between rotating fan blades (G). □ Align the holes from the blade (G) to the holes from the motor (F), and secure the blade in place with blade support plate (H) and screws with lock washer (BB) provided. -
Page 13: Installing The Light Kit
Assembly — Installing the Light Kit Attaching the light kit mounting Attaching the LED light kit plate to the mounting ring and glass shade □ Remove one of the three light kit mounting plate CAUTION: Before starting installation, disconnect the screws (PP) from the mounting ring (QQ) and loosen power by turning off the circuit breaker or removing the fuse the other two screws. -
Page 14: Operation
Operation PREPARING THE TRANSMITTER NOTE: Batteries will weaken with age and should be replaced before leaking takes place as this will damage the remote control. Dispose of used batteries properly and keep them out of the reach of children. □ Remove the battery cover by pressing firmly on the arrow and sliding the cover off. - Page 15 Operation (continued) To clear all other remotes from your fan’s memory, use the steps below: □ Ensure AC power to the fan is OFF to begin the learning process. □ Slide the dip switch in the battery compartment to the "0" position.
-
Page 16: Operating Your Fan And Remote Control
Operation (continued) OPERATING YOUR FAN AND REMOTE CONTROL NOTE: The fan will store the last used speed setting for the next time it is turned on. NOTE: You must turn the fan on prior to using the speed or time functions. NOTE: On each start up of your ceiling fan, the fan blades will oscillate back and forth. - Page 17 Operation (continued) Timer □ Pressing the timer buttons will automatically turn fan and light (if light is on) off after 2, 4, or 8 hours. When you activate the timer mode, the LED to the left of the time above the clock will illuminate. Disables timer 5.
-
Page 18: Warm/Cool Weather Operating Instructions
Operation (continued) WARM/COOL WEATHER OPERATING INSTRUCTIONS Speed settings for warm or cool weather depend on factors such as the room size, ceiling height, numbers of fans. NOTE: The fan reverse buttons must be pressed while the fan is running. Warm weather - (Counterclockwise Direction) A downward air flow creates a cooling effect. -
Page 19: Troubleshooting
Troubleshooting WARNING: Make sure the power is off at the electrical panel box before you attempt any repairs. Refer to the section “Making the Electrical Connections” on page 10. Problem Problem Solution Solution □ Check the main and branch circuit fuses or breakers. □... - Page 20 Troubleshooting (continued) Problem Problem Solution Solution □ This is normal start-up procedure for DC motor fans. The partial movement during start-up is the result Fan moves backwards and of the DC motor aligning the internal magnetic poles for proper motor operation. This design saves forwards when turned on.
-
Page 21: Service Parts
Service Parts Part Part Description Description Part Part Description Description Mounting bracket (preassembled) Plastic wire nut Canopy ring (preassembled) Blade screw with lock washer Canopy 1.5V AAA battery Hanger ball/downrod assembly 2-Pin Extension cord Coupling cover 3-Pin Extension cord Fan motor assembly Blade Blade support plate Light kit mounting plate... - Page 22 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
