USER MANUAL
MODEL
SYSTEM
INVERTER
Q.VOLT-G2 HYB-4.6kW.1.1
BATTERY
NOTICE
•
Do not operate with other components not approved by the ESS systems.
(Connecting other products in parallel to Q.HOME
•
The internet connection is required to use all functions of the ESS system.
•
If you have a problem, please contact the installer.
•
The Specifications of the product may be modified without prior notice to improve product quality.
GERMANY
Q.HOME
+
ESS HYB-G2
Q.SAVE-G2 4kWh B1.1.1
Q.SAVE-G2 6.3kWh B1.1.1
+
ESS HYB-G2 may result in abnormal operation.)
AUSTRALIA
Q.VOLT-G2 HYB-5kW.1.1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Q CELLS Q.HOME+ ESS HYB-G2
Summary of Contents for Q CELLS Q.HOME+ ESS HYB-G2

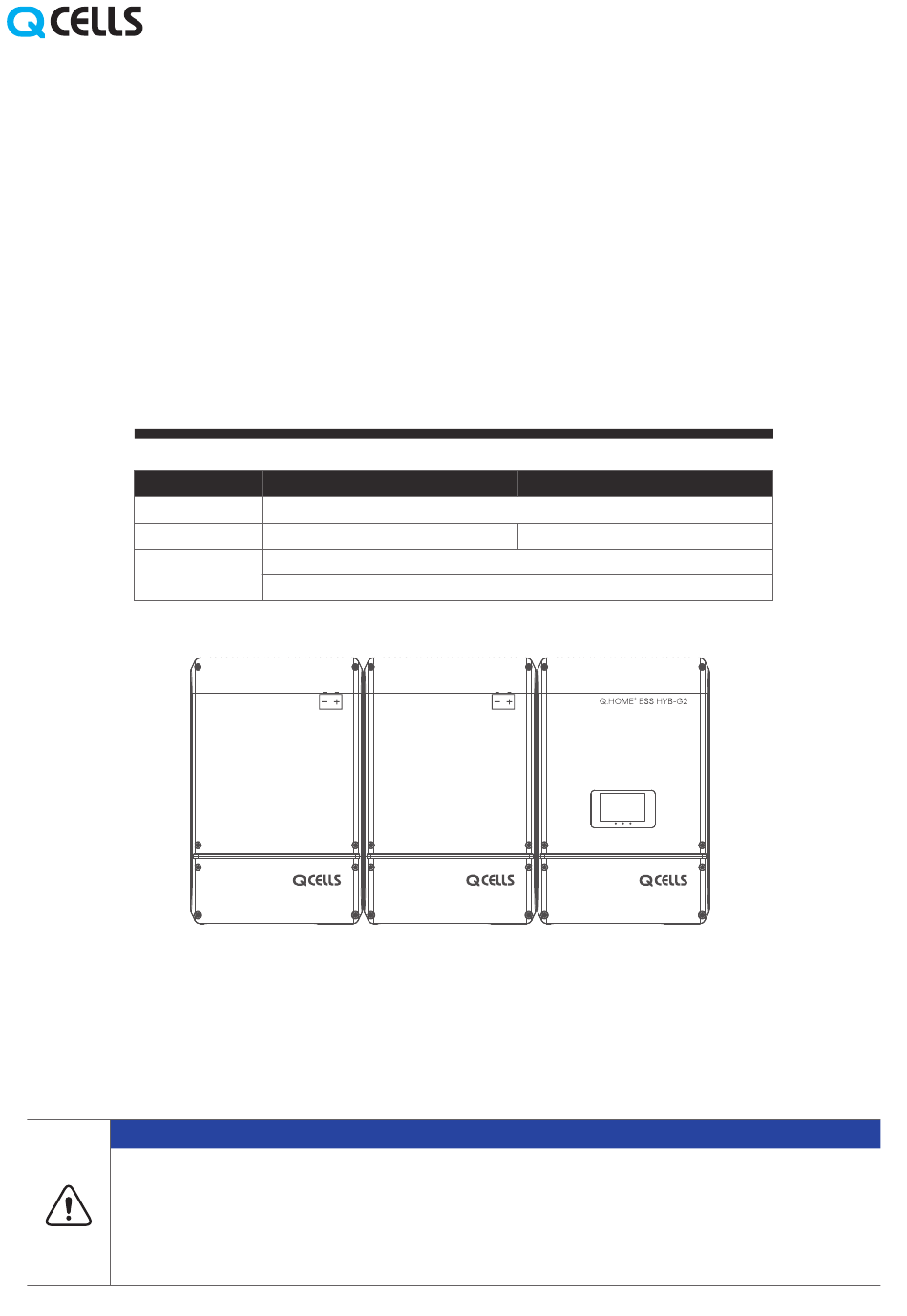

- Page 1 USER MANUAL MODEL GERMANY AUSTRALIA SYSTEM Q.HOME ESS HYB-G2 INVERTER Q.VOLT-G2 HYB-4.6kW.1.1 Q.VOLT-G2 HYB-5kW.1.1 Q.SAVE-G2 4kWh B1.1.1 BATTERY Q.SAVE-G2 6.3kWh B1.1.1 NOTICE • Do not operate with other components not approved by the ESS systems. (Connecting other products in parallel to Q.HOME ESS HYB-G2 may result in abnormal operation.) •...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Table of Contents - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Table of Tables - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Table of Figures... - Page 4 5. Maintenance for Problem Solving - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Cleaning the Cover - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6.
-
Page 5: Table Of Tables
TABLE OF TABLES [ Table 1-1 : Symbol Description 1 ] - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - [ Table 1-2 : Symbol Description 2 ] - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - [ Table 1-3 : Symbol Description (Battery) ]... - Page 6 TABLE OF FIGURES [ Figure 2-1 : Derating Curve ] - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - [ Figure 2-2 : Battery Charge Limit ] - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - [ Figure 2-3 : Battery Discharge Limit ]...
- Page 7 This page is intentionally left blank.
-
Page 8: Information In This Manual
1. Information in this Manual 1.1 About this Manual This is the user’s manual for the Q.HOME ESS HYB-G2. This user manual is specially designed to detail the device’s functions and features. Please read this manual before using the device to ensure safe and proper use. -
Page 9: [ Table 1-1 : Symbol Description 1 ]
Symbols Description Beware dangerous voltage. The ESS operates at high voltage. All works related to the ESS can only be performed by an electrical technician. Beware of hot surface. The INVERTER can become hot during operation. Avoid contact during operation. Follow the guidelines in all relevant documents enclosed along with the INVERTER. -
Page 10: [ Table 1-2 : Symbol Description 2 ]
Symbols Description Symbols Description Out position of a bi-stable Input terminal or rating push control Output terminal or rating Bidirectional terminal rating Caution : Risk of Electric Shock and Energy Storage Timed Discharge Caution : Risk of Hearing Damage and Wear Hearing Protection Wear hearing protection [ Table 1-2 : Symbol Description 2 ] Symbols... -
Page 11: Safety
Q CELLS will nullify the product’s guarantee. For example, Q CELLS Li-Ion Battery energy storage should not be replaced by other manufacturer’s Battery storages. For further information on proper use of this device, contact the Q CELLS Service-Hotline. -
Page 12: Technical Specifications
2.1.1 Technical Specifications Germany PV Data (DC) Max. input total power 6.6 kWp Max. input power per string 3.3 kWp Max. input voltage 550 V Min. input voltage / Initial input voltage 125 V / 150 V per string MPPT voltage range 125 V - 500 V Max. -
Page 13: [ Table 2-1 : Technical Specifications (Germany) ]
Grid Input Rated / Maximum input apparent power 3000 / 4000 VA Rated / Maximum input active power 3000 / 4600 W Rated input voltage 230 Va.c. Rated / Maximum continuous input current 13/25 Aa.c. Rated input frequency 50 Hz Max. - Page 14 Australia & New Zealand PV Data (DC) Max. input total power 6.6 kWp Max. input power per string 3.3 kWp Max. input voltage 550 V Min. input voltage / Initial input voltage 125 V / 150 V per string MPPT voltage range 125 V - 500 V Max.
-
Page 15: [ Table 2-2 : Technical Specifications (Australia & New Zealand) ]
Grid Input Rated / Maximum input apparent power 3000 / 4000 VA Rated / Maximum input active power 3000 / 4600 W Rated input voltage 230 Va.c. Rated / Maximum continuous input current 13/25 Aa.c. Rated input frequency 50 Hz Max. -
Page 16: [ Table 2-3 : Maximum Charge Current Limit ]
Australia & New Zealand Germany Ambient temperature (°C) [ Figure 2-1 : Derating Curve ] Item Cell body / module temperature Specification T < 0 °C 0 °C ≤ T < 10 °C 3.5 A Q.SAVE 10 °C ≤ T < 25 °C 25 °C ≤... -
Page 17: [ Table 2-4 : Maximum Discharge Current Limit ]
Item Cell body / module temperature Specification T < -20 °C -20 °C ≤ T < -10 °C Q.SAVE-G2 -10 °C ≤ T < 0 °C 10.5 A 4kWh 0 °C ≤ T < 40 °C 19.6 A 40 °C ≤ T < 50 °C 10.5 A Maximum 50 °C ≤... -
Page 18: Safety Guidelines
2.2 Safety Guidelines DANGER High voltages in power conditioning circuits. Lethal hazard of electric shock or serious burns. The following work on the ESS must be carried out by qualified personnel only. • Electrical insulation • Repairs • Modification Except when under supervision by qualified personnel, children or people lacking physical, mental, or intellectual capabilities should not work on this system. -
Page 19: Symbol Indication
ESS HYB-G2 is damaged, do not touch it. Please immediately contact your installer or Q CELLS for arrange for a repair. 2. Please contact your installer or Q CELLS if a significant event message is shown on the LCD screen or if the Q.HOME ESS HYB-G2 reports an event. -
Page 20: Operating Modes
3. Operating Modes This system is composed of six modes : PV Auto, PV Only, Battery discharge, Standby, Maintenance (forced charge), and Stand-Alone (Back-up). The event check status should not be considered as any specific mode. 3.1 Standby Mode This is the standby mode before converting to operation mode (PV Auto, PV Only, Battery discharge mode). -
Page 21: Strong
3.3.2 Strong Solar energy generation and Battery charging are available. The solar-generated power is charged to the Battery based on the EMS decision. • Use smart meter. The energy supply priority is : load (sub+main) > battery > grid • Not use smart meter. The energy supply priority is : sub_load > battery > grid Battery Grid Output Power... -
Page 22: Pv-Only Mode
3.4 PV-Only Mode This mode enables the solar energy to be generated. However, the Battery charge-discharge does not operate. A maximum of power or less of solar energy generation power can be sent to Grid based on the EMS decision. •... -
Page 23: Stand-Alone (Back Up) Mode
3.6 Stand-Alone (Back-up) Mode When Q.HOME ESS HYB-G2 is disconnected from the grid, Q.HOME ESS HYB-G2 enters into the Stand-Alone (Back-up) Mode. • Use smart meter. The energy supply priority is : sub_load > battery • Not use smart meter. The energy supply priority is : sub_load > battery Battery Grid Output Power... -
Page 24: Communication
4. Communication 4.1 Overview When the Internet connection is properly completed, you can monitor the system operation status on the computer. 4.2 Homepage Any customer who has purchased this device can use a web browser (https://www.qhomestory.com) or a smart phone to check its current operation status and receive various statistical information on operation in the house or remotely. -
Page 25: Password Initialization
4.2.5 Password Initialization A customer who forgets the password during use can initialize the password by using the password initialization menu on the homepage. On the log-in page, select the “Forgot your id or password?” menu, and when the customer confirms the ID and the e-mail address created during membership registration, the initialized password is sent to the registered e-mail address. -
Page 26: [ Figure 4-4 : Backup Mode Monitoring Page ]
The [Figure 4-4] shows the backup mode screen. This mode can be specified by the user. Since the grid does not consume power separately in the backup mode, it shows only the ESS. In the figure below, warning on ESS is an error that power does not come on the Grid. [ Figure 4-4 : Backup Mode Monitoring Page ] 4.2.6.2 Consumption Report The household power consumption information collected during energy meter linkage... -
Page 27: Mobile Service
4.2.6.4 Notices You can check the notice message whenever there is an update or any other change in the service. 4.2.6.5 Software Versions You can check the software version of the product on the monitoring page. Software Version [ Figure 4-6 : Setting Page ] 4.2.7 Mobile Service Customers who use Android or I-Phone can use a smart phone to easily check the product status anytime, anywhere. -
Page 28: Maintenance For Problem Solving
5. Maintenance for Problem Solving CAUTION Do not disassemble the parts in operation for cleaning purposes. High voltage can cause lethal damage to the human body. 1. Please make sure that the AC and DC switch relay in the distribution box is disconnected. -
Page 29: Message Description
6. Message Description 6.1 LED Indications As shown in the [Figure 6-1], the LED of Q.HOME ESS HYB-G2 is located at bottom of LCD. The color of LED depend on current status of INVERTER and LED display information can be checked in [Table 6-1]. -
Page 30: Starting The System
6.2 Starting the System After completing the installation, turn on the AC circuit breaker installed in the distribution box and then turn on the DC disconnect switch on the product. Check the system check message on the front LCD screen. 6.2.1 Loading Screen &... -
Page 31: Home Screen Configuration Information
6.3 Home Screen Configuration Information ② ③ ④ ① Hybrid ESS 02 : 52 PM LOAD ⑧ ⑨ 5.06kw 1.47kw BATTERY GRID ⑬ ⑪ ⑩ 1.60kw 1.98kw Normal ⑫ ⑥ ⑤ ⑦ [ Figure 6-4 : Standby State Indication Screen before the EMS Command ] Screen Information Description ①... -
Page 32: Home Menu Structure
6.4 Home Menu Structure If you touch next or previous button, the screen is displayed as shown in the [Figure 6-4]. The description of each screen refer to Chapter 6.7. [ Figure 6-5 : Home Menu Structure ] Message Description... -
Page 33: Status Description
6.5 Status Description Mode Display Description The electrical power is generated Generation by PV. Battery The Battery is charging. Charge Battery The Battery is discharging. Discharge Supply the electrical power of Grid Input Grid to INVERTER. The power generated from the Grid Output PV is fed into the Grid. -
Page 34: Operation Sequence
6.6 Operation Sequence Battery Grid Load Auto W/S Mode PV Output Grid Charge Battery Discharge Stand Alone O : It enters when there is a battery fault. X : Don’t care. One of the PV and the battery is in a steady state. [ Table 6-4 : ELA Mode ] ELA Mode Auto w/s... -
Page 35: Information Display
6.7 Information Display 6.7.1 PV Information Display [ Figure 6-6 : PV Information Display ] Display Description PV1 Voltage Display current PV1 voltage PV1 Current Display current PV1 current PV1 Power Display current PV1 power PV2 Voltage Display current PV2 voltage PV2 Current Display current PV2 current PV2 Power... -
Page 36: Grid Information Display
6.7.2 Grid Information Display [ Figure 6-7 : Grid Information Display] Display Description Voltage Display Grid voltage Frequency Display Grid frequency Current Display Grid current Power Display Grid active power Power Factor Display Grid power factor Today Feed-in Power Display today’s power received from the Grid Today Feed-out Power Display today’s electricity sent to the Grid Total Feed-in Power... -
Page 37: Load Information Display
6.7.3 Load Information Display [ Figure 6-8 : Load Information Display ] Display Description Voltage Display Load voltage Current Display Load current Frequency Display Load frequency Power Display Load active power Today Power Display today’s Load power Total in Power Display the amount of power used in today's Load Graph Display Load power graph (Daily/Weekly/Monthly/Yearly) -
Page 38: Battery Information Display
.7.4 Battery Information Display [ Figure 6-9 : Battery Information Display ] Display Description Voltage Display Battery voltage Current Display Battery current Power Display Battery charging / discharging power State of charge State of health Today Charge Power Display today's Battery charge power Today Discharge Power Display Battery power factor Total Power Charge... -
Page 39: System Information Display
6.7.5 System Information Display [ Figure 6-10 : System Information Display ] Display Description Product Model Name of this product Product Country Country using this product IP Address IP Address Software Version Software version of this product PMS Version Software version of PMS PCS Master Version Software version of PCS master PCS Slave Version... -
Page 40: Error Information Display
6.7.6 Error Information Display [ Figure 6-11 : Error Information Display ] Display Description Date The date the fault occurred. Time The time the fault occurred.ed. Error Type of fault (See Chapter 7.7) If there are more than 10 errors, the first error is cleared. [ Table 6-10 : Error Information Display Description ] Message Description... -
Page 41: General Events
6.8 General Events The general events contain warnings and protection. The warning level events does not stop the generating process. A displayed warning message automatically disappears as soon as the issue is resolved. When protection level events occur, the product stop the generating process. The process may automatically resume as long as the issue is resolved. - Page 42 WEB Display HMI Display Description Measures D06P BDC1 DOCP P BDC1 Discharge Over The product stops the generating process Current Peak Protection because a significant protection event has occurred. Wait until the event message disappears. After the event message is removed, it automatically returns to normal.
- Page 43 WEB Display HMI Display Description Measures D23P BDC OVP P BDC Over Voltage The product stops the generating process Peak Protection because a significant protection event has occurred. Wait until the event message disappears. After the event message is removed, it automatically returns to normal. If it is not removed until the time limit is reached, it is converted to a significant event.
- Page 44 WEB Display HMI Display Description Measures G04P INV OC P INV RMS Over Current The product stops the generating process Protection because a significant protection event has occurred. Wait until the event message disappears. After the event message is removed, it automatically returns to normal. If it is not removed until the time limit is reached, it is converted to a significant event.
- Page 45 WEB Display HMI Display Description Measures G14P GRID OVP P Grid Over Voltage The product stops the generating process Peak Protection because a significant protection event has occurred. Wait until the event message disappears. After the event message is removed, it automatically returns to normal. If it is not removed until the time limit is reached, it is converted to a significant event.
- Page 46 WEB Display HMI Display Description Measures G25P ANTI Anti-Islanding If the electric power system blacks out, ISLANDING P Protection it automatically detects the state and turns off the Q.HOME ESS HYB-G2. (shifting the frequency of the inverter away from nominal conditions in the absence of a reference frequency.
- Page 47 WEB Display HMI Display Description Measures L05P Load OVP P Load Over Voltage The product stops the generating process Peak Protection because a significant protection event has occurred. Wait until the event message disappears. After the event message is removed, it automatically returns to normal. If it is not removed until the time limit is reached, it is converted to a significant event.
- Page 48 WEB Display HMI Display Description Measures S06P PV1 OC P PV1 RMS Over The product stops the generating process Current Protection because a significant protection event has occurred. Wait until the event message disappears. After the event message is removed, it automatically returns to normal. If it is not removed until the time limit is reached, it is converted to a significant event.
- Page 49 WEB Display HMI Display Description Measures S17P PV2 OCP P PV2 Over Current The product stops the generating process Peak Protection because a significant protection event has occurred. Wait until the event message disappears. After the event message is removed, it automatically returns to normal. If it is not removed until the time limit is reached, it is converted to a significant event.
-
Page 50: [ Table 6-11 : Inverter General Events Warning List ]
WEB Display HMI Display Description Measures S33P DCLINK OV P DCLINK RMS Over The product stops the generating process Voltage Protection because a significant protection event has occurred. Wait until the event message disappears. After the event message is removed, it automatically returns to normal. If it is not removed until the time limit is reached, it is converted to a significant event. -
Page 51: Battery General Events (Protection)
6.8.2 Battery General Events (Protection) Type : PROTECTION WEB Display HMI Display Description Measures B01P BAT1 CHG BAT1 Charge Over The product stops the generating process OC P Current Protection because a significant protection event has occurred. Wait until the event message disappears. - Page 52 WEB Display HMI Display Description Measures B07P BAT1 COM P BAT1 Communication Power reset of the system is required. Protection If the symptom persists after reset, replace the cable connecting the Battery pack and the INVERTER. After replacement, repair of BMS or PCS Control Board is necessary. B08P BAT1 ADD P BAT1 Additional...
- Page 53 WEB Display HMI Display Description Measures B16P BAT2 CEL BAT2 Cell Over When the maximum cell temperature is OT P Temp Protection above protection level, thus terminating the system. Automatically returns to normal when the maximum cell temperature goes below the limit value.
- Page 54 WEB Display HMI Display Description Measures B26P BAT3 CEL BAT3 Cell Over When the maximum cell temperature is OT P Temp Protection above protection level, thus terminating the system. Automatically returns to normal when the maximum cell temperature goes below the limit value.
- Page 55 WEB Display HMI Display Description Measures B36P BAT4 CEL BAT4 Cell Over When the maximum cell temperature is above OT P Temp Protection protection level, thus terminating the system. Automatically returns to normal when the maximum cell temperature goes below the limit value.
-
Page 56: [ Table 6-12 : Battery Operation General Events List ]
WEB Display HMI Display Description Measures B46P BAT5 CEL BAT5 Cell Over Temp When the maximum cell temperature is OT P Protection above protection level, thus terminating the system. Automatically returns to normal when the maximum cell temperature goes below the limit value. -
Page 57: System General Events (Protection)
HMI Display Description Measures P01P Unknown Unregistered Failure It is an unregistered fault. Turn off and restart the system. Please contact the Q CELLS Service –Hotline, if an error occurs continuously. P03P DSP-EMG DSP-Emergency Please check emergency switch. TRIP P... -
Page 58: Arrangement Of Terms
7. Arrangement of Terms Chapter 1 Q.HOME Residential Energy Storage Chapter 2 Li-Ion Battery Li-Ion Battery Photo Voltaic Distribution Box A box containing AC, DC ON-OFF switches for electricity distribution Alternating Current Direct Current Liquid Crystal Display INVERTER An electric circuit that converts DC to AC and vice versa Converter An electric circuit that converts DC to DC PV String... -
Page 59: Contact
8. Contact ■ Hanwha Q CELLS Corporation : Q CELLS, 86 Cheonggyecheon-ro, Jung-gu, Seoul Korea 04541 (+82(0)2-729-3163) Q.HOME ESS Service for Europe, Germany ■ : E-Service Haberkorn GmbH, Augustenhöhe 7, 06493 Harzgerode, Germany (Technical Support, +49(0)39484-9763-85, q.home@e-service48.com) Hanwha Q CELLS Australia Pty Ltd ■... - Page 60 Manufacturer & Warranty Provider: Hanwha Solutions Corporation 86 Cheonggyecheon-ro, Jung-gu, Seoul Korea 04541...
