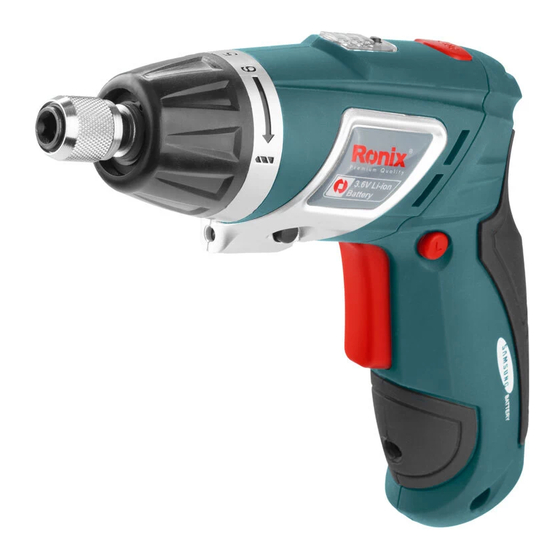

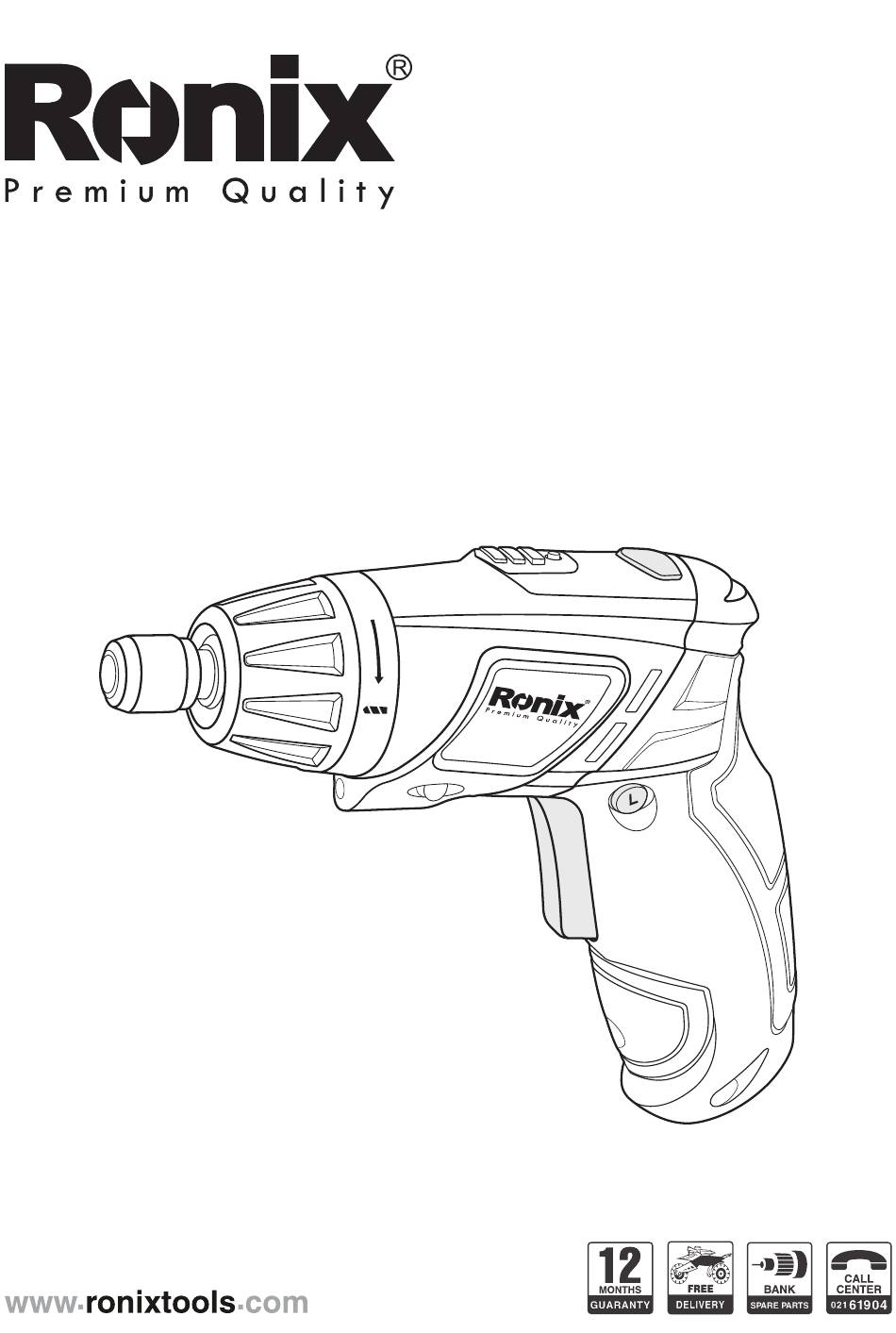

- Page 1 CORDLESS SCREWDRIVER 8536...
-
Page 2: Product Specifications
PRODUCT SPECIFICATIONS Model 8536 Voltage 3.6V Battery Capacity 1300mAh Li-ion No Load Speed 2000rpm Max. Torque 3N.m Torque Setting Charging Time 3H to 5H Net. Weight 0.6Kg PARTS LIST Battery Capacity Locking Button Indicator Locking Sleeve Lamp Clockwise/Counter Bit Chuck... -
Page 3: Safety Information
Caution- Read the operating instructions to reduce the risk of inquiry” Wear ear-muffs. The impact of noise can cause damage to hearing. WEAR SAFETY GOGGLES Sparks generated during working or splinters, chips and dust emitted by thedevice can cause loss of sight. Warning! This item is suitable for working situation with above zero degree temperature. - Page 4 transport damage. If possible, please keep the packaging end of the guarantee period. IMPOTRTAT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts there is a danger of swallowing or suffocating! Cordless screwdriver Battery cl PROPER USE The cordless screwdriver is designed for tightening and undoing screws.
-
Page 5: Residual Risks
exceptional circumstances. The specified vibration value can be used to compare the equipment with other electric power tools. The specified vibration value can be used for initial assessment of a harmful effect. Keep the noise emissions and vibrations to a minimum. Only use appliances which are in perfect working Order. -
Page 6: Changeover Switch
protective circuit automatically switches off the equipment when the battery is flat. In this case the bit chuck will cease to turn. WARNING! Do not press the ON/OFF switch any more if the protective circuit has actuated. This may damage the battery. 1) Check that your mains voltage is the same as that marked on the rating plate of the battery charger. -
Page 7: On/Off Switch
when the equipment is at a standstill. If you fail to observe this point, the gearing may become damaged. When the slide switch is in the middle position, the ON/OFF switch is blocked. Locking Button Clockwise/Counter ON/OFF Switch ON/OFF SWITCH Press the On/Off switch to switch the cordless screwdriver on. -
Page 8: Angle Setting
ANGLE SETTING The screwdriver can be locked into 2 different angle settings. To do so, press the locking button and move the screwdriver into the desired position. Then release the locking button. Important. Before you switch on the screwdriver, make sure that it is correctly locked in the angle position in question. -
Page 9: Maintenance
SCREWDRIVING We recommend using self-centering screws (e.g. Torx screws, recessed head screws) designed for reliable working. Be sure to use a bit that matches the screw in shape and size. Set the torque, as described elsewhere in these operating instructions, to suit the size of screw. Cleaning, maintenance and ordering of spare parts Always pull out the mains power plug before starting any cleaning work. - Page 10 transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system. The unit and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste.
